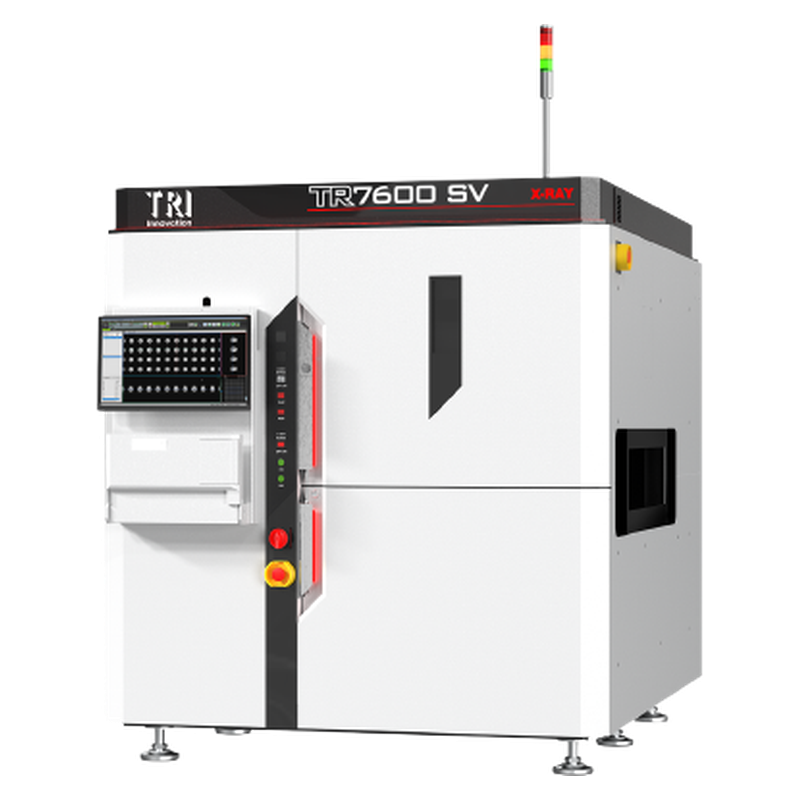

OverviewTRI TR7600 SV 3D Automated X-ray Inspection System
The TR7600 SV is a line-scan 3D AXI system for hidden solder-joint and component inspection. Define the target defects, X-ray resolution and board envelope before testing a particular machine and its installed software.
Manufacturer-published model data
TRI TR7600 SV Technical Specifications
| Imaging | Three or five ultra-high-speed line-scan CCD units; X-ray source 60–130 kV and published imaging resolution 7–25 µm, according to configuration. |
|---|---|
| Inspection modes | 2D, 2.5D and 3D slicing; planar CT is optional. |
| TR7600 SV board size | Up to 950 × 520 mm; do not confuse this with the larger TR7600LL SV variant. |
| PCB limits | Thickness 0.4–7 mm and weight up to 12 kg in TRI's published table. |
| Published defect scope | Includes insufficient/excess solder, bridges, opens, solder balls, voids and lifted leads; actual detection depends on program and sample. |
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used TRI TR7600 SV unit.
Key Features
Configuration Must Be Verified
The actual TRI TR7600 SV quote should identify the X-ray source, sensors, calibration, shielding, conveyor, inspection software, options, voltage and visible condition.
