Inline projection/2.5D platform
TR7600F2D Plus
- Board
- Up to 900 × 520 mm
Home / TRI Equipment / TRI TR7600F2D Series
Model guide · unit evidence required
OverviewTRI TR7600F2D Series Inline 2.5D X-ray Inspection
The TRI TR7600F2D Series covers inline X-ray inspection with Plus and long-board QL configurations, compared together rather than counted as separate suffix pages. Choose Plus or QL using the populated board and defect visibility; a 2.5D projection system is not automatically a CT-equipped F3D.
One family · configuration choices
Compare TR7600F2D Series versions
Inspecting solder and assembly regions that optical cameras cannot directly view; choose resolution and board transport for the actual assembly. Select by the actual board envelope, optical configuration and installation space—not the suffix alone.
Long-board configuration
TR7600F2D QL
- Board
- Up to 2100 × 510 mm
- Resolution
- 5–30 micrometres
What the versions share
- Process
- Inline 2.5D X-ray Inspection
- Purchase boundary
- Identify the actual version, options and application trial; no stock is asserted.

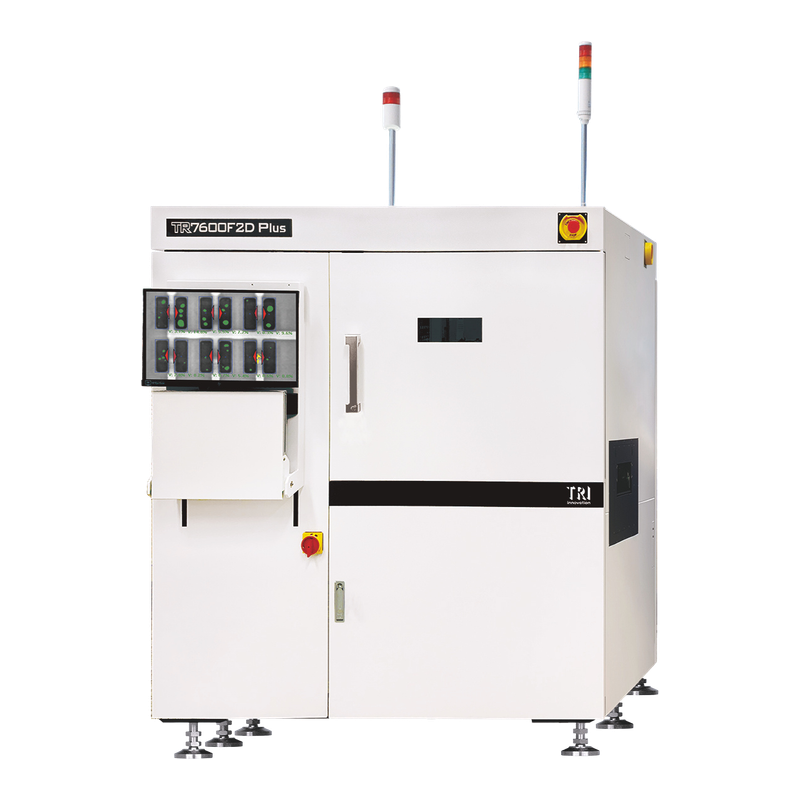

Manufacturer model descriptions checked 4 October 2026; limits and options stay assigned to their stated version. Figures describe standard model configurations, not stock or an offered unit. Dimensions are listed in the source order and exclude the tower light where stated. The representative TR7600F2D-Plus image does not prove another version or the condition of an offered unit. Request nameplate, configuration and board-trial evidence before selection.
Manufacturer-published model data
TRI TR7600F2D Series Technical Specifications
| Plus process | 2.5D inline AXI described by TRI |
|---|---|
| Plus resolution reference | 5 micrometres |
| Plus board envelope | Up to 900 × 520 mm in the product description |
| Ql board envelope | Up to 2100 × 510 mm; distinct long-board configuration |
| Ql resolution range | 5–30 micrometres, configuration dependent |
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used TRI TR7600F2D Series unit.
Key Features
Configuration Must Be Verified
The offer must identify Exact Plus/QL transport, detector, X-ray source, resolution and licensed inspection functions; Known hidden-joint defects, full coverage/cycle test, service and responsible radiation-safety documentation.
Buyer decision guide
When TRI TR7600F2D Series Makes Sense — and When It May Not
TRI TR7600F2D Series selection should begin with production requirements and evidence, not with a model name alone.
Application qualification
TRI TR7600F2D Series Acceptance Plan
Use overlap-heavy assemblies in the trial
Supply TR7600F2D samples with the real top/bottom population, shields and thermal pads. Identify the hidden joints to inspect and independent evidence of their condition. Review projection overlap and missed defects, not only image sharpness. The F2D label does not establish computed-tomography capability or coverage of every concealed joint.
Long-board transport is a configuration decision
Compare Plus and QL using the loaded panel outline, centre of gravity, underside support and available floor space. Ask for a complete entry-to-exit sequence and the actual quoted conveyor arrangement. The QL long-board headline must not be applied to a photographed Plus; keep detector resolution, magnification and board coverage as separate questions.
Budget support around the imaging chain
Request tube and detector identification, service history, calibration files and the software handover scope. Let the qualified responsible parties validate radiation-safety and installation requirements. Repeat the labelled test at the agreed operating settings. A clear reference image and a mainland sourcing lead are not evidence of tube life or delivered unit condition.
Typical Applications
Typical Applications for TRI TR7600F2D Series
TRI TR7600F2D Series should be evaluated against the buyer’s inspecting solder and assembly regions that optical cameras cannot directly view; choose resolution and board transport for the actual assembly. The final application fit depends on the evidence for the specific unit.
Before quotation
Three TRI TR7600F2D Series Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
Which plus process requirement must the proposed TRI TR7600F2D Series demonstrate?
TRI TR7600F2D Series buyers should confirm this with actual-machine evidence before quotation.
2
What is included in this TRI TR7600F2D Series offer: exact plus/ql transport, detector, x-ray source, resolution and licensed inspection functions?
TRI TR7600F2D Series buyers should confirm this with actual-machine evidence before quotation.
3
Can the TRI TR7600F2D Series acceptance run document known hidden-joint defects, full coverage/cycle test, service and responsible radiation-safety documentation?
TRI TR7600F2D Series buyers should confirm this with actual-machine evidence before quotation.
Running video confirmation
TRI TR7600F2D Series Running Video Review
Before shipment, review the relevant power-on, movement, operating state and visible condition for the specific offered unit.
Request an operating sequence of the offered TRI TR7600F2D Series. This model-image control requests evidence; it does not play a recorded video.
- Power-on and visible operating-state confirmation
- Inspecting solder and assembly regions that optical cameras cannot directly view; choose resolution and board transport for the actual assembly.
- Unit-specific condition evidence before export packing
Used-machine inspection
Inspection and Export Preparation for an Actual TRI TR7600F2D Series
- Nameplate and configurationModel, serial, year, voltage and installed options.
- Machine configurationMechanical, transport, sensing, camera, software and motion condition relevant to the quoted TRI TR7600F2D Series.
- Transport and softwareConveyor, sensors, program and line-interface evidence where applicable.
- Running and packing proofPower-on evidence, visible operation and export packing records.
Spare Parts
TRI TR7600F2D Series Spare Parts Scope
Request a unit-specific TRI TR7600F2D Series list for X-ray source/detector service items, transport tooling, calibration samples and licensed analysis software. Availability is not claimed on this review page.
Quotation checklist
Provide target assembly, process requirements, plus process, installed configuration and destination, required accessories and desired inspection evidence for the proposed TRI TR7600F2D Series.
FAQ
Common questions for overseas buyers evaluating a TRI TR7600F2D Series.
01Application
Which production task suits TRI TR7600F2D Series?
Inspecting solder and assembly regions that optical cameras cannot directly view; choose resolution and board transport for the actual assembly. Choose Plus or QL using the populated board and defect visibility; a 2.5D projection system is not automatically a CT-equipped F3D.
02Configuration
What should a buyer confirm for TRI TR7600F2D Series?
Exact Plus/QL transport, detector, X-ray source, resolution and licensed inspection functions. Request the exact nameplate and option list.
03Unit evidence
Does this TRI TR7600F2D Series illustration prove stock?
The TRI TR7600F2D Series illustration is model-reference imagery, not a dated stock photograph. Serial, location, condition, price and running evidence require separate confirmation.
Export packing proof
Export Packing and Container Loading
The V3 scrolling proof gallery is retained. It describes LCSMT export preparation, not the condition of a particular TRI TR7600F2D Series unit.
Send Your TRI TR7600F2D Series Production Requirement
Share target assembly, process requirements, plus process, installed configuration and destination and inspection expectations. LCSMT can review whether an actual TRI TR7600F2D Series configuration is a practical match.
