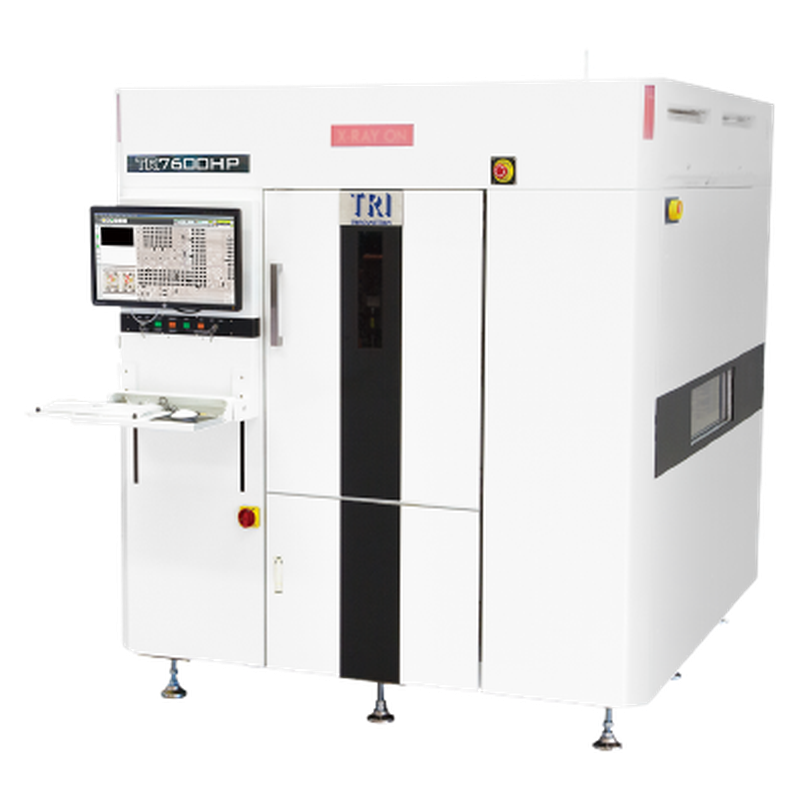

OverviewTRI TR7600HP High-Power 3D CT AXI System
The TR7600HP is TRI's high-power CT AXI platform for power modules, IGBTs, MOSFETs and SiC inverter assemblies. Validate the real X-ray source, detector, software and target defect program on representative hardware before relying on a quoted unit.
Manufacturer-published model data
TRI TR7600HP Technical Specifications
| Inspection role | High-power 3D CT AXI aimed at power-module and inverter assemblies. |
|---|---|
| Production imaging | TRI lists a 7–30 µm production resolution range; check the installed setting and throughput trade-off. |
| Board envelope | Published board size up to 950 × 530 mm and board weight up to 12 kg. |
| Source | TRI's specification table lists an X-ray source range of 40–180 kV; confirm the actual tube and service state. |
| Connectivity | TRI lists SMEMA, SECS/GEM, IPC-CFX-2591 and IPC-HERMES-9852 standards; installed implementation must be demonstrated. |
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used TRI TR7600HP unit.
Key Features
Configuration Must Be Verified
The actual TRI TR7600HP quote should identify the source and detector, shielding/interlocks, calibration, CT software, conveyor, interfaces, voltage and visible condition.
Buyer decision guide
When TRI TR7600HP Makes Sense — and When It May Not
TRI TR7600HP selection should begin with production requirements and evidence, not with a model name alone.
Typical Applications
Typical Applications for TRI TR7600HP
TRI TR7600HP should be evaluated against the buyer’s power-module dimensions, material stack, target void/hidden-joint defects, radiation compliance and line integration. The final application fit depends on the evidence for the specific unit.
Before quotation
Three TRI TR7600HP Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
Which module, heatsink and solder/void defects must be detected in representative samples?
TRI TR7600HP buyers should confirm this with actual-machine evidence before quotation.
2
Which X-ray source, detector, resolution, CT options and software licenses are installed?
TRI TR7600HP buyers should confirm this with actual-machine evidence before quotation.
3
Can the unit demonstrate calibration, interlocks, scan reconstruction and defect review on the target assembly?
TRI TR7600HP buyers should confirm this with actual-machine evidence before quotation.
Running video confirmation
TRI TR7600HP Running Video Review
Before shipment, review the relevant power-on, movement, operating state and visible condition for the specific offered unit.
This review page does not present a reference clip as proof of the actual machine. A reviewed unit-specific recording is required before it can be attached here.
- Power-on and visible operating-state confirmation
- safety interlocks, board transfer, X-ray scan, reconstruction and defect disposition
- Unit-specific condition evidence before export packing
Running video pendingA reviewed local video is not yet attached. Open this panel for unit-specific proof.
Used-machine inspection
Inspection and Export Preparation for an Actual TRI TR7600HP
- Nameplate and configurationModel, serial, year, voltage and installed options.
- Machine configurationMechanical, transport, sensing, camera, software and motion condition relevant to the quoted TRI TR7600HP.
- Transport and softwareConveyor, sensors, program and line-interface evidence where applicable.
- Running and packing proofPower-on evidence, visible operation and export packing records.
Spare Parts
TRI TR7600HP Spare Parts Scope
Request a unit-specific TRI TR7600HP list for X-ray source, flat-panel detector, motion stages, conveyor, computer and service items. Availability is not claimed on this review page.
Quotation checklist
Provide module/board size, defect targets, required resolution and CT scope, safety documentation and destination, required accessories and desired inspection evidence for the proposed TRI TR7600HP.
FAQ
Common questions for overseas buyers evaluating a TRI TR7600HP.
01Resolution
Does 7 µm prove every buried defect can be found?
No. Detection depends on material stack, program, contrast, reconstruction and the chosen inspection criteria.
02CT
Is planar CT present on every TR7600HP?
TRI marks planar CT optional in its detailed table; inspect the offered configuration.
03Safety
What should be reviewed on a used X-ray system?
Check source history, interlocks, shielding, calibration, permits and applicable local regulatory requirements.
Export packing proof
Export Packing and Container Loading
The V3 scrolling proof gallery is retained. It describes LCSMT export preparation, not the condition of a particular TRI TR7600HP unit.
Send Your TRI TR7600HP Production Requirement
Share module/board size, defect targets, required resolution and CT scope, safety documentation and destination and inspection expectations. LCSMT can review whether an actual TRI TR7600HP configuration is a practical match.
