Standard-board version
TR7700 SIII Ultra
- Board
- 510 × 460 mm
- Boundary
- Confirm 3D configuration
Home / TRI Equipment / TRI TR7700 SIII Ultra
Model guide · unit evidence required
OverviewTRI TR7700 SIII Ultra High-speed Optical Inspection
TRI TR7700 SIII Ultra combines dynamic imaging with selectable camera and resolution configurations. Standard, M and dual-lane board-handling versions are compared on one page. Choose camera, resolution and board handling together. The fastest stated rate and finest stated resolution are different configurations, not simultaneous guarantees.
One family · configuration choices
Compare TR7700 SIII Ultra versions
Inline optical inspection of visible components and solder features, with 3D laser measurement only on the documented 3D configuration. Select by the actual board envelope, optical configuration and installation space—not the suffix alone.
Large-board version
TR7700M SIII Ultra
- Board
- 660 × 690 mm
- Boundary
- Do not transfer the M envelope to standard Ultra
Dual-lane version
TR7700 SIII Ultra 3D DL
- Board
- 510 × 310 mm × 2; 510 × 590 mm × 1
- Boundary
- Identify the actual lane arrangement
What the versions share
- Process
- High-speed Optical Inspection
- Purchase boundary
- Identify the version, installed options and application trial; no stock is asserted.

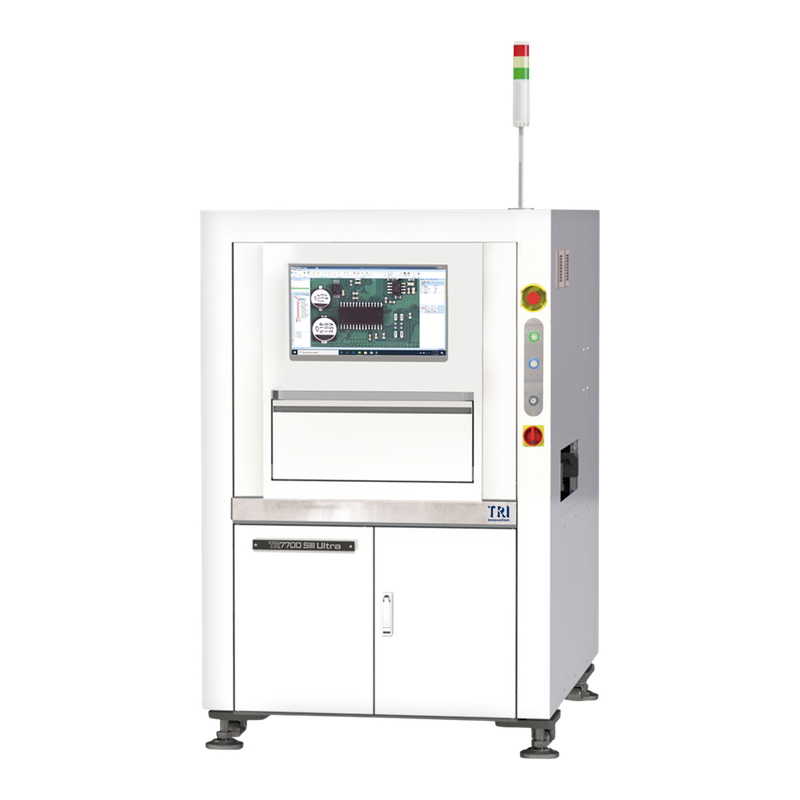

Current manufacturer model descriptions checked 5 October 2026; numbers remain version-specific. Figures describe standard model configurations, not stock or an offered unit. Dimensions are listed in the source order and exclude the tower light where stated. The representative TR7700-SIII-Ultra image is not proof of another version or an offered unit’s condition. Request nameplate, configuration and board-trial evidence before selection.
Manufacturer-published model data
TRI TR7700 SIII Ultra Technical Specifications
| Top camera choices | 4 MP, 9 MP or 12 MP colour camera |
|---|---|
| Factory imaging resolutions | 5.5, 6, 10 or 15 micrometres |
| Published speed examples | 4 MP at 15 micrometres: up to 120 cm²/s; 12 MP at 5.5 micrometres: up to 32 cm²/s |
| Standard ultra board envelope | 510 × 460 mm |
| Board thickness | 0.6–5 mm |
| 3d boundary | Laser sensor standard for 3D models; do not infer it on every unit |
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used TRI TR7700 SIII Ultra unit.
Key Features
Configuration Must Be Verified
The offer must identify Standard/M/DL nameplate, camera, factory resolution, 3D sensor, conveyor, supports and software options; Representative defect program, repeatability, false-call review, lane transfer, result export and calibration evidence.
Buyer decision guide
When TRI TR7700 SIII Ultra Makes Sense — and When It May Not
TRI TR7700 SIII Ultra selection should begin with production requirements and evidence, not with a model name alone.
Application qualification
TRI TR7700 SIII Ultra Acceptance Plan
Compare like optical settings
A TR7700 SIII Ultra throughput comparison must identify camera, resolution, inspected area and the actual program. The 120 cm²/s claim belongs to a 4 MP, 15 micrometre setting; it must not be combined with the finer 12 MP example. Ask for cycle time on the required panel and the retained defect-review results. Confirm the laser sensor and its calibration if a 3D configuration is part of the offer.
Match the handling version
For the standard, M and DL versions, compare the specific board-envelope columns rather than the largest number anywhere in the family table. On DL, establish whether the production plan uses two lanes or the stated single-lane mode. Witness transfer and board support with the loaded assembly and its underside clearance. Optional board weight and top clearance are not baseline specifications for an unidentified unit.
Retain an inspection baseline
Request the current calibration record, known-defect samples, repeat measurements and the actual review decisions from an agreed acceptance program. Ask which factory protocols and feedback interfaces are installed and licensed. A dealer’s assertion that a machine is tested or in stock is not evidence of its present condition. Obtain dated serial, location, configuration and program-recovery records before treating this China channel as a purchase-ready machine.
Typical Applications
Typical Applications for TRI TR7700 SIII Ultra
TRI TR7700 SIII Ultra should be evaluated against the buyer’s inline optical inspection of visible components and solder features, with 3d laser measurement only on the documented 3d configuration. The final application fit depends on the evidence for the specific unit.
Before quotation
Three TRI TR7700 SIII Ultra Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
Which top camera choices requirement must the proposed TRI TR7700 SIII Ultra demonstrate?
TRI TR7700 SIII Ultra buyers should confirm this with actual-machine evidence before quotation.
2
What is included in this TRI TR7700 SIII Ultra offer: standard/m/dl nameplate, camera, factory resolution, 3d sensor, conveyor, supports and software options?
TRI TR7700 SIII Ultra buyers should confirm this with actual-machine evidence before quotation.
3
Can the TRI TR7700 SIII Ultra acceptance run document representative defect program, repeatability, false-call review, lane transfer, result export and calibration evidence?
TRI TR7700 SIII Ultra buyers should confirm this with actual-machine evidence before quotation.
Running video confirmation
TRI TR7700 SIII Ultra Running Video Review
Before shipment, review the relevant power-on, movement, operating state and visible condition for the specific offered unit.
Request a dated operating sequence of the offered TRI TR7700 SIII Ultra. The model-image control requests evidence, not playback of a recorded video.
- Power-on and visible operating-state confirmation
- Inline optical inspection of visible components and solder features, with 3D laser measurement only on the documented 3D configuration.
- Unit-specific condition evidence before export packing
Used-machine inspection
Inspection and Export Preparation for an Actual TRI TR7700 SIII Ultra
- Nameplate and configurationModel, serial, year, voltage and installed options.
- Machine configurationMechanical, transport, sensing, camera, software and motion condition relevant to the quoted TRI TR7700 SIII Ultra.
- Transport and softwareConveyor, sensors, program and line-interface evidence where applicable.
- Running and packing proofPower-on evidence, visible operation and export packing records.
Spare Parts
TRI TR7700 SIII Ultra Spare Parts Scope
Request a unit-specific TRI TR7700 SIII Ultra list for camera and lighting service items, laser/calibration references where fitted, board supports and licensed inspection software. Availability is not claimed on this review page.
Quotation checklist
Provide target assembly, process requirements, top camera choices, installed configuration and destination, required accessories and desired inspection evidence for the proposed TRI TR7700 SIII Ultra.
FAQ
Common questions for overseas buyers evaluating a TRI TR7700 SIII Ultra.
01Application
Which production task suits TRI TR7700 SIII Ultra?
Inline optical inspection of visible components and solder features, with 3D laser measurement only on the documented 3D configuration. Choose camera, resolution and board handling together. The fastest stated rate and finest stated resolution are different configurations, not simultaneous guarantees.
02Configuration
What should a buyer confirm for TRI TR7700 SIII Ultra?
Standard/M/DL nameplate, camera, factory resolution, 3D sensor, conveyor, supports and software options. Request the exact nameplate and option list.
03Unit evidence
Does this TRI TR7700 SIII Ultra illustration prove stock?
The TRI TR7700 SIII Ultra illustration is model-reference imagery, not a dated stock photograph. Serial, location, condition, price and running evidence require separate confirmation.
Export packing proof
Export Packing and Container Loading
The V3 scrolling proof gallery is retained. It describes LCSMT export preparation, not the condition of a particular TRI TR7700 SIII Ultra unit.
Send Your TRI TR7700 SIII Ultra Production Requirement
Share target assembly, process requirements, top camera choices, installed configuration and destination and inspection expectations. LCSMT can review whether an actual TRI TR7700 SIII Ultra configuration is a practical match.
