OverviewTR7700L SIII Plus High-Precision Inline Automated Optical Inspection System

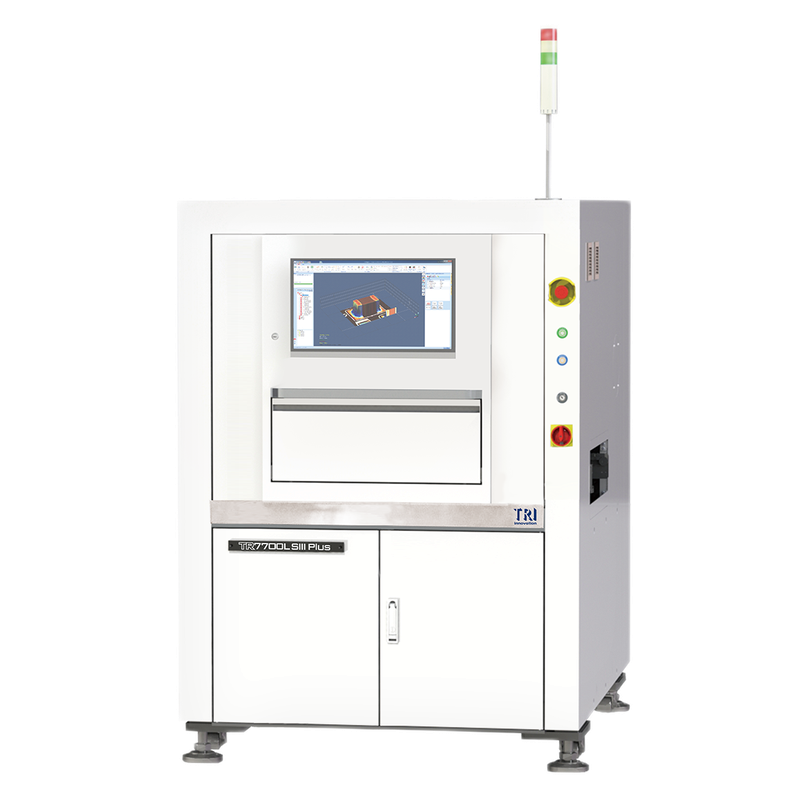

TRI positions the TR7700L SIII Plus as a high-precision inline AOI with dynamic imaging, multi-phase lighting, intelligent board loading and offline programming support. This local review keeps the published 2D and optional 3D figures separate from the installed configuration and condition of a particular machine.
Manufacturer-published model data
TR7700L SIII Plus Technical Specifications
| Imaging architecture | High-speed dynamic imaging with a 4 MP or 12 MP top color camera and multi-phase RGB+W LED lighting. |
|---|---|
| Factory-set resolution | 10 micrometres with the 4 MP configuration or 5.5 micrometres with the 12 MP configuration. |
| Published 2D speed | 60 cm2/s at 10 micrometres or 24 cm2/s at 5.5 micrometres under TRI conditions. |
| 3D status | Single- or dual-laser 3D is described as an optional upgrade; confirm the installed hardware before claiming 3D capability. |
| Published board handling | 50 x 50 mm to 765 x 610 mm, 0.6 to 5 mm thickness and 3 kg standard board weight, with heavier options listed. |
| Published dimensions | 1,365 x 1,720 x 1,710 mm; published weight is 1,005 kg. |
Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used TR7700L SIII Plus unit.
Key Features
Configuration Must Be Verified
The actual TR7700L SIII Plus quote should identify the installed heads, feeders, nozzles, software, voltage, accessories and visible condition.
Buyer decision guide
When TR7700L SIII Plus Makes Sense — and When It May Not
TR7700L SIII Plus selection should begin with production requirements and evidence, not with a model name alone.
Typical Applications
Typical Applications for TR7700L SIII Plus
TR7700L SIII Plus should be evaluated against the buyer’s board dimensions, component mix, feeder plan, changeover profile and required line integration. The final application fit depends on the evidence for the specific unit.
Before quotation
Three TR7700L SIII Plus Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
Which board sizes, component heights and defect criteria must the TR7700L SIII Plus cover?
TR7700L SIII Plus buyers should confirm this with actual-machine evidence before quotation.
2
Is the offered machine the 4 MP or 12 MP configuration, and are single- or dual-laser 3D options installed?
TR7700L SIII Plus buyers should confirm this with actual-machine evidence before quotation.
3
Can the seller demonstrate calibration, board loading, program transfer, false-call review and representative inspection results?
TR7700L SIII Plus buyers should confirm this with actual-machine evidence before quotation.
Running video confirmation
TR7700L SIII Plus Running Video Review
Before shipment, review the relevant power-on, movement, operating state and visible condition for the specific offered unit.
This review page does not present a reference clip as proof of the actual machine. A reviewed unit-specific recording is required before it can be attached here.
- Power-on and visible operating-state confirmation
- Relevant transport, motion or inspection sequence
- Unit-specific condition evidence before export packing
Running video pendingA reviewed local video is not yet attached. Open this panel for unit-specific proof.
Used-machine inspection
Inspection and Export Preparation for an Actual TR7700L SIII Plus
- Nameplate and configurationModel, serial, year, voltage and installed options.
- Machine configurationMechanical, transport, sensing, camera, software and motion condition relevant to the quoted TR7700L SIII Plus.
- Transport and softwareConveyor, sensors, program and line-interface evidence where applicable.
- Running and packing proofPower-on evidence, visible operation and export packing records.
Spare Parts
TR7700L SIII Plus Spare Parts Scope
Request a unit-specific TR7700L SIII Plus list for heads, nozzles, feeders, cameras, filters, belts and recommended maintenance items. Availability is not claimed on this review page.
Quotation checklist
Provide PCB dimensions, component range, throughput target, feeder package, voltage, destination, required accessories and desired inspection evidence for the proposed TR7700L SIII Plus.
FAQ
Common questions for overseas buyers evaluating a TR7700L SIII Plus.
01Camera options
Do all TR7700L SIII Plus systems use the same resolution?
No. TRI lists 4 MP at 10 micrometres and 12 MP at 5.5 micrometres as different factory configurations.
023D capability
Is 3D standard?
No. TRI describes single- or dual-laser 3D as optional, so the exact unit must be inspected.
03Throughput
Does the published imaging speed guarantee line output?
No. Board layout, inspection windows, criteria, loading and installed optics affect practical cycle time.
Export packing proof
Export Packing and Container Loading
The V3 scrolling proof gallery is retained. It describes LCSMT export preparation, not the condition of a particular TR7700L SIII Plus unit.
Send Your TR7700L SIII Plus Production Requirement
Share PCB size, component range, required throughput, feeder strategy, voltage, destination and inspection expectations. LCSMT can review whether an actual TR7700L SIII Plus configuration is a practical match.
