Top-view component and joint AOI
TR7700Q SII
- Resolution
- 9.8 / 10 / 12 / 15 µm factory configurations
- Board
- Standard up to 510 × 460 mm
Home / TRI Equipment / TRI TR7700Q Family
Model guide · unit evidence required
OverviewTRI TR7700Q Family 3D Optical Inspection Family
The TR7700Q comparison places Q SII, QC SII, QH SII, QB SII, QM SII and QE in one decision guide. Choose by inspection role: QB is bottom-view and QM targets packaging. The separate top-and-bottom TB system is outside this combined page.
One family · configuration choices
Compare TR7700Q Family versions
3D optical inspection of components and solder joints, with separate bottom-view and semiconductor-focused choices. Select by the actual board envelope, optical configuration and installation space—not the suffix alone.
Top-view essential inspection
TR7700QC SII
- Resolution
- 10 / 12 / 15 µm factory configurations
- Board
- Standard up to 510 × 460 mm
Ultra-high-speed top-view AOI
TR7700QH SII
- Resolution
- 12 / 15 / 18 µm subject to camera/model
- Board
- Standard up to 510 × 510 mm
Bottom-view THT/DIP inspection
TR7700QB SII
- Resolution
- 15 µm
- Board
- Up to 510 × 510 mm
Semiconductor and packaging inspection
TR7700QM SII
- Resolution
- 5.5 µm
- Board
- Up to 400 × 330 mm
2D + 3D reference version pictured
TR7700QE
- Resolution
- 10 / 15 µm factory settings
- Board
- Standard up to 510 × 460 mm
What the versions share
- Selection
- Document the exact suffix and installed options.
- Evidence
- Model reference only; actual unit and process trial required.

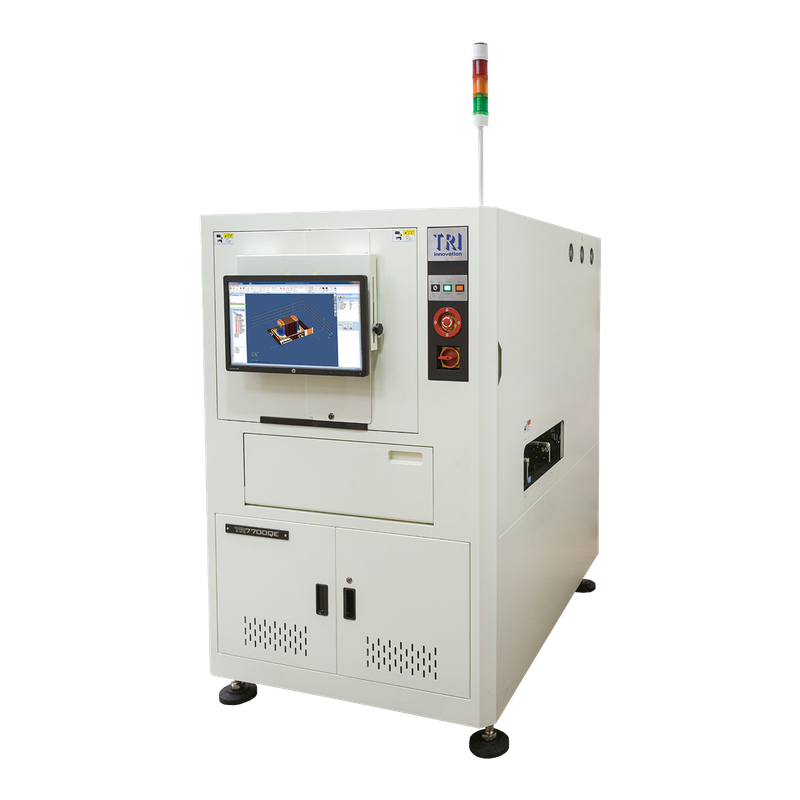

Based on the individually named manufacturer product pages. Figures describe standard model configurations, not stock or an offered unit. Dimensions are listed in the source order and exclude the tower light where stated. TR7700QE is the user-selected representative image; it does not depict every SII configuration. Request nameplate, configuration and board-trial evidence before selection.
Manufacturer-published model data
TRI TR7700Q Family Technical Specifications
| Q / qc sii | Top-view 3D inspection; up to 57 cm²/s at the specified 15 µm condition |
|---|---|
| Qh sii | Up to 80 cm²/s at the stated 21 MP / 15 µm condition |
| Qb sii | Bottom-view THT/DIP inspection; 15 µm, up to 57 cm²/s |
| Qm sii | Semiconductor/packaging inspection; 5.5 µm and up to 7.7 cm²/s |
| Qe | 12 MP, 10/15 µm factory settings; optional Z control required for the 40 mm range |
| Photo scope | The user-selected TR7700QE image is a representative family illustration, not an exact photo of each SII variant |
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used TRI TR7700Q Family unit.
Key Features
Configuration Must Be Verified
The TRI TR7700Q Family offer must document Exact suffix, inspection side, camera/resolution, Z control and conveyor configuration; Gauge repeatability, known-defect coverage, false-call review and interface/license scope.
Buyer decision guide
When TRI TR7700Q Family Makes Sense — and When It May Not
TRI TR7700Q Family selection should begin with production requirements and evidence, not with a model name alone.
Application qualification
TRI TR7700Q Family Acceptance Plan
Choose the side and scale first
The TR7700Q family comparison starts with inspection side and feature size. A QB bottom-view through-hole job is not interchangeable with a top-view Q SII assembly or a fine-feature QM packaging job. Match the defect set and component geometry to the recorded variant before considering its published imaging speed.
Qualify the program, not only the camera
For a TR7700Q offer, request a challenge-board run covering accepted joints, missing parts and the difficult defects. Review repeatability and false calls under the proposed resolution. Catalogue rates depend on imaging conditions and component distribution; record those settings when comparing cycle results.
Typical Applications
Typical Applications for TRI TR7700Q Family
3D optical inspection of components and solder joints, with separate bottom-view and semiconductor-focused choices. Choose by inspection role: QB is bottom-view and QM targets packaging. The separate top-and-bottom TB system is outside this combined page.
Before quotation
Three TRI TR7700Q Family Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
Which q / qc sii requirement must the proposed TRI TR7700Q Family demonstrate?
TRI TR7700Q Family buyers should confirm this with actual-machine evidence before quotation.
2
What is included in this TRI TR7700Q Family offer: exact suffix, inspection side, camera/resolution, z control and conveyor configuration?
TRI TR7700Q Family buyers should confirm this with actual-machine evidence before quotation.
3
Can the TRI TR7700Q Family acceptance run document gauge repeatability, known-defect coverage, false-call review and interface/license scope?
TRI TR7700Q Family buyers should confirm this with actual-machine evidence before quotation.
Running video confirmation
TRI TR7700Q Family Running Video Review
Before shipment, review the relevant power-on, movement, operating state and visible condition for the specific offered unit.
Request a dated operating sequence for the offered TRI TR7700Q Family. The preview is a model illustration; the orange control requests evidence, not playback.
- Power-on and visible operating-state confirmation
- 3D optical inspection of components and solder joints, with separate bottom-view and semiconductor-focused choices.
- Unit-specific condition evidence before export packing
Used-machine inspection
Inspection and Export Preparation for an Actual TRI TR7700Q Family
- Nameplate and configurationModel, serial, year, voltage and installed options.
- Machine configurationMechanical, transport, sensing, camera, software and motion condition relevant to the quoted TRI TR7700Q Family.
- Transport and softwareConveyor, sensors, program and line-interface evidence where applicable.
- Running and packing proofPower-on evidence, visible operation and export packing records.
Spare Parts
TRI TR7700Q Family Spare Parts Scope
Request a unit-specific TRI TR7700Q Family list for camera/projector service parts, conveyor components, calibration targets and compatible computer hardware. Availability is not claimed on this review page.
Quotation checklist
Provide target assembly, process requirements, q / qc sii, installed configuration and destination, required accessories and desired inspection evidence for the proposed TRI TR7700Q Family.
FAQ
Common questions for overseas buyers evaluating a TRI TR7700Q Family.
01Application
Which production task suits TRI TR7700Q Family?
3D optical inspection of components and solder joints, with separate bottom-view and semiconductor-focused choices. Choose by inspection role: QB is bottom-view and QM targets packaging. The separate top-and-bottom TB system is outside this combined page.
02Configuration
What should a buyer confirm for TRI TR7700Q Family?
Exact suffix, inspection side, camera/resolution, Z control and conveyor configuration. Request the exact nameplate and option list.
03Unit evidence
Does this TRI TR7700Q Family illustration prove stock?
The TRI TR7700Q Family illustration is model-reference imagery, not a dated stock photograph. Serial, location, condition, price and running evidence require separate confirmation.
Export packing proof
Export Packing and Container Loading
The V3 scrolling proof gallery is retained. It describes LCSMT export preparation, not the condition of a particular TRI TR7700Q Family unit.
Send Your TRI TR7700Q Family Production Requirement
Share target assembly, process requirements, q / qc sii, installed configuration and destination and inspection expectations. LCSMT can review whether an actual TRI TR7700Q Family configuration is a practical match.
