OverviewTR7710 Inline Automated Optical Inspection System

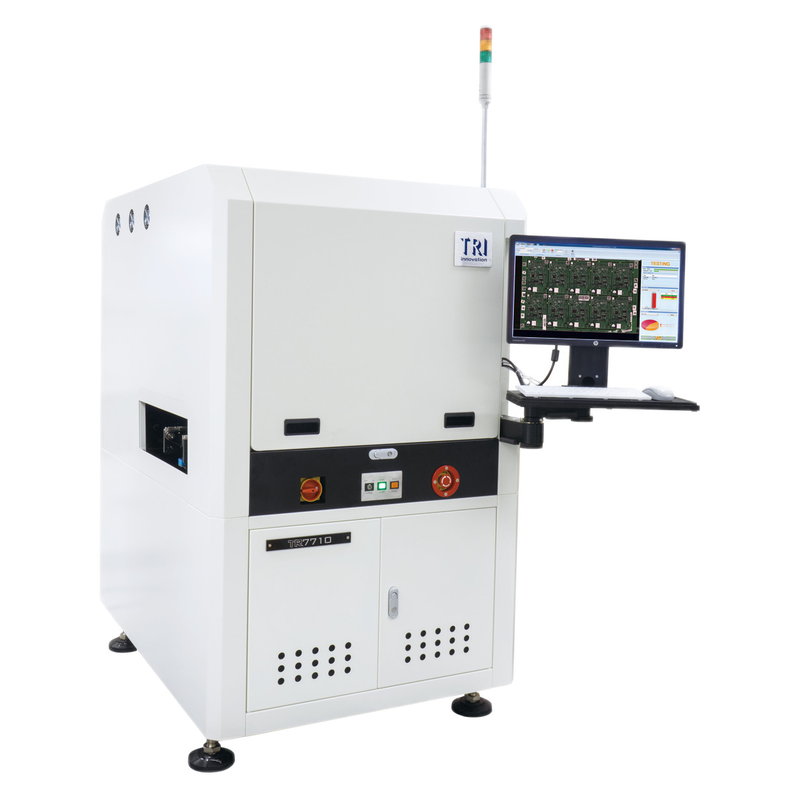

TRI describes the TR7710 as a customizable inline AOI with a 6.5 MP color camera, multi-phase lighting and stop-and-go imaging. This local review separates those model-level facts from the camera setting, software, condition and demonstrated defect coverage of any offered machine.
Manufacturer-published model data
TR7710 Technical Specifications
| Imaging architecture | Stop-and-go 2D imaging with a 6.5 MP top color camera and multi-phase RGB+W LED lighting. |
|---|---|
| Factory-set resolution | 10 or 12.5 micrometres; TRI publishes 27 or 42 cm2/s imaging speed for those settings respectively. |
| Published board handling | TR7710: up to 510 x 460 mm, 0.6 to 5 mm thickness and 3 kg board weight. |
| Clearance | 25 mm top, 40 mm bottom with 100 mm optional, and 3 mm edge clearance with 5 mm optional. |
| Inspection scope | Published checks include presence, polarity, rotation, shift, marking, solder amount, bridging, through-hole pins, lifted leads and contamination. |
| Published dimensions | 1,000 x 1,400 x 1,650 mm excluding the signal tower; published weight is 600 kg. |
Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used TR7710 unit.
Key Features
Configuration Must Be Verified
The actual TR7710 quote should identify the installed heads, feeders, nozzles, software, voltage, accessories and visible condition.
Buyer decision guide
When TR7710 Makes Sense — and When It May Not
TR7710 selection should begin with production requirements and evidence, not with a model name alone.
Typical Applications
Typical Applications for TR7710
TR7710 should be evaluated against the buyer’s board dimensions, component mix, feeder plan, changeover profile and required line integration. The final application fit depends on the evidence for the specific unit.
Before quotation
Three TR7710 Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
Which SMD, THT, solder and cosmetic defect modes must the TR7710 inspect?
TR7710 buyers should confirm this with actual-machine evidence before quotation.
2
Which optical resolution, clearance, conveyor, software and data options are installed?
TR7710 buyers should confirm this with actual-machine evidence before quotation.
3
Can the offered unit demonstrate calibration, false-call review and inspection on a representative board?
TR7710 buyers should confirm this with actual-machine evidence before quotation.
