Combined Loader and Destacker
ALD-250M
- Maximum PCB (L x W)
- 330 x 250 mm
- Machine dimensions (L x W x H)
- 1530 x 850 x 1650 mm
- Magazine dimensions (L x W x H)
- 355 x 320 x 563 mm
Home / Combined magazine and bare-board input / Vanstron ALD
Model guide · unit evidence required
OverviewVanstron ALD Combined Loader and Destacker
Combine a single-magazine PCB loader with a separate bare-board destacking section in one line-input system. Compare ALD board-contact mechanisms and selectable modes with the actual board. The website and 2024 brochure differ on chassis dimensions, large-version suffixes and bottom clearance; keep the editions separate.
One family · configuration choices
Compare ALD versions
Combine a single-magazine PCB loader with a separate bare-board destacking section in one line-input system. Select by the actual board envelope, magazine arrangement and installation space—not the suffix alone.
Combined Loader and Destacker
ALD-330L
- Maximum PCB (L x W)
- 440 x 330 mm
- Machine dimensions (L x W x H)
- 1700 x 850 x 1650 mm
- Magazine dimensions (L x W x H)
- 460 x 400 x 563 mm
Combined Loader and Destacker
ALD-390LX
- Maximum PCB (L x W)
- 530 x 390 mm
- Machine dimensions (L x W x H)
- 1850 x 950 x 1650 mm
- Magazine dimensions (L x W x H)
- 535 x 460 x 570 mm
Combined Loader and Destacker
ALD-460XL
- Maximum PCB (L x W)
- 530 x 460 mm
- Machine dimensions (L x W x H)
- 1850 x 950 x 1650 mm
- Magazine dimensions (L x W x H)
- 535 x 530 x 570 mm
What the versions share
- Transfer
- 900 +/-50 mm reference; verify offered drawing
- Selection
- Board and magazine envelope, access and handoff

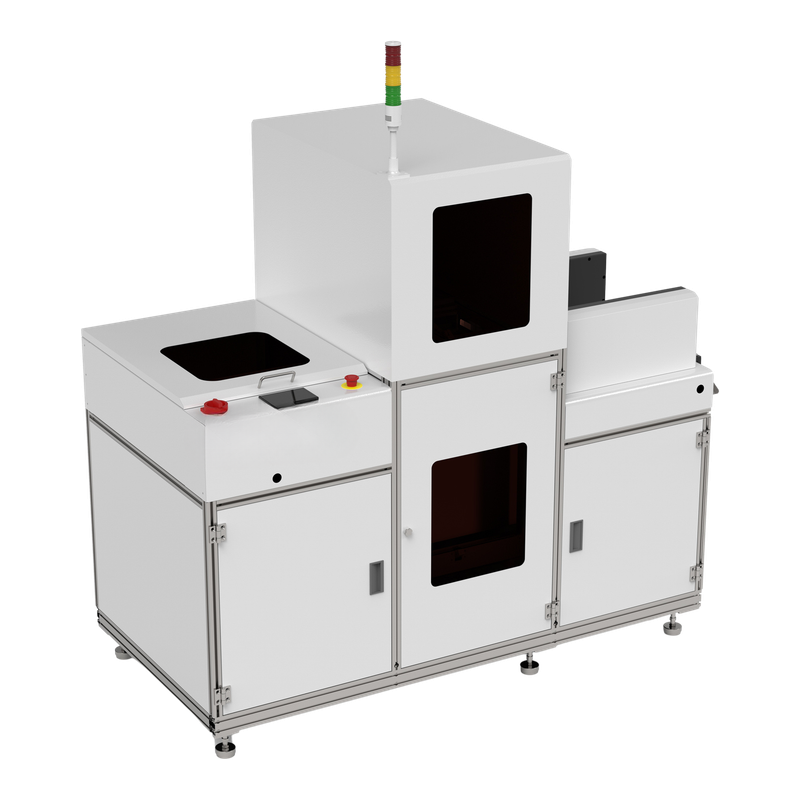

Version figures below are from the manufacturer website archived 2026-10-08. The 2024 brochure is separate corroboration; its differing suffixes, dimensions or clearance are not substituted. Figures describe standard model configurations, not stock or an offered unit. Dimensions are listed in the source order and exclude the tower light where stated. The main view illustrates the family; it does not identify every fitted version. Request nameplate, configuration and board-trial evidence before selection.
Manufacturer-published model data
Vanstron ALD Technical Specifications
| Reference family | ALD-250M, ALD-330L, ALD-390LX and ALD-460XL in the website table |
|---|---|
| Magazine arrangement | Single magazine |
| Bare-board thickness | 0.6-2.5 mm in the website reference |
| Transfer reference | 900 +/-50 mm; left to right; front fixed rail |
| Website component clearance | Top 50 mm and bottom 25 mm |
| Air supply | 4-6 bar reference |
| Interface and control | SMEMA; PLC; ESD flat belts |
| Electrical options | 220 V or 110 V single-phase, 50-60 Hz |
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used Vanstron ALD unit.
