Space-Saving Magazine Loader
ASL-250M
- Maximum PCB (L x W)
- 330 x 250 mm
- Machine dimensions (L x W x H)
- 1010 x 1470 x 1650 mm
- Magazine dimensions (L x W x H)
- 355 x 320 x 563 mm
Home / Space-saving PCB input / Vanstron ASL
Model guide · unit evidence required
OverviewVanstron ASL Space-Saving Magazine Loader
Load PCBs into the line from an L-shaped magazine arrangement intended to reduce line length. Compare installed footprint, magazine replacement access and neighboring rail planes. The website and 2024 brochure show different chassis dimensions and bottom clearance; the figures below retain the website edition.
One family · configuration choices
Compare ASL versions
Load PCBs into the line from an L-shaped magazine arrangement intended to reduce line length. Select by the actual board envelope, magazine arrangement and installation space—not the suffix alone.
Space-Saving Magazine Loader
ASL-330L
- Maximum PCB (L x W)
- 440 x 330 mm
- Machine dimensions (L x W x H)
- 1210 x 1700 x 1650 mm
- Magazine dimensions (L x W x H)
- 460 x 400 x 563 mm
Space-Saving Magazine Loader
ASL-390L
- Maximum PCB (L x W)
- 530 x 390 mm
- Machine dimensions (L x W x H)
- 1390 x 2110 x 1650 mm
- Magazine dimensions (L x W x H)
- 535 x 460 x 570 mm
Space-Saving Magazine Loader
ASL-460L
- Maximum PCB (L x W)
- 535 x 460 mm
- Machine dimensions (L x W x H)
- 1390 x 2110 x 1650 mm
- Magazine dimensions (L x W x H)
- 535 x 530 x 570 mm
What the versions share
- Transfer
- 900 +/-50 mm reference; verify offered drawing
- Selection
- Board and magazine envelope, access and handoff

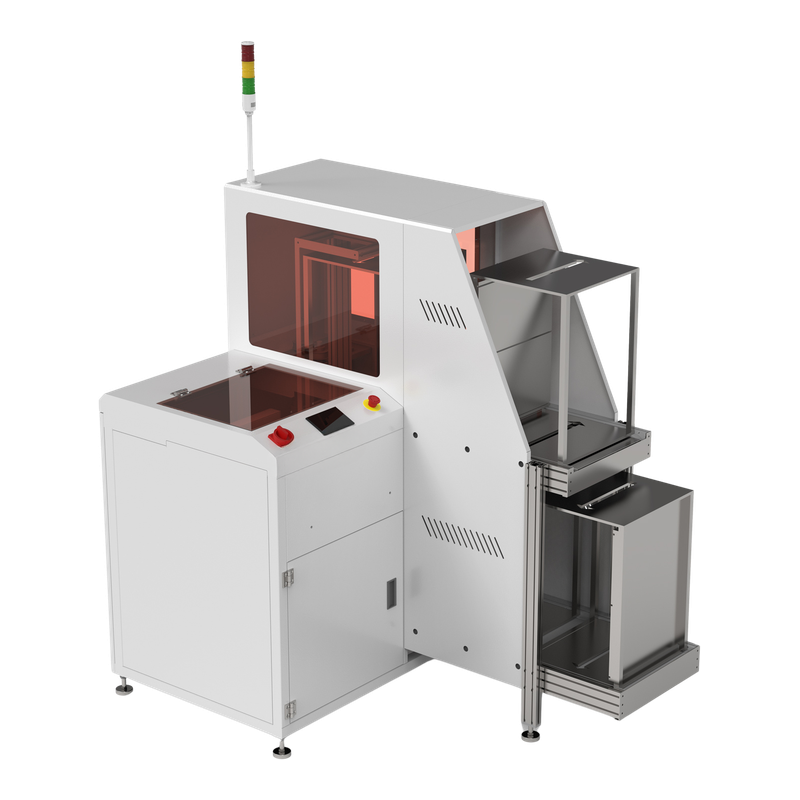

Version figures below are from the manufacturer website archived 2026-10-08. The 2024 brochure is separate corroboration; its differing suffixes, dimensions or clearance are not substituted. Figures describe standard model configurations, not stock or an offered unit. Dimensions are listed in the source order and exclude the tower light where stated. The main view illustrates the family; it does not identify every fitted version. Request nameplate, configuration and board-trial evidence before selection.
Manufacturer-published model data
Vanstron ASL Technical Specifications
| Reference family | ASL-250M, ASL-330L, ASL-390L and ASL-460L |
|---|---|
| Magazine arrangement | Top 1, lower 2 and middle 1 reference positions |
| Transfer reference | 900 +/-50 mm; left to right; front fixed rail |
| PCB envelope | Minimum 50 x 50 mm; maximum by ASL version |
| Website component clearance | Top 50 mm; bottom 25 mm; confirm fitted arrangement |
| Interface and control | SMEMA; PLC; ESD flat belts |
| Electrical options | 220 V or 110 V single-phase, 50-60 Hz |
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used Vanstron ASL unit.
