Space-Saving Magazine Unloader
ASUL-250M
- Maximum PCB (L x W)
- 330 x 250 mm
- Machine dimensions (L x W x H)
- 1010 x 1470 x 1650 mm
- Magazine dimensions (L x W x H)
- 355 x 320 x 563 mm
Home / Space-saving PCB output / Vanstron ASUL
Model guide · unit evidence required
OverviewVanstron ASUL Space-Saving Magazine Unloader
Collect completed PCBs from the line into magazines arranged around an L-shaped platform. Keep ASUL output duty separate from ASL loading. Website XL/XXL suffixes and chassis dimensions differ from the 2024 brochure; confirm the offered nameplate and drawing rather than assuming interchangeability.
One family · configuration choices
Compare ASUL versions
Collect completed PCBs from the line into magazines arranged around an L-shaped platform. Select by the actual board envelope, magazine arrangement and installation space—not the suffix alone.
Space-Saving Magazine Unloader
ASUL-330L
- Maximum PCB (L x W)
- 440 x 330 mm
- Machine dimensions (L x W x H)
- 1210 x 1700 x 1650 mm
- Magazine dimensions (L x W x H)
- 460 x 400 x 563 mm
Space-Saving Magazine Unloader
ASUL-390XL
- Maximum PCB (L x W)
- 530 x 390 mm
- Machine dimensions (L x W x H)
- 1390 x 2110 x 1650 mm
- Magazine dimensions (L x W x H)
- 535 x 460 x 570 mm
Space-Saving Magazine Unloader
ASUL-460XXL
- Maximum PCB (L x W)
- 535 x 460 mm
- Machine dimensions (L x W x H)
- 1390 x 2110 x 1650 mm
- Magazine dimensions (L x W x H)
- 535 x 530 x 570 mm
What the versions share
- Transfer
- 900 +/-50 mm reference; verify offered drawing
- Selection
- Board and magazine envelope, access and handoff

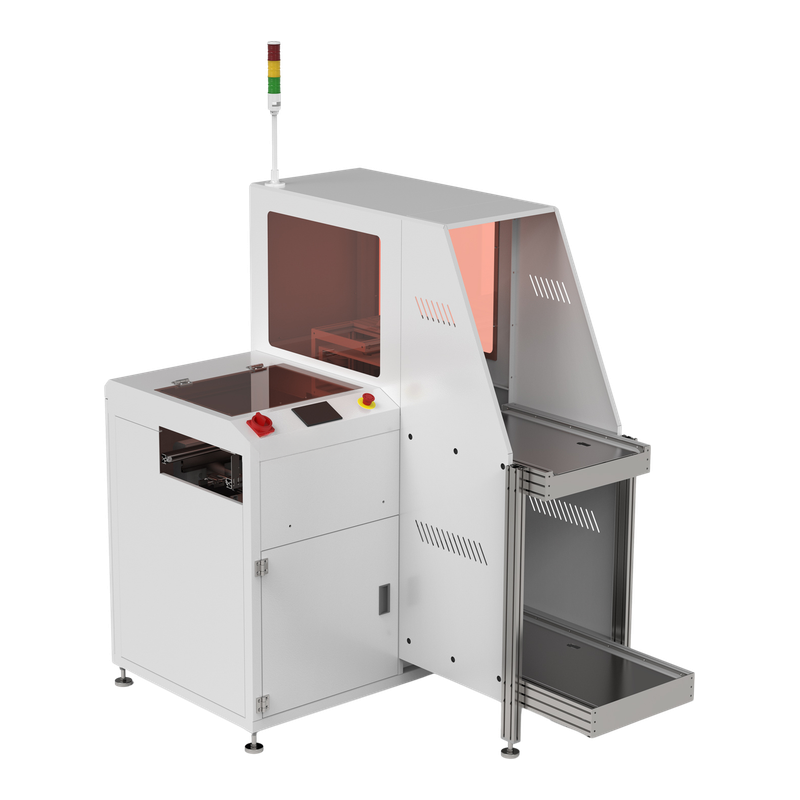

Version figures below are from the manufacturer website archived 2026-10-08. The 2024 brochure is separate corroboration; its differing suffixes, dimensions or clearance are not substituted. Figures describe standard model configurations, not stock or an offered unit. Dimensions are listed in the source order and exclude the tower light where stated. The main view illustrates the family; it does not identify every fitted version. Request nameplate, configuration and board-trial evidence before selection.
Manufacturer-published model data
Vanstron ASUL Technical Specifications
| Reference family | ASUL-250M, ASUL-330L, ASUL-390XL and ASUL-460XXL in the retained website table |
|---|---|
| Magazine arrangement | Top 1, lower 2 and middle 1 reference positions |
| Transfer reference | 900 +/-50 mm; left to right; front fixed rail |
| PCB envelope | Minimum 50 x 50 mm; maximum by ASUL version |
| Reference component clearance | Top 50 mm and bottom 30 mm |
| Interface and control | SMEMA; PLC; ESD flat belts |
| Electrical options | 220 V or 110 V single-phase, 50-60 Hz |
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used Vanstron ASUL unit.
