Dual Magazine Loader
DST-250
- Maximum PCB (L x W)
- 330 x 250 mm
- Machine dimensions (L x W x H)
- 1090 x 1592 x 1680 mm
- Magazine dimensions (L x W x H)
- 355 x 320 x 563 mm
Home / Dual-magazine PCB loading / Vanstron DST
Model guide · unit evidence required
OverviewVanstron DST Dual Magazine Loader
Feed PCBs from two magazine positions into a selected single-lane or dual-lane line arrangement. Two magazines do not establish two independently controlled lanes. Agree the destination logic, pusher arbitration and recovery when one lane cannot accept a board.
One family · configuration choices
Compare DST versions
Feed PCBs from two magazine positions into a selected single-lane or dual-lane line arrangement. Select by the actual board envelope, magazine arrangement and installation space—not the suffix alone.
Dual Magazine Loader
DST-330
- Maximum PCB (L x W)
- 440 x 330 mm
- Machine dimensions (L x W x H)
- 1300 x 1752 x 1680 mm
- Magazine dimensions (L x W x H)
- 460 x 400 x 563 mm
Dual Magazine Loader
DST-390
- Maximum PCB (L x W)
- 530 x 390 mm
- Machine dimensions (L x W x H)
- 1450 x 1872 x 1680 mm
- Magazine dimensions (L x W x H)
- 535 x 460 x 570 mm
Dual Magazine Loader
DST-460
- Maximum PCB (L x W)
- 535 x 460 mm
- Machine dimensions (L x W x H)
- 1450 x 2012 x 1680 mm
- Magazine dimensions (L x W x H)
- 535 x 530 x 570 mm
What the versions share
- Transfer
- 900 +/-50 mm reference; verify offered drawing
- Selection
- Board and magazine envelope, access and handoff

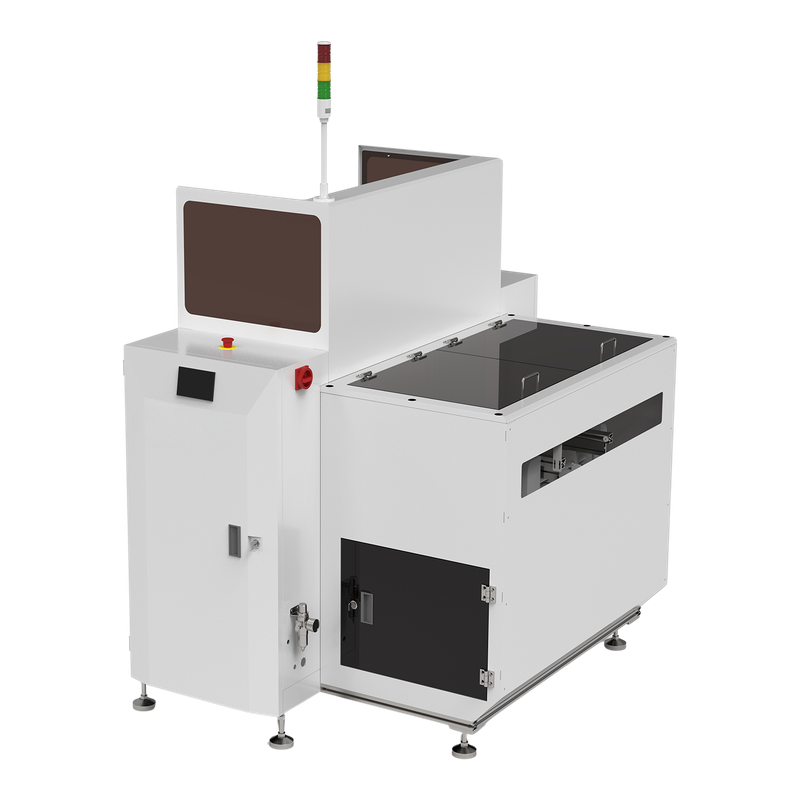

Version figures below are from the manufacturer website archived 2026-10-08. The 2024 brochure is separate corroboration; its differing suffixes, dimensions or clearance are not substituted. Figures describe standard model configurations, not stock or an offered unit. Dimensions are listed in the source order and exclude the tower light where stated. The main view illustrates the family; it does not identify every fitted version. Request nameplate, configuration and board-trial evidence before selection.
Manufacturer-published model data
Vanstron DST Technical Specifications
| Reference family | DST-250, DST-330, DST-390 and DST-460 |
|---|---|
| PCB envelope | Minimum 50 x 50 mm; maximum depends on the selected DST version |
| Magazine positions | 2; confirm actual lane control and replenishment sequence |
| Transfer reference | 900 +/-50 mm height; left to right; front fixed rail |
| Interface and control | SMEMA; PLC; ESD flat belts |
| Component clearance | Top 50 mm and bottom 30 mm in the retained reference |
| Electrical options | 220 V or 110 V single-phase, 50-60 Hz; confirm fitted voltage |
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used Vanstron DST unit.
Key Features
Configuration Must Be Verified
The actual Vanstron DST quote should identify the magazine platforms, indexing drive, pusher, lane logic, sensors, belts and interlocks.
