Coating-Line Magazine Loader
SL-250M-EC
- Maximum PCB (L x W)
- 330 x 250 mm
- Machine dimensions (L x W x H)
- 1077 x 1500 x 1700 mm
- Magazine dimensions (L x W x H)
- 355 x 320 x 563 mm
Home / Enclosed coating-line PCB input / Vanstron SL-EC
Model guide · unit evidence required
OverviewVanstron SL-EC Coating-Line Magazine Loader
Push compatible PCBs from indexed magazines into a coating line through an enclosed loading system. The 2024 brochure identifies SL-EC for loading. The archived loader webpage incorrectly repeats SUL-EC output codes and differs on magazine positions and edge support. Keep the brochure table separate and request the offered nameplate and drawing.
One family · configuration choices
Compare SL-EC versions
Push compatible PCBs from indexed magazines into a coating line through an enclosed loading system. Select by the actual board envelope, magazine arrangement and installation space—not the suffix alone.
Coating-Line Magazine Loader
SL-330L-EC
- Maximum PCB (L x W)
- 440 x 330 mm
- Machine dimensions (L x W x H)
- 1227 x 1700 x 1700 mm
- Magazine dimensions (L x W x H)
- 460 x 400 x 563 mm
Coating-Line Magazine Loader
SL-390L-EC
- Maximum PCB (L x W)
- 530 x 390 mm
- Machine dimensions (L x W x H)
- 1447 x 1931 x 1720 mm
- Magazine dimensions (L x W x H)
- 535 x 460 x 570 mm
Coating-Line Magazine Loader
SL-460L-EC
- Maximum PCB (L x W)
- 535 x 460 mm
- Machine dimensions (L x W x H)
- 1502 x 2126 x 1720 mm
- Magazine dimensions (L x W x H)
- 535 x 530 x 570 mm
What the versions share
- Transfer
- 900 +/-50 mm reference; verify offered drawing
- Selection
- Board and magazine envelope, coated-board contact and extraction

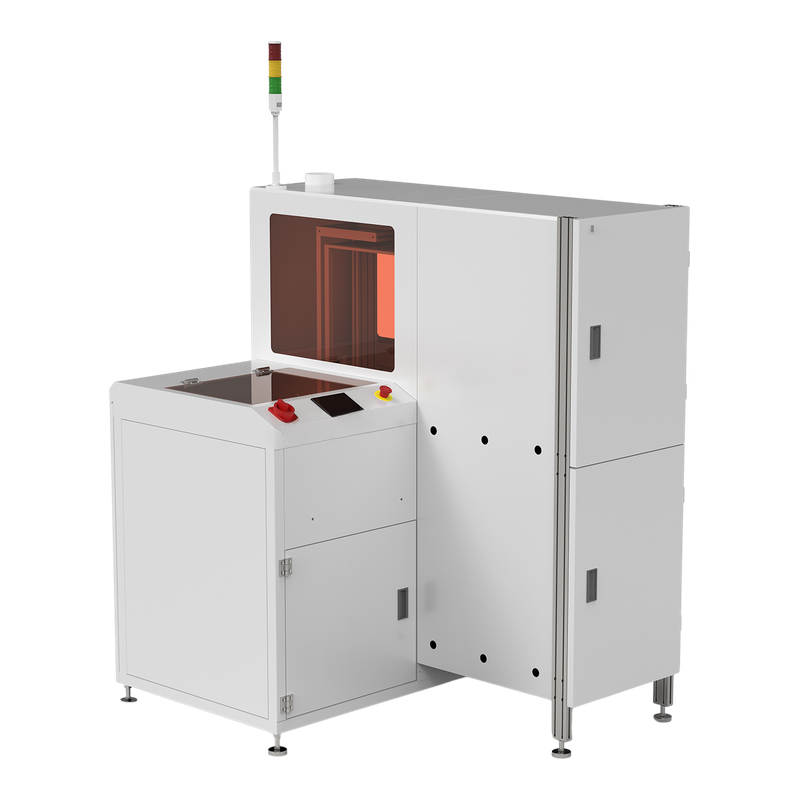

Version figures use the manufacturer 2024 brochure only. The archived website has code or hardware differences; do not combine the two editions. Figures describe standard model configurations, not stock or an offered unit. Dimensions are listed in the source order and exclude the tower light where stated. The source photo matches the brochure family illustration and distinct input/output structure. It does not certify the size suffix or fitted configuration of every version. Request nameplate, configuration and board-trial evidence before selection.
Manufacturer-published model data
Vanstron SL-EC Technical Specifications
| Brochure family | SL-250M-EC, SL-330L-EC, SL-390L-EC and SL-460L-EC |
|---|---|
| PCB envelope | 50 x 50 mm minimum; maximum by brochure version below |
| Transfer reference | 900 +/-50 mm; left to right; front fixed rail |
| Assembly clearance | Top 80 mm and bottom 40 mm reference; verify the complete transfer path |
| Air supply | 4-6 bar reference |
| Interface and control | SMEMA; PLC; confirm offered control and optional communications |
| Electrical options | 220 V or 110 V single-phase, 50-60 Hz |
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used Vanstron SL-EC unit.
Key Features
Configuration Must Be Verified
The actual Vanstron SL-EC quote should identify the enclosure, extraction connection, alarm, magazine platforms, lift, pusher, sensors and line interface.
