Coating-Line Magazine Unloader
SUL-250M-EC
- Maximum PCB (L x W)
- 330 x 250 mm
- Machine dimensions (L x W x H)
- 1077 x 1500 x 1700 mm
- Magazine dimensions (L x W x H)
- 355 x 320 x 563 mm
Home / Enclosed coating-line PCB output / Vanstron SUL-EC
Model guide · unit evidence required
OverviewVanstron SUL-EC Coating-Line Magazine Unloader
Receive compatible coated boards from the line and collect them into indexed magazines in an enclosed output system. The website and 2024 brochure both identify SUL-EC output duty. They differ on belt or pin-chain transfer, edge support and magazine arrangement. The comparison below uses the brochure edition; an offered-unit drawing and contact trial govern selection.
One family · configuration choices
Compare SUL-EC versions
Receive compatible coated boards from the line and collect them into indexed magazines in an enclosed output system. Select by the actual board envelope, magazine arrangement and installation space—not the suffix alone.
Coating-Line Magazine Unloader
SUL-330L-EC
- Maximum PCB (L x W)
- 440 x 330 mm
- Machine dimensions (L x W x H)
- 1132 x 1700 x 1700 mm
- Magazine dimensions (L x W x H)
- 460 x 400 x 563 mm
Coating-Line Magazine Unloader
SUL-390L-EC
- Maximum PCB (L x W)
- 530 x 390 mm
- Machine dimensions (L x W x H)
- 1241 x 1931 x 1720 mm
- Magazine dimensions (L x W x H)
- 535 x 460 x 570 mm
Coating-Line Magazine Unloader
SUL-460L-EC
- Maximum PCB (L x W)
- 535 x 460 mm
- Machine dimensions (L x W x H)
- 1241 x 2151 x 1720 mm
- Magazine dimensions (L x W x H)
- 535 x 530 x 570 mm
What the versions share
- Transfer
- 900 +/-50 mm reference; verify offered drawing
- Selection
- Board and magazine envelope, coated-board contact and extraction

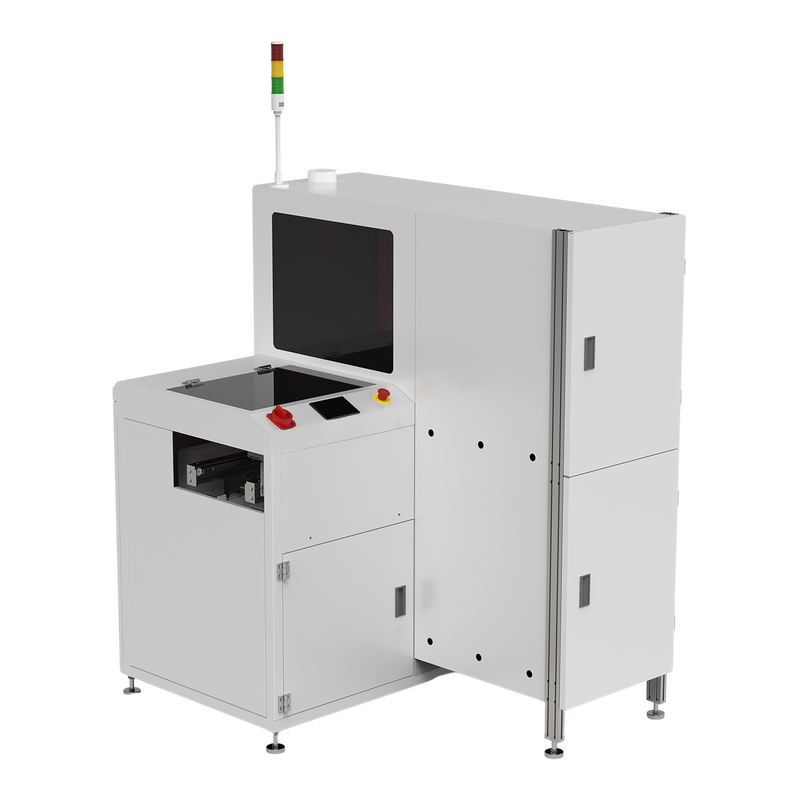

Version figures use the manufacturer 2024 brochure only. The archived website has code or hardware differences; do not combine the two editions. Figures describe standard model configurations, not stock or an offered unit. Dimensions are listed in the source order and exclude the tower light where stated. The source photo matches the brochure family illustration and distinct input/output structure. It does not certify the size suffix or fitted configuration of every version. Request nameplate, configuration and board-trial evidence before selection.
Manufacturer-published model data
Vanstron SUL-EC Technical Specifications
| Brochure family | SUL-250M-EC, SUL-330L-EC, SUL-390L-EC and SUL-460L-EC |
|---|---|
| PCB envelope | 50 x 50 mm minimum; maximum by brochure version below |
| Transfer reference | 900 +/-50 mm; left to right; front fixed rail |
| Assembly clearance | Top 80 mm and bottom 40 mm reference; verify coated-board contact |
| Air supply | 4-6 bar reference |
| Interface and control | SMEMA; PLC; confirm offered hardware and optional communications |
| Electrical options | 220 V or 110 V single-phase, 50-60 Hz |
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used Vanstron SUL-EC unit.
