OverviewVanstron VB-460Min Mini Vertical Buffer
Provide ten reference board positions in a compact vertical buffer with selectable line-handling modes. Check clearance, loaded weight, recovery order and access around the compact cabinet. Confirm fitted width adjustment and operating modes; a menu listing does not prove line integration.
Manufacturer-published model data
Vanstron VB-460Min Technical Specifications
| PCB envelope | 50 x 50 mm minimum; 500 x 460 mm maximum |
|---|---|
| Reference board thickness | 0.6-6 mm |
| Reference capacity | 10 PCBs; 35 mm slot distance in the website table |
| Component clearance | Top 20 mm and bottom 15 mm |
| Reference footprint | 550 x 820 x 1395 mm (L x W x H) |
| Transfer reference | 900 +/-50 mm; left to right; front fixed rail |
| Brochure loading limits | 3 kg per board and 30 kg combined; confirm fitted version |
| Electrical options | 220 V or 110 V single-phase, 50-60 Hz |
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used Vanstron VB-460Min unit.
Key Features
Configuration Must Be Verified
The actual Vanstron VB-460Min quote should identify the rack pitch, lift, guide width drive, board sensors, mode logic, belts and interlocks.
Buyer decision guide
When Vanstron VB-460Min Makes Sense — and When It May Not
Vanstron VB-460Min selection should begin with production requirements and evidence, not with a model name alone.
Typical Applications
Typical Applications for Vanstron VB-460Min
Use VB-460Min for a qualified temporary board store, line split or reject-handling arrangement. Check clearance, loaded weight, recovery order and access around the compact cabinet. Confirm fitted width adjustment and operating modes; a menu listing does not prove line integration.
Before quotation
Three Vanstron VB-460Min Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
Which VB-460Min mode and signal arrangement will be used?
Vanstron VB-460Min buyers should confirm this with actual-machine evidence before quotation.
2
Do the actual assembly clearance and loaded weight fit the offered rack?
Vanstron VB-460Min buyers should confirm this with actual-machine evidence before quotation.
3
Can stopped-line recovery preserve stored-board order and reject identity?
Vanstron VB-460Min buyers should confirm this with actual-machine evidence before quotation.
Running video confirmation
Vanstron VB-460Min Running Video Review
Before shipment, review the relevant power-on, movement, operating state and visible condition for the specific offered unit.
This review page does not present a reference clip as proof of the actual machine. A reviewed unit-specific recording is required before it can be attached here.
- Power-on and visible operating-state confirmation
- storage and exit order, selected modes, reject signaling, width change and safe recovery
- Unit-specific condition evidence before export packing
Used-machine inspection
Inspection and Export Preparation for an Actual Vanstron VB-460Min
- Nameplate and configurationModel, serial, year, voltage and installed options.
- Machine configurationMechanical, transport, sensing, camera, software and motion condition relevant to the quoted Vanstron VB-460Min.
- Transport and softwareConveyor, sensors, program and line-interface evidence where applicable.
- Running and packing proofPower-on evidence, visible operation and export packing records.
Spare Parts
Vanstron VB-460Min Spare Parts Scope
Request a unit-specific Vanstron VB-460Min list for rack supports, lift drive, width guides, conveyor belts, sensors and controller parts. Availability is not claimed on this review page.
Quotation checklist
Provide board envelope, top/bottom component heights, weight, handling mode, width adjustment and recovery criteria, required accessories and desired inspection evidence for the proposed Vanstron VB-460Min.
FAQ
Common questions for overseas buyers evaluating a Vanstron VB-460Min.
01Order
Does VB-460Min provide FIFO because it is a vertical buffer?
Do not assume that. The retained brochure explicitly lists LIFO and other selectable handling modes. Confirm the fitted program and desired board sequence.
02Width
Is automatic width adjustment guaranteed on every VB-460Min?
No. The brochure and website describe different standard/optional arrangements. Confirm the installed drive, software and usable width before quotation.
03Evidence

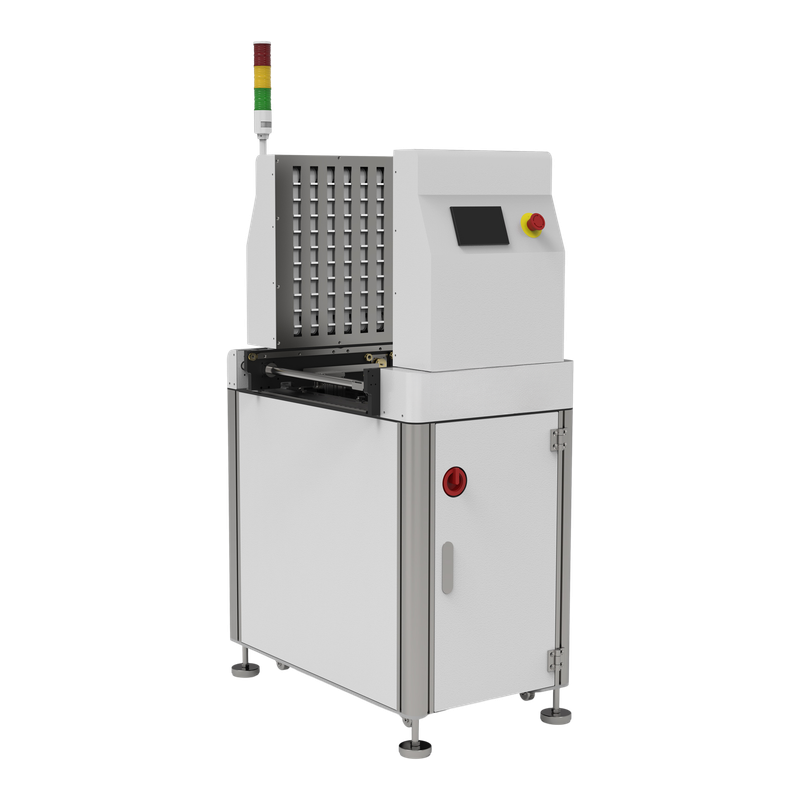

Does the VB-460Min reference image prove current stock?
No. It is a supplier-published model reference. Availability, serial number, condition, location, price and the fitted configuration require separate evidence for the offered unit.
Export packing proof
Export Packing and Container Loading
The V3 scrolling proof gallery is retained. It describes LCSMT export preparation, not the condition of a particular Vanstron VB-460Min unit.
Send Your Vanstron VB-460Min Production Requirement
Share board envelope, top/bottom component heights, weight, handling mode, width adjustment and recovery criteria and inspection expectations. LCSMT can review whether an actual Vanstron VB-460Min configuration is a practical match.
VB-460Min sources and acceptance checks
Check clearance, loaded weight, recovery order and access around the compact cabinet. Confirm fitted width adjustment and operating modes; a menu listing does not prove line integration.
