OverviewVanstron VB-700S High-Component Vertical Buffer
Hold populated PCBs between line stages in a vertical rack intended for taller components. Check both sides of the assembly against the rack and transfer path. Twenty reference positions are not a guarantee for a customized rack or heavier board; agree usable capacity and recovery order.
Manufacturer-published model data
Vanstron VB-700S Technical Specifications
| Reference PCB size | Up to 560 x 460 mm; confirm the offered rack and guides |
|---|---|
| Component-height reference | 70 mm in the manufacturer reference; verify both assembly sides |
| Brochure rack arrangement | 20 PCB positions at 70 mm pitch; offered/custom rack may differ |
| Transfer reference | 900 +/-50 mm; left to right; front fixed rail |
| Reference footprint | 1150 x 1300 x 2050 mm (L x W x H); custom dimensions can differ |
| Catalogue mass | 380 kg |
| Control and air | PLC and servo system; 4-6 bar reference |
| Electrical options | 220 V or 110 V single-phase, 50-60 Hz |
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used Vanstron VB-700S unit.
Key Features
Configuration Must Be Verified
The actual Vanstron VB-700S quote should identify the rack pitch, servo lift, conveyor alignment, sensors, board-order logic, door interlocks and controller.
Buyer decision guide
When Vanstron VB-700S Makes Sense — and When It May Not
Vanstron VB-700S selection should begin with production requirements and evidence, not with a model name alone.
Typical Applications
Typical Applications for Vanstron VB-700S
Use VB-700S to buffer a qualified assembly while controlling the selected FIFO, LIFO or bypass sequence. Check both sides of the assembly against the rack and transfer path. Twenty reference positions are not a guarantee for a customized rack or heavier board; agree usable capacity and recovery order.
Before quotation
Three Vanstron VB-700S Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
What rack pitch, usable positions and board-weight limits apply to this VB-700S?
Vanstron VB-700S buyers should confirm this with actual-machine evidence before quotation.
2
Which FIFO, LIFO or bypass mode will be qualified?
Vanstron VB-700S buyers should confirm this with actual-machine evidence before quotation.
3
Can high-level transfer, full-buffer signaling and recovery preserve board identity?
Vanstron VB-700S buyers should confirm this with actual-machine evidence before quotation.
Running video confirmation
Vanstron VB-700S Running Video Review
Before shipment, review the relevant power-on, movement, operating state and visible condition for the specific offered unit.
This review page does not present a reference clip as proof of the actual machine. A reviewed unit-specific recording is required before it can be attached here.
- Power-on and visible operating-state confirmation
- rack indexing at several heights, board transfer, full-buffer signals and board-order recovery
- Unit-specific condition evidence before export packing
Used-machine inspection
Inspection and Export Preparation for an Actual Vanstron VB-700S
- Nameplate and configurationModel, serial, year, voltage and installed options.
- Machine configurationMechanical, transport, sensing, camera, software and motion condition relevant to the quoted Vanstron VB-700S.
- Transport and softwareConveyor, sensors, program and line-interface evidence where applicable.
- Running and packing proofPower-on evidence, visible operation and export packing records.
Spare Parts
Vanstron VB-700S Spare Parts Scope
Request a unit-specific Vanstron VB-700S list for servo drive, rack supports, belts, sensors, guides, door interlocks and controller parts. Availability is not claimed on this review page.
Quotation checklist
Provide assembly envelope and weight, required rack pitch, usable positions, operating mode and recovery criteria, required accessories and desired inspection evidence for the proposed Vanstron VB-700S.
FAQ
Common questions for overseas buyers evaluating a Vanstron VB-700S.
01Height
Does a 70 mm VB-700S reference qualify every 70 mm component?
No. Top and underside clearance, board sag, support and transfer geometry all matter. Qualify the complete assembly in the fitted rack.
02Slots
Are 20 VB-700S slots guaranteed on a customized cabinet?
No. Twenty positions and 70 mm pitch describe the retained brochure arrangement. Confirm actual usable positions, pitch, weight limits and board order.
03Evidence

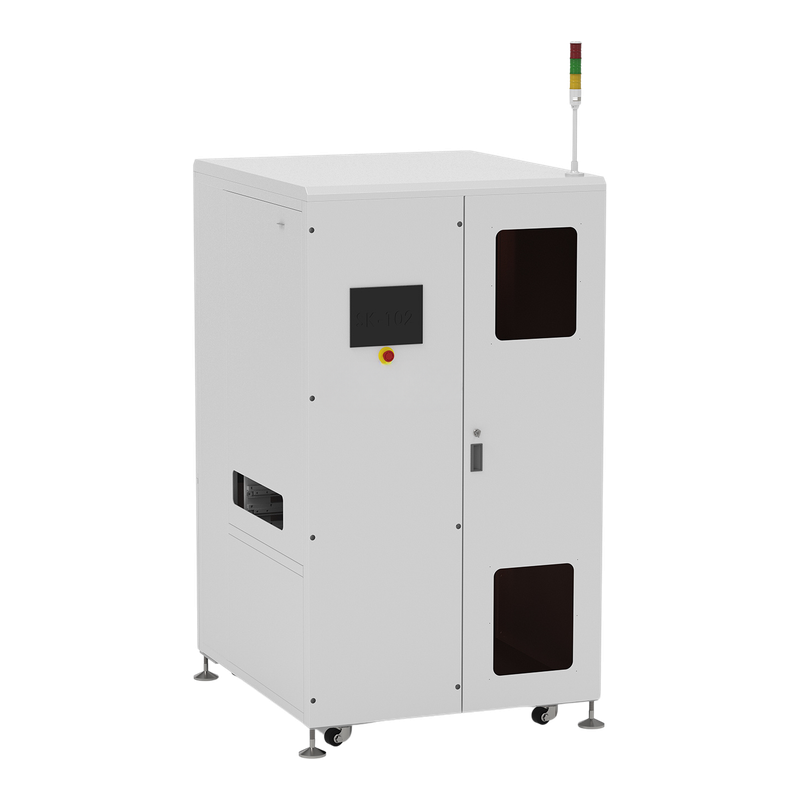

Does the VB-700S reference image prove current stock?
No. It is a supplier-published model reference. Availability, serial number, condition, location, price and the fitted configuration require separate evidence for the offered unit.
Export packing proof
Export Packing and Container Loading
The V3 scrolling proof gallery is retained. It describes LCSMT export preparation, not the condition of a particular Vanstron VB-700S unit.
Send Your Vanstron VB-700S Production Requirement
Share assembly envelope and weight, required rack pitch, usable positions, operating mode and recovery criteria and inspection expectations. LCSMT can review whether an actual Vanstron VB-700S configuration is a practical match.
VB-700S sources and acceptance checks
Check both sides of the assembly against the rack and transfer path. Twenty reference positions are not a guarantee for a customized rack or heavier board; agree usable capacity and recovery order.
