OverviewViscom X7056-II Inline X-ray Inspection
Viscom X7056-II is an inline X-ray system that can be configured as AXI alone or a combined AOI/AXI system. The detector setup and handling determine its usable inspection performance. Select the detector and reconstruction configuration from the hidden-joint task. Do not apply AOI speed or optional OCR to an X-ray-only offer.
Manufacturer-published model data
Viscom X7056-II Technical Specifications
| Detector | Flat-panel detector, 14-bit grayscale depth |
|---|---|
| Published resolution range | 6–32 micrometres per pixel, configuration dependent |
| Board envelope | Up to 450 × 350 mm, configuration dependent |
| Inspection methods | 2D, 2.5D and 3D; AXI alone or combined AOI/AXI |
| Interface | Viscom vVision/EasyPro; actual version and licenses must be verified |
| Speed boundary | Published 65 cm²/s is AOI, not AXI throughput |
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used Viscom X7056-II unit.
Key Features
Configuration Must Be Verified
The offer must identify Exact serial, detectors, source/service history, protective systems, fitted AOI/AXI modes and software licenses; Target-joint images, board clearance, reconstruction repeatability, review calls, transfer and qualified safety documentation.
Buyer decision guide
When Viscom X7056-II Makes Sense — and When It May Not
Viscom X7056-II selection should begin with production requirements and evidence, not with a model name alone.
Application qualification
Viscom X7056-II Acceptance Plan
Define the hidden-joint task
For X7056-II acceptance, bring the actual board with its package overlap, underside components and known challenge joints. Ask the supplier to identify the detector arrangement and reconstruction mode used for each result. Retain images and review decisions from the required connections, not only a visually impressive CT example. An optical speed figure is not an X-ray line-rate specification; the complete inspection program and handling sequence must establish usable cycle time.
Identify combined-system options
If the purchase requires both AOI and AXI, obtain the fitted hardware and license list and demonstrate the two result types on the same actual assembly. Confirm the board envelope, clearance and chosen detector resolution as a configuration, not independent maximum values. Barcode, OCR, Quality Uplink and MES claims need an installed-function demonstration. Do not treat the related bond-inspection BO variant as another name for this general X7056-II platform.
Keep safety and condition evidence separate
Have qualified personnel review source and detector service history, protective-system documentation and the required site safety checks. Never bypass interlocks to obtain a video or acceptance image. Witness program recovery and board transfer through an approved procedure. The Guangdong used-machine listing provides a sourcing lead only, not a verified certification, source life, warranty or current serial. The manufacturer reference photograph is retained for private review; public-use rights need clearance before release.
Typical Applications
Typical Applications for Viscom X7056-II
Viscom X7056-II should be evaluated against the buyer’s evaluate hidden solder connections and populated assemblies using the fitted 2d, 2.5d or 3d x-ray modes; visible-feature aoi requires the combined configuration. The final application fit depends on the evidence for the specific unit.
Before quotation
Three Viscom X7056-II Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
Which detector requirement must the proposed Viscom X7056-II demonstrate?
Viscom X7056-II buyers should confirm this with actual-machine evidence before quotation.
2
What is included in this Viscom X7056-II offer: exact serial, detectors, source/service history, protective systems, fitted aoi/axi modes and software licenses?
Viscom X7056-II buyers should confirm this with actual-machine evidence before quotation.
3
Can the Viscom X7056-II acceptance run document target-joint images, board clearance, reconstruction repeatability, review calls, transfer and qualified safety documentation?
Viscom X7056-II buyers should confirm this with actual-machine evidence before quotation.
Running video confirmation
Viscom X7056-II Running Video Review
Before shipment, review the relevant power-on, movement, operating state and visible condition for the specific offered unit.
Request a dated operating sequence of the offered Viscom X7056-II. The model-image control requests evidence, not playback of a recorded video.
- Power-on and visible operating-state confirmation
- Evaluate hidden solder connections and populated assemblies using the fitted 2D, 2.5D or 3D X-ray modes; visible-feature AOI requires the combined configuration.
- Unit-specific condition evidence before export packing
Used-machine inspection
Inspection and Export Preparation for an Actual Viscom X7056-II
- Nameplate and configurationModel, serial, year, voltage and installed options.
- Machine configurationMechanical, transport, sensing, camera, software and motion condition relevant to the quoted Viscom X7056-II.
- Transport and softwareConveyor, sensors, program and line-interface evidence where applicable.
- Running and packing proofPower-on evidence, visible operation and export packing records.
Spare Parts
Viscom X7056-II Spare Parts Scope
Request a unit-specific Viscom X7056-II list for documented X-ray source and detector service items, calibration references, conveyor hardware and authorized inspection/review software. Availability is not claimed on this review page.
Quotation checklist
Provide target assembly, process requirements, detector, installed configuration and destination, required accessories and desired inspection evidence for the proposed Viscom X7056-II.
FAQ
Common questions for overseas buyers evaluating a Viscom X7056-II.
01Application
Which production task suits Viscom X7056-II?
Evaluate hidden solder connections and populated assemblies using the fitted 2D, 2.5D or 3D X-ray modes; visible-feature AOI requires the combined configuration. Select the detector and reconstruction configuration from the hidden-joint task. Do not apply AOI speed or optional OCR to an X-ray-only offer.
02Configuration
What should a buyer confirm for Viscom X7056-II?
Exact serial, detectors, source/service history, protective systems, fitted AOI/AXI modes and software licenses. Request the exact nameplate and option list.
03Unit evidence
Does this Viscom X7056-II illustration prove stock?

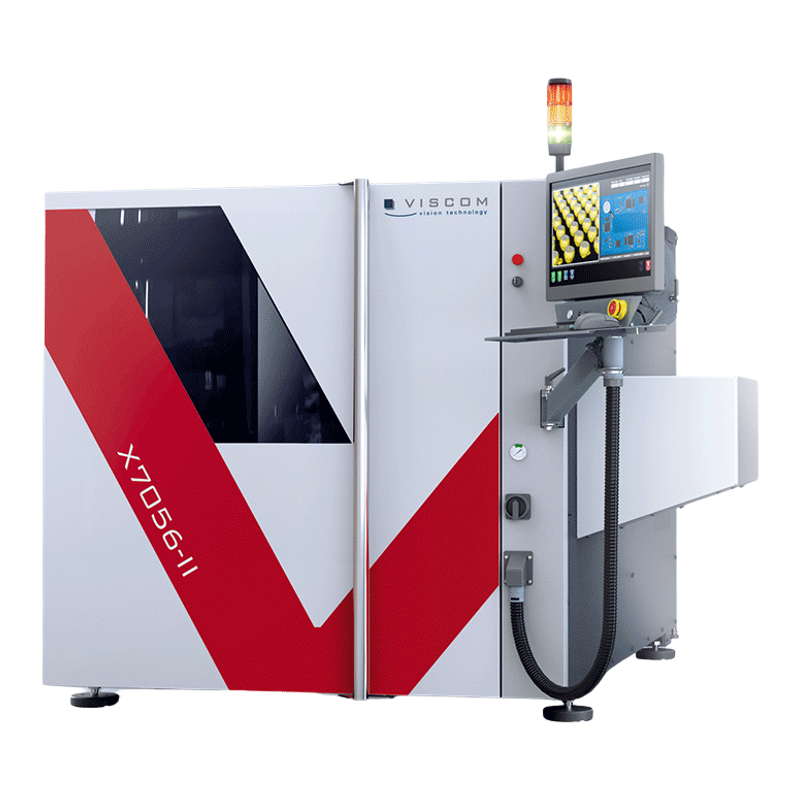

The Viscom X7056-II illustration is model-reference imagery, not a dated stock photograph. Serial, location, condition, price and running evidence require separate confirmation.
Export packing proof
Export Packing and Container Loading
The V3 scrolling proof gallery is retained. It describes LCSMT export preparation, not the condition of a particular Viscom X7056-II unit.
Send Your Viscom X7056-II Production Requirement
Share target assembly, process requirements, detector, installed configuration and destination and inspection expectations. LCSMT can review whether an actual Viscom X7056-II configuration is a practical match.
