OverviewYamaha YRH10W Hybrid placer
Yamaha hybrid placer combining surface-mount device and semiconductor die mounting in one platform. Evaluate whether the offered machine has the die-handling tools, feeder set and board transport needed for the intended mixed module workload; catalogue throughput is conditional.
Manufacturer-published model data
Yamaha YRH10W Technical Specifications
| Wafer size | 6, 8 or 12 inches |
|---|---|
| Pcb range | L50 × W60 to L510 × W460 mm |
| Wafer mounting capacity | 14,000 UPH under Yamaha's optimized conditions |
| Chip mounting capacity | 29,000 CPH under Yamaha's optimized conditions |
| Mounting accuracy | ±15 µm, Cpk≥1.0 |
| Component supply | Reel maximum 64 types; wafer maximum 10 types |
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used Yamaha YRH10W unit.
Key Features
Configuration Must Be Verified
The Yamaha YRH10W offer must document Installed wafer-handling and feeder/tool configuration; Actual capacity, condition, software, service history and running proof.
Buyer decision guide
When Yamaha YRH10W Makes Sense — and When It May Not
Yamaha YRH10W selection should begin with production requirements and evidence, not with a model name alone.
Application qualification
Yamaha YRH10W Acceptance Plan
Trace both supply paths
A YRH10W evaluation should identify which devices arrive as wafer die and which arrive on tape. Request wafer diameter, die dimensions, pickup orientation and handling-tool evidence, then observe recognition and placement on a representative mixed module. Keep wafer and SMD capacity figures separate because the manufacturer publishes different optimized conditions.
Inspect fragile die after placement
For YRH10W trials, examine the die and board at agreed inspection points before and after placement. Review the configured load control and height compensation rather than assuming that the model name guarantees a particular recipe. Include trace-image availability, rejected pickups and handling recovery in the evidence request.
Typical Applications
Typical Applications for Yamaha YRH10W
Mixed wafer-supplied die and tape-fed SMD placement for module and large-board production. Evaluate whether the offered machine has the die-handling tools, feeder set and board transport needed for the intended mixed module workload; catalogue throughput is conditional.
Before quotation
Three Yamaha YRH10W Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
Which wafer size requirement must the proposed Yamaha YRH10W demonstrate?
Yamaha YRH10W buyers should confirm this with actual-machine evidence before quotation.
2
What is included in this Yamaha YRH10W offer: installed wafer-handling and feeder/tool configuration?
Yamaha YRH10W buyers should confirm this with actual-machine evidence before quotation.
3
Can the Yamaha YRH10W acceptance run document actual capacity, condition, software, service history and running proof?
Yamaha YRH10W buyers should confirm this with actual-machine evidence before quotation.
Running video confirmation
Yamaha YRH10W Running Video Review
Before shipment, review the relevant power-on, movement, operating state and visible condition for the specific offered unit.
Request a dated operating sequence for the offered Yamaha YRH10W. The preview is a model illustration; the orange control requests evidence, not playback.
- Power-on and visible operating-state confirmation
- Mixed wafer-supplied die and tape-fed SMD placement for module and large-board production.
- Unit-specific condition evidence before export packing
Used-machine inspection
Inspection and Export Preparation for an Actual Yamaha YRH10W
- Nameplate and configurationModel, serial, year, voltage and installed options.
- Machine configurationMechanical, transport, sensing, camera, software and motion condition relevant to the quoted Yamaha YRH10W.
- Transport and softwareConveyor, sensors, program and line-interface evidence where applicable.
- Running and packing proofPower-on evidence, visible operation and export packing records.
Spare Parts
Yamaha YRH10W Spare Parts Scope
Request a unit-specific Yamaha YRH10W list for matched head tools, nozzles, feeders, recognition hardware, transport belts and board supports. Availability is not claimed on this review page.
Quotation checklist
Provide target assembly, process requirements, wafer size, installed configuration and destination, required accessories and desired inspection evidence for the proposed Yamaha YRH10W.
FAQ
Common questions for overseas buyers evaluating a Yamaha YRH10W.
01Application
Which production task suits Yamaha YRH10W?
Mixed wafer-supplied die and tape-fed SMD placement for module and large-board production. Evaluate whether the offered machine has the die-handling tools, feeder set and board transport needed for the intended mixed module workload; catalogue throughput is conditional.
02Configuration
What should a buyer confirm for Yamaha YRH10W?
Installed wafer-handling and feeder/tool configuration. Request the exact nameplate and option list.
03Unit evidence
Does this Yamaha YRH10W illustration prove stock?

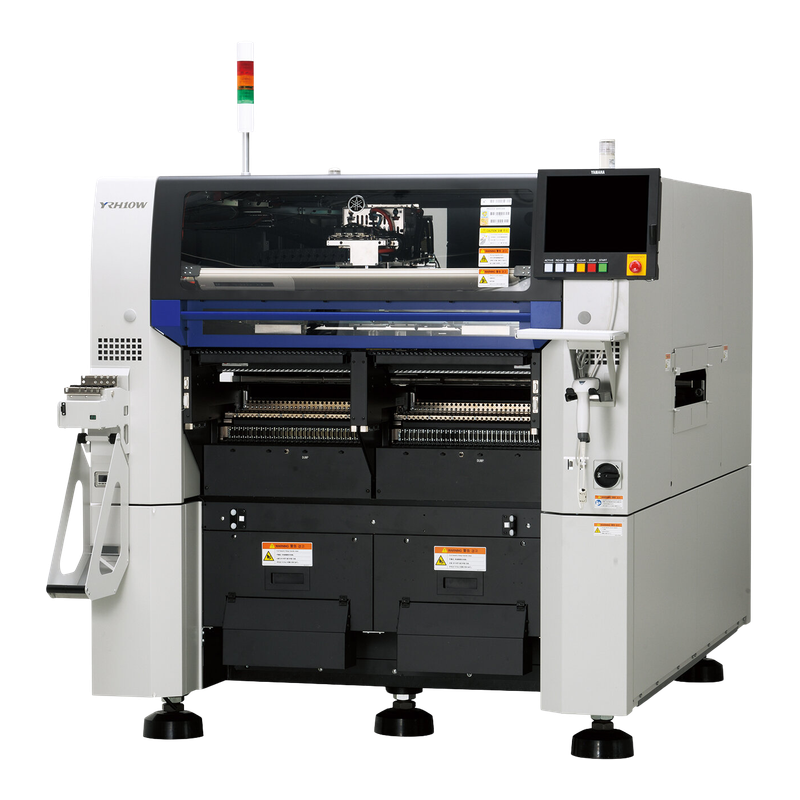

The Yamaha YRH10W illustration is model-reference imagery, not a dated stock photograph. Serial, location, condition, price and running evidence require separate confirmation.
Export packing proof
Export Packing and Container Loading
The V3 scrolling proof gallery is retained. It describes LCSMT export preparation, not the condition of a particular Yamaha YRH10W unit.
Send Your Yamaha YRH10W Production Requirement
Share target assembly, process requirements, wafer size, installed configuration and destination and inspection expectations. LCSMT can review whether an actual Yamaha YRH10W configuration is a practical match.
