OverviewYamaha YSi-V Hybrid Optical Inspection

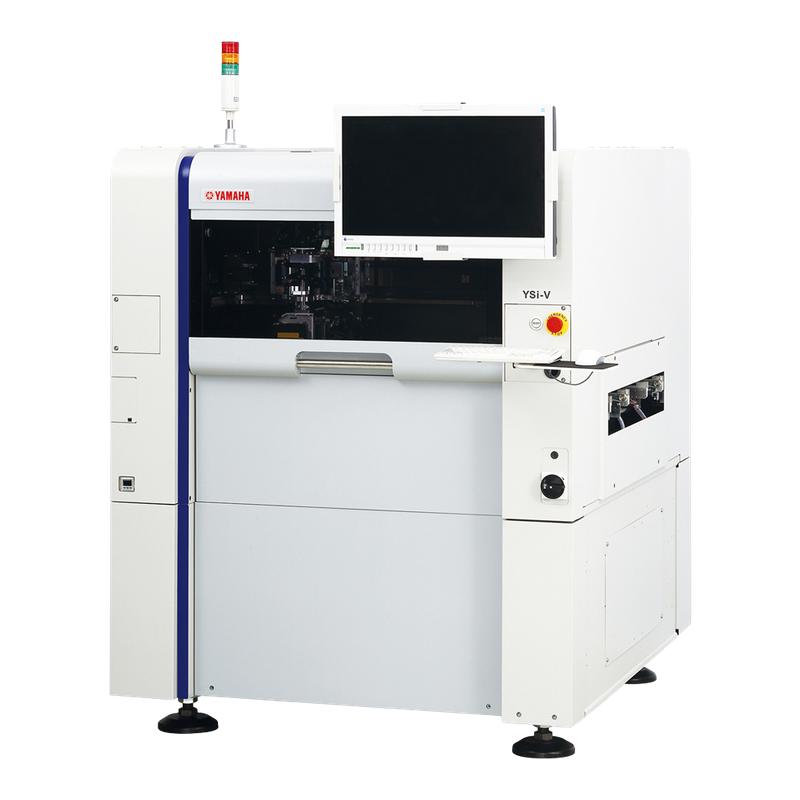

Yamaha YSi-V combines optical inspection modes on one platform. This family guide keeps 5 MP and 12 MP generations together while identifying TypeHS2 as the representative manufacturer image, not the fitted configuration of an offered unit. Choose the actual camera, projector and review configuration by an assembly-level defect challenge. Do not apply TypeHS2 small-component performance or current utility data automatically to a 5M or earlier 12M serial.
One family · configuration choices
Compare YSi-V versions
Inspect visible component position and solder condition after placement or reflow. Choose top, height and oblique inspection around the joints that must be measured; optical evidence does not establish concealed BGA connections. Select by the actual board envelope, optical configuration and installation space—not the suffix alone.
12M comparison generations
YSi-V 12M TypeS / TypeDF
- Camera
- 12 MP
- Sampling
- 7 or 12 µm by type
- Boundary
- Confirm fitted projectors, software and inspection mode
Later high-speed generation; reference image
YSi-V 12M TypeHS2
- Camera
- 12 MP
- Sampling
- 7 or 12 µm by configuration
- Boundary
- Manufacturer 2017 generation, not proof of a supplier unit
What the versions share
- Process
- Hybrid Optical Inspection
- Purchase boundary
- Identify the version, installed options and application trial; no stock is asserted.
Current manufacturer model descriptions checked 5 October 2026; numbers remain version-specific. Figures describe standard model configurations, not stock or an offered unit. Dimensions are listed in the source order and exclude the tower light where stated. The representative YSi-V image is not proof of another version or an offered unit’s condition. Request nameplate, configuration and board-trial evidence before selection.
Manufacturer-published model data
Yamaha YSi-V Technical Specifications
| Current 12m camera | 12 megapixels |
|---|---|
| Current factory sampling choices | 12 or 7 micrometres; identify the offered configuration |
| Single-lane board envelope | 50 × 50 to 610 × 560 mm; 750 mm length is optional |
| Current external dimensions | 1,252 × 1,498 × 1,550 mm, excluding protrusions |
| Current dry-air requirement | 0.45 MPa or more in the current specification; older releases differ |
| Legacy generation boundary | 5M and 12M TypeS / TypeDF / TypeHS2 are not interchangeable configurations |
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used Yamaha YSi-V unit.
Key Features
Configuration Must Be Verified
The offer must identify YSi-V serial, 5M/12M type, sampling resolution, projectors, oblique cameras, conveyor envelope and licensed review functions; Representative joints, known defects, repeatability, false calls, board identity, full-board cycle and program recovery.
Buyer decision guide
When Yamaha YSi-V Makes Sense — and When It May Not
Yamaha YSi-V selection should begin with production requirements and evidence, not with a model name alone.
Application qualification
Yamaha YSi-V Acceptance Plan
Select the optical task before the generation
For a Yamaha YSi-V enquiry, list the assemblies and visible joints that determine acceptance. Include tall connectors, reflective packages and the smallest features that need inspection. Request retained top and height images from the actual program, and include oblique views where access or lead geometry makes them relevant. Specify a separate test for concealed joints that optical inspection cannot see. A family-level defect illustration is useful context, but it is not a witnessed result from a used machine.
Resolve 5M, 12M and TypeHS2 in the offer
Photograph the nameplate and retain the hardware, software and license screens before comparing a YSi-V offer with a catalogue. The manufacturer distinguishes the 5M camera generation from 12M TypeS, TypeDF and TypeHS2. Ask the supplier to identify the installed sampling and projector arrangement, any oblique cameras and the supported review software. Do not turn a newer TypeHS2 reference image into an assertion that an older serial has the same small-component inspection or an available upgrade.
Make review quality and recovery part of acceptance
Retain the labelled challenge samples, measured outputs, false calls and review decisions under the same recipe. Time the full board transfer and review sequence rather than choosing the shortest field-of-view result. Confirm the required board envelope, supports, dry-air supply and recovery procedure against the serial-specific manual. A China used-equipment listing establishes only an enquiry lead. Request dated location, maintenance, calibration, program backups and operating evidence before agreeing the supplied configuration or delivery conditions.
Typical Applications
Typical Applications for Yamaha YSi-V
Yamaha YSi-V should be evaluated against the buyer’s inspect visible component position and solder condition after placement or reflow. choose top, height and oblique inspection around the joints that must be measured; optical evidence does not establish concealed bga connections. The final application fit depends on the evidence for the specific unit.
