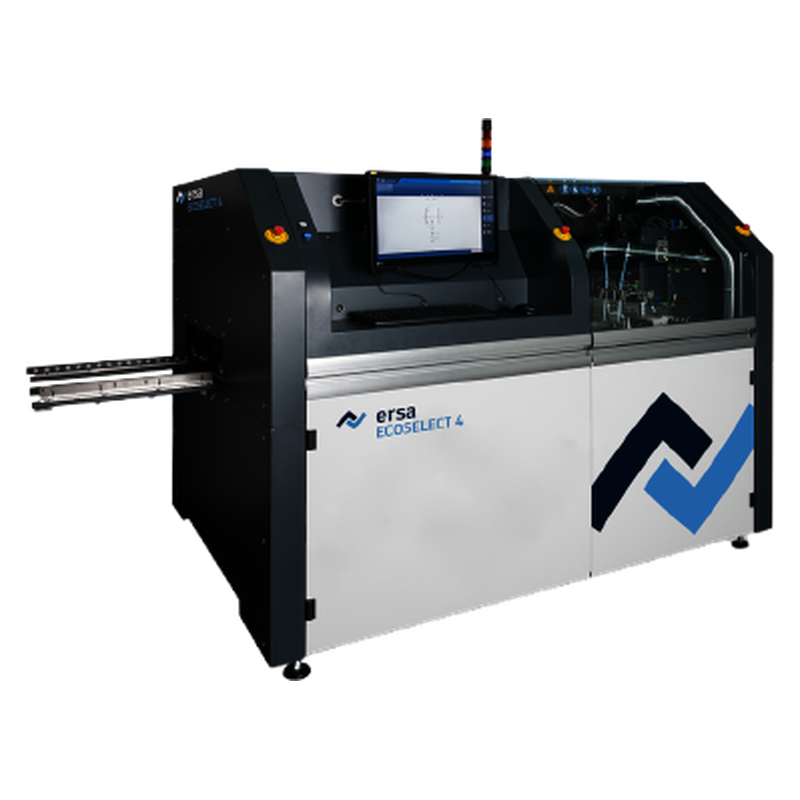

OverviewErsa ECOSELECT 4 Inline and Batch Selective Soldering System
The ECOSELECT 4 supports batch or inline selective soldering for small and medium production runs. Plan flux application, preheat, nozzle access and board transport around the actual assembly and installed machine options.
Manufacturer-published model data
Ersa ECOSELECT 4 Technical Specifications
| Operating mode | Batch and inline operation with a roller conveyor in Ersa's published system. |
|---|---|
| Board range | Width 50–508 mm and length 127–508 mm; maximum PCB weight 15 kg. |
| Component clearance | Top-side structures up to 120 mm and bottom-side structures up to 60 mm in published data. |
| Flux and heating | Drop-jet fluxer and bottom IR preheat; top convection and power convection are listed as options. |
| Solder module | Electromagnetic mini-wave pot, 13 kg; up to two pots depending on configuration. |
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used Ersa ECOSELECT 4 unit.
Key Features
Configuration Must Be Verified
The actual Ersa ECOSELECT 4 quote should identify the fluxer, preheaters, solder pot count, nozzles, conveyor, software, utilities and visible condition.
Buyer decision guide
When Ersa ECOSELECT 4 Makes Sense — and When It May Not
Ersa ECOSELECT 4 selection should begin with production requirements and evidence, not with a model name alone.
Typical Applications
Typical Applications for Ersa ECOSELECT 4
Ersa ECOSELECT 4 should be evaluated against the buyer’s board dimensions, joint access, flux chemistry, thermal profile, nozzle plan and line integration. The final application fit depends on the evidence for the specific unit.
Before quotation
Three Ersa ECOSELECT 4 Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
Which boards, through-hole joints and solder chemistry must the machine support?
Ersa ECOSELECT 4 buyers should confirm this with actual-machine evidence before quotation.
2
Are the second pot and optional top-side preheat installed?
Ersa ECOSELECT 4 buyers should confirm this with actual-machine evidence before quotation.
3
Can the offered system demonstrate fluxing, preheat, mini-wave soldering and conveyor transfer?
Ersa ECOSELECT 4 buyers should confirm this with actual-machine evidence before quotation.
Running video confirmation
Ersa ECOSELECT 4 Running Video Review
Before shipment, review the relevant power-on, movement, operating state and visible condition for the specific offered unit.
This review page does not present a reference clip as proof of the actual machine. A reviewed unit-specific recording is required before it can be attached here.
- Power-on and visible operating-state confirmation
- flux application, preheat, selective wave action and conveyor transfer
- Unit-specific condition evidence before export packing
Running video pendingA reviewed local video is not yet attached. Open this panel for unit-specific proof.
Used-machine inspection
Inspection and Export Preparation for an Actual Ersa ECOSELECT 4
- Nameplate and configurationModel, serial, year, voltage and installed options.
- Machine configurationMechanical, transport, sensing, camera, software and motion condition relevant to the quoted Ersa ECOSELECT 4.
- Transport and softwareConveyor, sensors, program and line-interface evidence where applicable.
- Running and packing proofPower-on evidence, visible operation and export packing records.
Spare Parts
Ersa ECOSELECT 4 Spare Parts Scope
Request a unit-specific Ersa ECOSELECT 4 list for solder nozzles, pots, fluxer components, heaters, conveyor parts and service items. Availability is not claimed on this review page.
Quotation checklist
Provide board range, joint map, solder and flux chemistry, pot count, utilities and destination, required accessories and desired inspection evidence for the proposed Ersa ECOSELECT 4.
FAQ
Common questions for overseas buyers evaluating a Ersa ECOSELECT 4.
01Operating mode
Can ECOSELECT 4 be used inline and in batch?
Ersa describes both modes; confirm the installed line interfaces and transport configuration.
02Two pots
Are two solder pots standard?
Ersa states up to two pots; inspect the machine before planning dual-pot work.
03Preheat
Is top convection always included?
No. Ersa marks top convection and power convection optional.
Export packing proof
Export Packing and Container Loading
The V3 scrolling proof gallery is retained. It describes LCSMT export preparation, not the condition of a particular Ersa ECOSELECT 4 unit.
Send Your Ersa ECOSELECT 4 Production Requirement
Share board range, joint map, solder and flux chemistry, pot count, utilities and destination and inspection expectations. LCSMT can review whether an actual Ersa ECOSELECT 4 configuration is a practical match.
