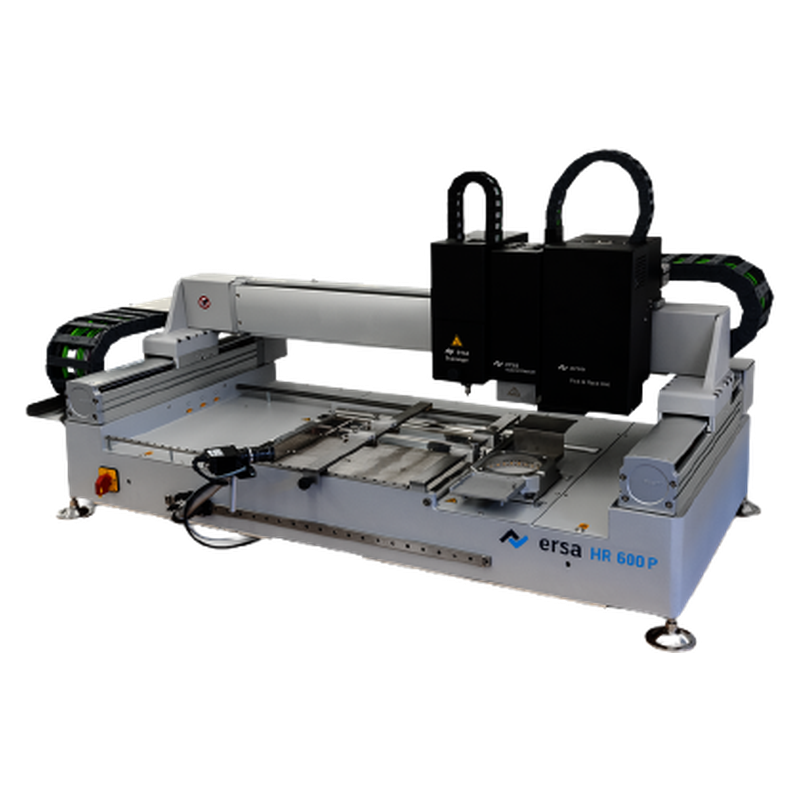

OverviewErsa HR 600 P Automated Hybrid Rework System
The HR 600 P combines hybrid top heating, IR bottom heating, optical alignment and software-guided rework. Validate the specific board holder, cameras, heating zones and optional residual-solder removal on any offered machine.
Manufacturer-published model data
Ersa HR 600 P Technical Specifications
| Top heater | 800 W hybrid heating head in two zones; published top working range up to 60 × 60 mm. |
|---|---|
| Bottom heater | IR emitter over a 380 × 380 mm area in Ersa's technical data. |
| Board handling | PCB up to 380 × 423 mm in the listed arrangement; optional holder supports a larger board format. |
| Component range | 1 × 1 to 60 × 60 mm in Ersa's published specification. |
| Axis and software | Published axis accuracy up to ±25 µm; HRSoft 2 process control and documentation. |
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used Ersa HR 600 P unit.
Key Features
Configuration Must Be Verified
The actual Ersa HR 600 P quote should identify the top and bottom heaters, board holder, cameras, axes, HRSoft 2, SC 600 option, voltage and visible condition.
Buyer decision guide
When Ersa HR 600 P Makes Sense — and When It May Not
Ersa HR 600 P selection should begin with production requirements and evidence, not with a model name alone.
Typical Applications
Typical Applications for Ersa HR 600 P
Ersa HR 600 P should be evaluated against the buyer’s PCB and package dimensions, thermal profile, optical alignment, residual-solder handling and repair records. The final application fit depends on the evidence for the specific unit.
Before quotation
Three Ersa HR 600 P Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
What package sizes, board formats and thermal profiles must be supported?
Ersa HR 600 P buyers should confirm this with actual-machine evidence before quotation.
2
Which board holder, cameras, software and SC 600 accessories are installed?
Ersa HR 600 P buyers should confirm this with actual-machine evidence before quotation.
3
Can the actual system demonstrate alignment, removal, placement and saved thermal records?
Ersa HR 600 P buyers should confirm this with actual-machine evidence before quotation.
Running video confirmation
Ersa HR 600 P Running Video Review
Before shipment, review the relevant power-on, movement, operating state and visible condition for the specific offered unit.
This review page does not present a reference clip as proof of the actual machine. A reviewed unit-specific recording is required before it can be attached here.
- Power-on and visible operating-state confirmation
- heater motion, optical alignment, component removal and placement, and profile recording
- Unit-specific condition evidence before export packing
Running video pendingA reviewed local video is not yet attached. Open this panel for unit-specific proof.
Used-machine inspection
Inspection and Export Preparation for an Actual Ersa HR 600 P
- Nameplate and configurationModel, serial, year, voltage and installed options.
- Machine configurationMechanical, transport, sensing, camera, software and motion condition relevant to the quoted Ersa HR 600 P.
- Transport and softwareConveyor, sensors, program and line-interface evidence where applicable.
- Running and packing proofPower-on evidence, visible operation and export packing records.
Spare Parts
Ersa HR 600 P Spare Parts Scope
Request a unit-specific Ersa HR 600 P list for heaters, cameras, board holders, thermocouples, vacuum pickup and maintenance items. Availability is not claimed on this review page.
Quotation checklist
Provide board and component size, rework process, holder and Scavenger scope, utilities and destination, required accessories and desired inspection evidence for the proposed Ersa HR 600 P.
FAQ
Common questions for overseas buyers evaluating a Ersa HR 600 P.
01SC 600
Does every HR 600 P include automatic solder removal?
No. Ersa lists the SC 600 as a separate module; verify the offered unit.
02Board size
Does the model name guarantee the larger board holder?
No. Ersa distinguishes the base holder and options; inspect the installed fixture.
03Accuracy
Is ±25 µm guaranteed on a used unit?
It is published system data; check calibration and representative placement.
Export packing proof
Export Packing and Container Loading
The V3 scrolling proof gallery is retained. It describes LCSMT export preparation, not the condition of a particular Ersa HR 600 P unit.
Send Your Ersa HR 600 P Production Requirement
Share board and component size, rework process, holder and Scavenger scope, utilities and destination and inspection expectations. LCSMT can review whether an actual Ersa HR 600 P configuration is a practical match.
