Camera-led inline AOI
JTA-JUTI-X
- Evidence
- 5 MP; X table 440 × 480 mm maximum
- Boundary
- Resolve the conflicting standard-resolution wording
Home / JT Equipment / JT JTA-JUTI Series
Model guide · unit evidence required
OverviewJT JTA-JUTI Series Solder-joint and Component Optical Inspection
JT JTA-JUTI groups X, MX and DX inline AOI choices on one page. Manufacturer material distinguishes the camera-led X, FPC-oriented MX and application-oriented DX rather than treating their tables as interchangeable. Request the exact X, MX or DX identity and a program trial. A current Chinese page uses a generic JTA-JUTI title with a different DIP description; that description is not transferred to these SMT versions.
One family · configuration choices
Compare JTA-JUTI Series versions
Optical review of visible component and solder-joint features in the configured SMT inspection position; choose the variant and program around the actual assemblies. Select by the actual board envelope, optical configuration and installation space—not the suffix alone.
FPC-oriented inline AOI
JTA-JUTI-MX
- Evidence
- FPC-specific logic and optional dual rail described
- Boundary
- Require the exact MX optical and rail table
Application-oriented inline AOI
JTA-JUTI-DX
- Evidence
- Smartphone logic and process/SPC review described
- Boundary
- Confirm fitted optics, software and board handling
What the versions share
- Process
- Solder-joint and Component Optical Inspection
- Purchase boundary
- Identify the version, installed options and application trial; no stock is asserted.

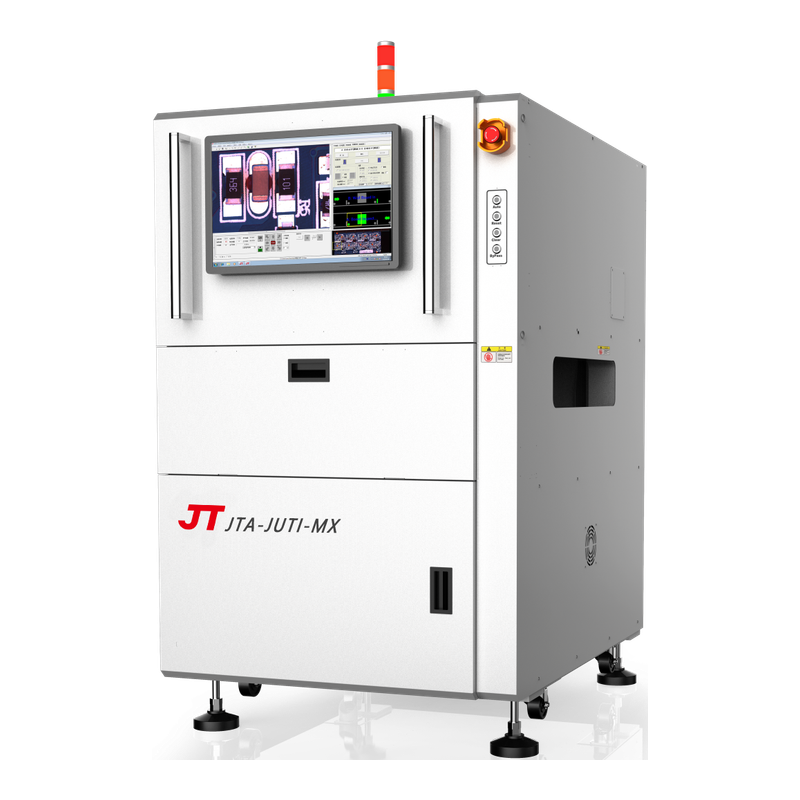

Current manufacturer model descriptions checked 5 October 2026; numbers remain version-specific. Figures describe standard model configurations, not stock or an offered unit. Dimensions are listed in the source order and exclude the tower light where stated. The representative JTA-JUTI-MX image is not proof of another version or an offered unit’s condition. Request nameplate, configuration and board-trial evidence before selection.
Manufacturer-published model data
JT JTA-JUTI Series Technical Specifications
| X camera | 5 MP high-speed colour camera in the manufacturer model table |
|---|---|
| X board envelope | 50 × 50 to 440 × 480 mm in the model table |
| X board thickness | 0.5–5 mm standard in the model table |
| Resolution conflict | The introduction and X table differ on the standard resolution; confirm the serial-specific configuration rather than combining claims |
| Mx and dx boundary | FPC logic, smartphone logic and optional dual rail are described; their full fitted configuration requires separate confirmation |
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used JT JTA-JUTI Series unit.
Key Features
Configuration Must Be Verified
The offer must identify X/MX/DX nameplate, camera and resolution, rails, top/bottom clearance, operating software and option licenses; Actual-board defect review, false-call handling, board transfer, barcode result association and program backup.
Buyer decision guide
When JT JTA-JUTI Series Makes Sense — and When It May Not
JT JTA-JUTI Series selection should begin with production requirements and evidence, not with a model name alone.
Application qualification
JT JTA-JUTI Series Acceptance Plan
Use the version, not just the cabinet
Start a JTA-JUTI comparison with the nameplate and the manufacturer document matching the offered serial. The X table and its introduction disagree about the standard optical resolution; record the installed setting as an unresolved verification item. A similar MX cabinet is not proof that an X unit has the same camera, rail envelope or logic. One family page avoids duplicate pictures, but it does not erase the real configuration differences.
Build an application-specific trial
For an MX enquiry, include the FPC support and warpage conditions that could change imaging. For DX, describe the board population and the exact application logic required. Retain known-good and known-defect samples, reviewer decisions and false calls. Missing parts, polarity and visible solder features need different challenge samples. Do not accept a demonstration on an unrelated easy board as evidence for the customer’s program or line rate.
Keep connectivity claims conditional
Ask the seller to show the installed SPC export, barcode association, offline programming and any communication with other inspection stations. Identify the licensed modules and the supported operating-system recovery path. The manufacturer table still mentions Windows 7; no upgrade is assumed. Retain a recipe backup and a witnessed recovery sequence. An independent China dealer’s family listing is only a route for enquiries, not proof of the MX image’s unit condition or availability.
Typical Applications
Typical Applications for JT JTA-JUTI Series
JT JTA-JUTI Series should be evaluated against the buyer’s optical review of visible component and solder-joint features in the configured smt inspection position; choose the variant and program around the actual assemblies. The final application fit depends on the evidence for the specific unit.
Before quotation
Three JT JTA-JUTI Series Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
Which x camera requirement must the proposed JT JTA-JUTI Series demonstrate?
JT JTA-JUTI Series buyers should confirm this with actual-machine evidence before quotation.
2
What is included in this JT JTA-JUTI Series offer: x/mx/dx nameplate, camera and resolution, rails, top/bottom clearance, operating software and option licenses?
JT JTA-JUTI Series buyers should confirm this with actual-machine evidence before quotation.
3
Can the JT JTA-JUTI Series acceptance run document actual-board defect review, false-call handling, board transfer, barcode result association and program backup?
JT JTA-JUTI Series buyers should confirm this with actual-machine evidence before quotation.
Running video confirmation
JT JTA-JUTI Series Running Video Review
Before shipment, review the relevant power-on, movement, operating state and visible condition for the specific offered unit.
Request a dated operating sequence of the offered JT JTA-JUTI Series. The model-image control requests evidence, not playback of a recorded video.
- Power-on and visible operating-state confirmation
- Optical review of visible component and solder-joint features in the configured SMT inspection position; choose the variant and program around the actual assemblies.
- Unit-specific condition evidence before export packing
Used-machine inspection
Inspection and Export Preparation for an Actual JT JTA-JUTI Series
- Nameplate and configurationModel, serial, year, voltage and installed options.
- Machine configurationMechanical, transport, sensing, camera, software and motion condition relevant to the quoted JT JTA-JUTI Series.
- Transport and softwareConveyor, sensors, program and line-interface evidence where applicable.
- Running and packing proofPower-on evidence, visible operation and export packing records.
Spare Parts
JT JTA-JUTI Series Spare Parts Scope
Request a unit-specific JT JTA-JUTI Series list for conveyor supports, camera and lighting service items, calibration references and authorized program/software backups. Availability is not claimed on this review page.
Quotation checklist
Provide target assembly, process requirements, x camera, installed configuration and destination, required accessories and desired inspection evidence for the proposed JT JTA-JUTI Series.
FAQ
Common questions for overseas buyers evaluating a JT JTA-JUTI Series.
01Application
Which production task suits JT JTA-JUTI Series?
Optical review of visible component and solder-joint features in the configured SMT inspection position; choose the variant and program around the actual assemblies. Request the exact X, MX or DX identity and a program trial. A current Chinese page uses a generic JTA-JUTI title with a different DIP description; that description is not transferred to these SMT versions.
02Configuration
What should a buyer confirm for JT JTA-JUTI Series?
X/MX/DX nameplate, camera and resolution, rails, top/bottom clearance, operating software and option licenses. Request the exact nameplate and option list.
03Unit evidence
Does this JT JTA-JUTI Series illustration prove stock?
The JT JTA-JUTI Series illustration is model-reference imagery, not a dated stock photograph. Serial, location, condition, price and running evidence require separate confirmation.
Export packing proof
Export Packing and Container Loading
The V3 scrolling proof gallery is retained. It describes LCSMT export preparation, not the condition of a particular JT JTA-JUTI Series unit.
Send Your JT JTA-JUTI Series Production Requirement
Share target assembly, process requirements, x camera, installed configuration and destination and inspection expectations. LCSMT can review whether an actual JT JTA-JUTI Series configuration is a practical match.
