OverviewJT REFINE Series 3D Solder Paste Inspection
JT REFINE measures printed solder paste before placement, using white-light fringe projection rather than a component-placement or post-solder optical inspection task. Select REFINE for the printing control loop. Establish the offered variant, measurement method and board envelope before comparing production rate.
Manufacturer-published model data
JT REFINE Series Technical Specifications
| Measurement principle | White-light sinusoidal fringe PMP in the manufacturer description |
|---|---|
| Reported outputs | Paste height, area, volume and positional offset |
| Published height-accuracy claim | Up to 1 micrometre under manufacturer conditions; not an acceptance guarantee |
| Board and camera limits | Not established by the current short family description; request the exact variant table |
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used JT REFINE Series unit.
Key Features
Configuration Must Be Verified
The offer must identify REFINE nameplate, optics, supported board outline, transport, calibration references and software licenses; Repeat measurements on the same printed pads, representative paste defects, transfer timing and retained measurement reports.
Buyer decision guide
When JT REFINE Series Makes Sense — and When It May Not
JT REFINE Series selection should begin with production requirements and evidence, not with a model name alone.
Application qualification
JT REFINE Series Acceptance Plan
Define the paste problem
For REFINE, bring the actual panel, stencil aperture information and freshly printed samples. Include thin deposits, bridging and displaced paste that the process team needs to distinguish. Record pad selection and the reference measurement method. Do not assume that one clean large pad proves performance on fine-pitch pads, uneven solder mask or a long panel. Agree the inspection thresholds with the printing process owner, rather than copying another factory’s program.
Separate repeatability from accuracy
Have the supplier retain repeated measurements of unchanged pads and identify the calibration reference used. Repeatability on one deposit and agreement with a reference are different questions. The catalogue’s micrometre claim is not a blanket tolerance for every paste shape or board surface. Request saved height, area, volume and offset results with their units and the actual program settings, including any pad exclusion or board-surface compensation.
Check the line feedback
Witness board loading, identification, paste inspection and result review as one sequence. Ask which printer feedback or SPC interface is installed and licensed, not merely advertised on a related family. Confirm the board envelope and cycle time using the populated inspection program. A model-reference image and a public dealer catalogue establish neither calibration status nor a ready-to-ship serial. Obtain dated configuration and service evidence before agreeing the purchase.
Typical Applications
Typical Applications for JT REFINE Series
JT REFINE Series should be evaluated against the buyer’s measure paste height, area, volume and offset after stencil printing; qualify the results against the actual paste, board surface and pad design. The final application fit depends on the evidence for the specific unit.
Before quotation
Three JT REFINE Series Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
Which measurement principle requirement must the proposed JT REFINE Series demonstrate?
JT REFINE Series buyers should confirm this with actual-machine evidence before quotation.
2
What is included in this JT REFINE Series offer: refine nameplate, optics, supported board outline, transport, calibration references and software licenses?
JT REFINE Series buyers should confirm this with actual-machine evidence before quotation.
3
Can the JT REFINE Series acceptance run document repeat measurements on the same printed pads, representative paste defects, transfer timing and retained measurement reports?
JT REFINE Series buyers should confirm this with actual-machine evidence before quotation.
Running video confirmation
JT REFINE Series Running Video Review
Before shipment, review the relevant power-on, movement, operating state and visible condition for the specific offered unit.
Request a dated operating sequence of the offered JT REFINE Series. The model-image control requests evidence, not playback of a recorded video.
- Power-on and visible operating-state confirmation
- Measure paste height, area, volume and offset after stencil printing; qualify the results against the actual paste, board surface and pad design.
- Unit-specific condition evidence before export packing
Used-machine inspection
Inspection and Export Preparation for an Actual JT REFINE Series
- Nameplate and configurationModel, serial, year, voltage and installed options.
- Machine configurationMechanical, transport, sensing, camera, software and motion condition relevant to the quoted JT REFINE Series.
- Transport and softwareConveyor, sensors, program and line-interface evidence where applicable.
- Running and packing proofPower-on evidence, visible operation and export packing records.
Spare Parts
JT REFINE Series Spare Parts Scope
Request a unit-specific JT REFINE Series list for calibration references, conveyor service items, approved optical cleaning materials and supported inspection software. Availability is not claimed on this review page.
Quotation checklist
Provide target assembly, process requirements, measurement principle, installed configuration and destination, required accessories and desired inspection evidence for the proposed JT REFINE Series.
FAQ
Common questions for overseas buyers evaluating a JT REFINE Series.
01Application
Which production task suits JT REFINE Series?
Measure paste height, area, volume and offset after stencil printing; qualify the results against the actual paste, board surface and pad design. Select REFINE for the printing control loop. Establish the offered variant, measurement method and board envelope before comparing production rate.
02Configuration
What should a buyer confirm for JT REFINE Series?
REFINE nameplate, optics, supported board outline, transport, calibration references and software licenses. Request the exact nameplate and option list.
03Unit evidence
Does this JT REFINE Series illustration prove stock?

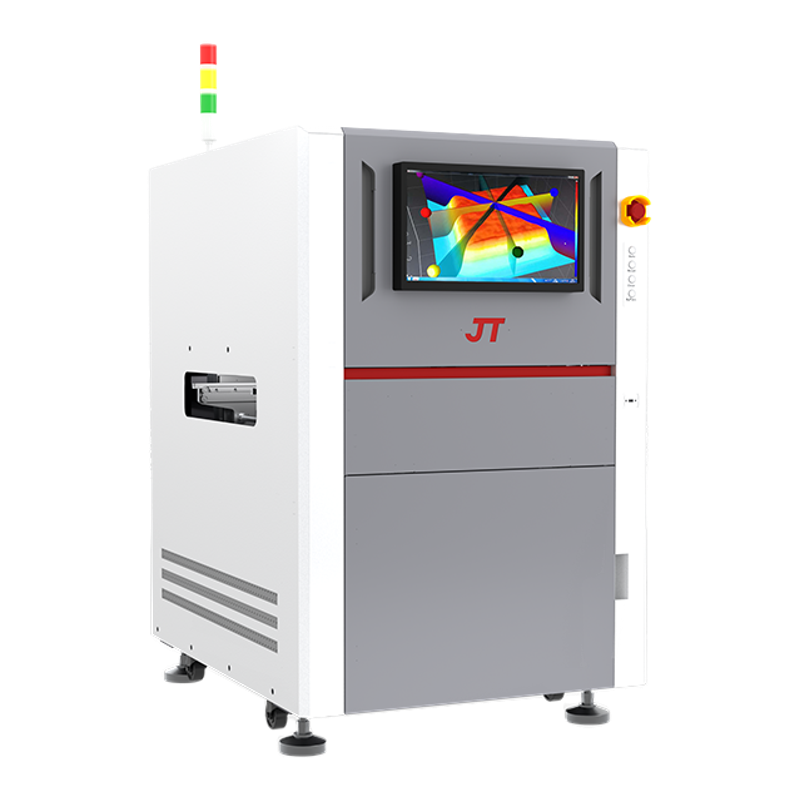

The JT REFINE Series illustration is model-reference imagery, not a dated stock photograph. Serial, location, condition, price and running evidence require separate confirmation.
Export packing proof
Export Packing and Container Loading
The V3 scrolling proof gallery is retained. It describes LCSMT export preparation, not the condition of a particular JT REFINE Series unit.
Send Your JT REFINE Series Production Requirement
Share target assembly, process requirements, measurement principle, installed configuration and destination and inspection expectations. LCSMT can review whether an actual JT REFINE Series configuration is a practical match.
