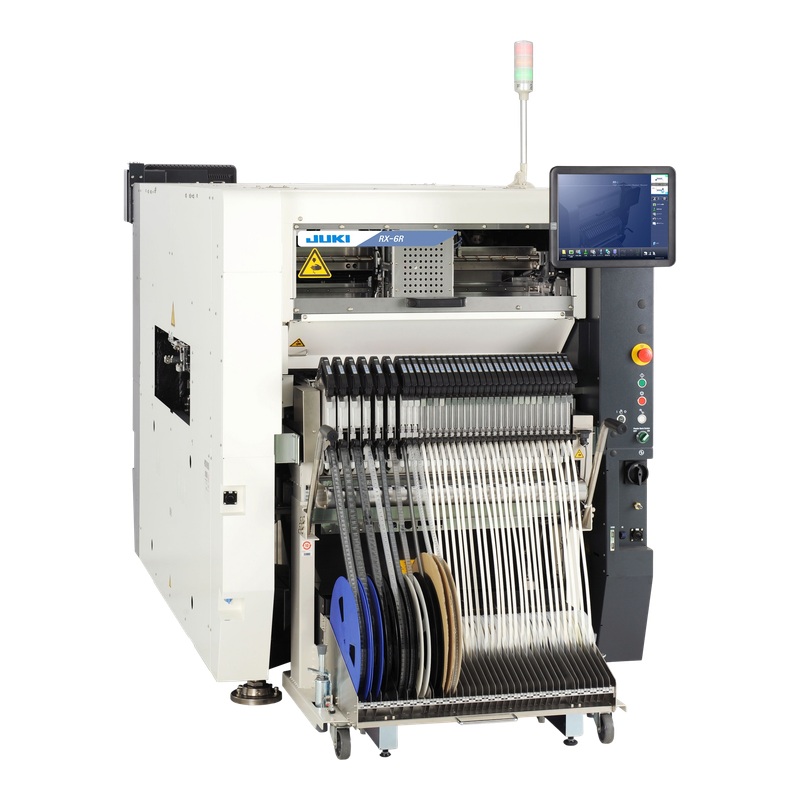

OverviewJUKI RX-6R Compact Modular Mounter
The RX-6R is the high-speed member of JUKI’s RX-6 flexible placement family. Check the board program and feeder mix against achievable cycle time. RX-6B head, height and lane capabilities are different.
Manufacturer-published model data
JUKI RX-6R Technical Specifications
| Standard board | 50 × 50 to 610 × 590 mm |
|---|---|
| Two clamping board | Up to 905 × 590 mm in the single-lane specification |
| Optimum chip speed | 52,000 cph under JUKI conditions; not real-board throughput |
| Ipc9850 chip speed | 29,000 cph in the May 2019 brochure |
| Machine width | 1,250 mm; allow feeder, service and access clearance |
Family scope: RX-6 / RX-6R / RX-6B. The figures and illustration on this page identify RX-6R. Earlier versions or other head/lane configurations require their own specification evidence; these figures must not be transferred between suffixes.
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used JUKI RX-6R unit.
Key Features
Configuration Must Be Verified
The offered JUKI RX-6R must document head, feeder, conveyor, camera and optional process package; condition, software, service history and actual-board running proof.
Buyer decision guide
When JUKI RX-6R Makes Sense — and When It May Not
JUKI RX-6R selection should begin with production requirements and evidence, not with a model name alone.
Typical Applications
Typical Applications for JUKI RX-6R
Component placement where line footprint, long boards and a mixed component program must be balanced. Confirm the board program and actual-unit configuration before a purchase decision.
Before quotation
Three JUKI RX-6R Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
Which standard board requirement does the target board need, and can the offered JUKI RX-6R demonstrate it?
JUKI RX-6R buyers should confirm this with actual-machine evidence before quotation.
2
Which configuration is included: head, feeder, conveyor, camera and optional process package?
JUKI RX-6R buyers should confirm this with actual-machine evidence before quotation.
3
Can a representative trial verify this process: component placement where line footprint, long boards and a mixed component program must be balanced?
JUKI RX-6R buyers should confirm this with actual-machine evidence before quotation.
Running video confirmation
JUKI RX-6R Running Video Review
Before shipment, review the relevant power-on, movement, operating state and visible condition for the specific offered unit.
The image is a model reference. The orange control requests actual-unit running evidence; no reviewed recording is attached.
- Power-on and visible operating-state confirmation
- Component placement where line footprint, long boards and a mixed component program must be balanced.
- Unit-specific condition evidence before export packing
Used-machine inspection
Inspection and Export Preparation for an Actual JUKI RX-6R
- Nameplate and configurationModel, serial, year, voltage and installed options.
- Machine configurationMechanical, transport, sensing, camera, software and motion condition relevant to the quoted JUKI RX-6R.
- Transport and softwareConveyor, sensors, program and line-interface evidence where applicable.
- Running and packing proofPower-on evidence, visible operation and export packing records.
Spare Parts
JUKI RX-6R Spare Parts Scope
Request a unit-specific JUKI RX-6R list for nozzles, feeders, camera assemblies, conveyor belts and head maintenance items. Availability is not claimed on this review page.
Quotation checklist
Provide target board and process, standard board, installed configuration, power and destination, required accessories and desired inspection evidence for the proposed JUKI RX-6R.
FAQ
Common questions for overseas buyers evaluating a JUKI RX-6R.
01Process
Where does the JUKI RX-6R fit in the line?
Component placement where line footprint, long boards and a mixed component program must be balanced.
02Configuration
What must be confirmed for a used JUKI RX-6R?
Head, feeder, conveyor, camera and optional process package; ask for the actual nameplate and configuration list.
03Availability
Is this JUKI RX-6R image evidence of current stock?
No. It is a manufacturer model reference. Current serial, location, condition, dated running evidence and a quotation require confirmation.
Export packing proof
Export Packing and Container Loading
The V3 scrolling proof gallery is retained. It describes LCSMT export preparation, not the condition of a particular JUKI RX-6R unit.
Send Your JUKI RX-6R Production Requirement
Share target board and process, standard board, installed configuration, power and destination and inspection expectations. LCSMT can review whether an actual JUKI RX-6R configuration is a practical match.
