OverviewKoh-Young KY8030-3 3D Solder Paste Inspection

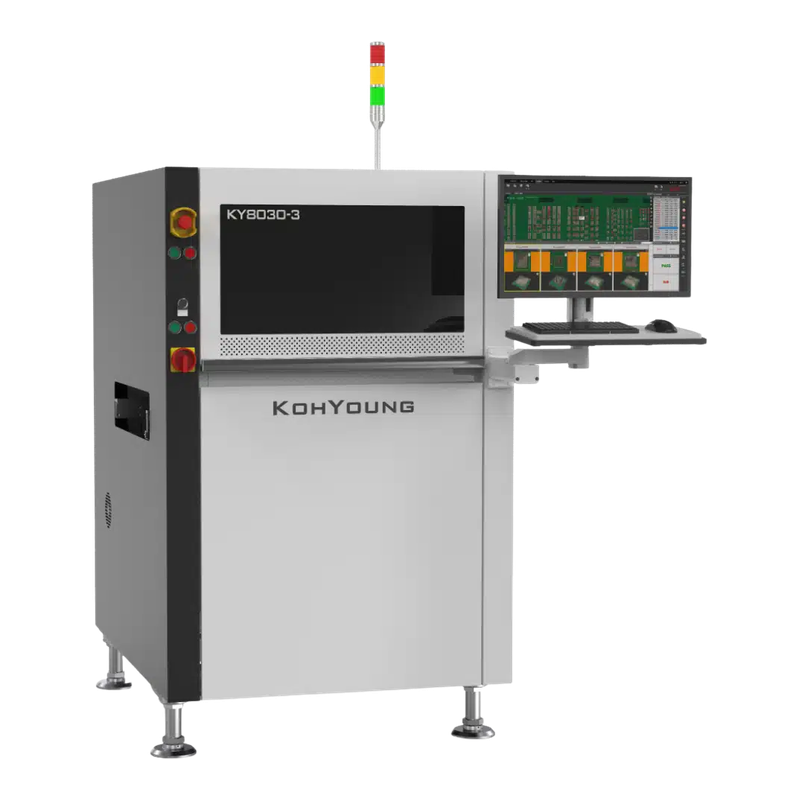

Koh Young KY8030-3 measures solder-paste deposits before component placement. This model guide distinguishes current manufacturer camera choices from legacy used-unit configurations; the reference photograph is not proof of stock or fitted options. Evaluate KY8030-3 when quantitative paste inspection can guide the printing process. A current catalogue speed, camera or software function cannot be assumed on an older used machine.
Manufacturer-published model data
Koh-Young KY8030-3 Technical Specifications
| Current camera choices | 8 or 12 megapixels; identify the fitted camera |
|---|---|
| Current sampling choices | 10, 15 or 20 micrometres by configuration |
| Published peak area rate | Up to 81.85 cm2/s at 8M and 20 micrometres; not a full-board cycle guarantee |
| Current inspection-height reference | Up to 400 micrometres in the manufacturer series overview |
| Warp measurement | Active Z-tracking compensation; optional pad-referencing 2D compensation |
| Auto-rework boundary | Solder-paste dispensing is an optional fitted add-on, not standard in every offer |
| Board-length boundary | 1,300 / optional 1,800 mm belongs to USX; do not assign it to an ordinary KY8030-3 |
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used Koh-Young KY8030-3 unit.
Key Features
Configuration Must Be Verified
The offer must identify KY8030-3 serial, camera resolution, optical sampling, conveyor limits, software licenses and fitted dispensing hardware; Known-deposit challenge, warped-board measurement, false calls, full-board timing, review records and printer-interface demonstration.
Buyer decision guide
When Koh-Young KY8030-3 Makes Sense — and When It May Not
Koh-Young KY8030-3 selection should begin with production requirements and evidence, not with a model name alone.
Application qualification
Koh-Young KY8030-3 Acceptance Plan
Qualify deposits, not a camera headline
For a KY8030-3 purchase, send representative paste deposits, the stencil design and a board with the difficult pad geometry retained. Include low-volume, excessive, offset and bridging examples with an agreed reference method. Compare repeated height, area and volume outputs rather than accepting only a coloured pass screen. Keep the proposed camera and sampling beside the test record. The fastest area-rate setting may not be the setting that resolves the smallest deposits in your assembly.
Keep legacy and current configurations separate
Record the serial, optical hardware, software version and licenses on the actual KY8030-3 before comparing a used offer with current manufacturer material. Request the usable board envelope and underside clearance from the appropriate manual and demonstrate conveyor transfer with a populated-board equivalent where required. Do not transfer USX long-board figures to the ordinary chassis. A current product illustration does not establish a camera upgrade, optional pad referencing, dispensing equipment or accessible process-control license on an older serial.
Demonstrate a usable printing feedback loop
Retain a complete board recipe, deposit-level results, false-call decisions and a timed transfer sequence during acceptance. If printer feedback or paste rework is included, identify the installed interface and hardware, then demonstrate the agreed workflow with appropriate supervision. Confirm calibration history, recoverable backups and the delivery list before ordering. Shenzhen dealer listings provide enquiry channels only; their wording does not verify current stock, offered-unit condition, warranty, an available license transfer or suitability for the buyer's process.
Typical Applications
Typical Applications for Koh-Young KY8030-3
Koh-Young KY8030-3 should be evaluated against the buyer’s dual-projection moire measurement evaluates deposit volume, area, height, offset and bridging after stencil printing. use retained pad-level measurements and the actual board recipe to qualify printing corrections. The final application fit depends on the evidence for the specific unit.
Before quotation
Three Koh-Young KY8030-3 Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
Which current camera choices requirement must the proposed Koh-Young KY8030-3 demonstrate?
Koh-Young KY8030-3 buyers should confirm this with actual-machine evidence before quotation.
2
What is included in this Koh-Young KY8030-3 offer: ky8030-3 serial, camera resolution, optical sampling, conveyor limits, software licenses and fitted dispensing hardware?
Koh-Young KY8030-3 buyers should confirm this with actual-machine evidence before quotation.
3
Can the Koh-Young KY8030-3 acceptance run document known-deposit challenge, warped-board measurement, false calls, full-board timing, review records and printer-interface demonstration?
Koh-Young KY8030-3 buyers should confirm this with actual-machine evidence before quotation.
Running video confirmation
Koh-Young KY8030-3 Running Video Review
Before shipment, review the relevant power-on, movement, operating state and visible condition for the specific offered unit.
Request a dated operating sequence of the offered Koh-Young KY8030-3. The model-image control requests evidence, not playback of a recorded video.
- Power-on and visible operating-state confirmation
- Dual-projection moire measurement evaluates deposit volume, area, height, offset and bridging after stencil printing. Use retained pad-level measurements and the actual board recipe to qualify printing corrections.
- Unit-specific condition evidence before export packing
Used-machine inspection
Inspection and Export Preparation for an Actual Koh-Young KY8030-3
- Nameplate and configurationModel, serial, year, voltage and installed options.
- Machine configurationMechanical, transport, sensing, camera, software and motion condition relevant to the quoted Koh-Young KY8030-3.
- Transport and softwareConveyor, sensors, program and line-interface evidence where applicable.
- Running and packing proofPower-on evidence, visible operation and export packing records.
Spare Parts
Koh-Young KY8030-3 Spare Parts Scope
Request a unit-specific Koh-Young KY8030-3 list for configuration-correct optical calibration references, board supports, conveyor service items, approved dispensing consumables where fitted and licensed recipe backups. Availability is not claimed on this review page.
Quotation checklist
Provide target assembly, process requirements, current camera choices, installed configuration and destination, required accessories and desired inspection evidence for the proposed Koh-Young KY8030-3.
FAQ
Common questions for overseas buyers evaluating a Koh-Young KY8030-3.
01Application
Which production task suits Koh-Young KY8030-3?
Dual-projection moire measurement evaluates deposit volume, area, height, offset and bridging after stencil printing. Use retained pad-level measurements and the actual board recipe to qualify printing corrections. Evaluate KY8030-3 when quantitative paste inspection can guide the printing process. A current catalogue speed, camera or software function cannot be assumed on an older used machine.
02Configuration
What should a buyer confirm for Koh-Young KY8030-3?
KY8030-3 serial, camera resolution, optical sampling, conveyor limits, software licenses and fitted dispensing hardware. Request the exact nameplate and option list.
03Unit evidence
Does this Koh-Young KY8030-3 illustration prove stock?
The Koh-Young KY8030-3 illustration is model-reference imagery, not a dated stock photograph. Serial, location, condition, price and running evidence require separate confirmation.
Export packing proof
Export Packing and Container Loading
The V3 scrolling proof gallery is retained. It describes LCSMT export preparation, not the condition of a particular Koh-Young KY8030-3 unit.
Send Your Koh-Young KY8030-3 Production Requirement
Share target assembly, process requirements, current camera choices, installed configuration and destination and inspection expectations. LCSMT can review whether an actual Koh-Young KY8030-3 configuration is a practical match.
