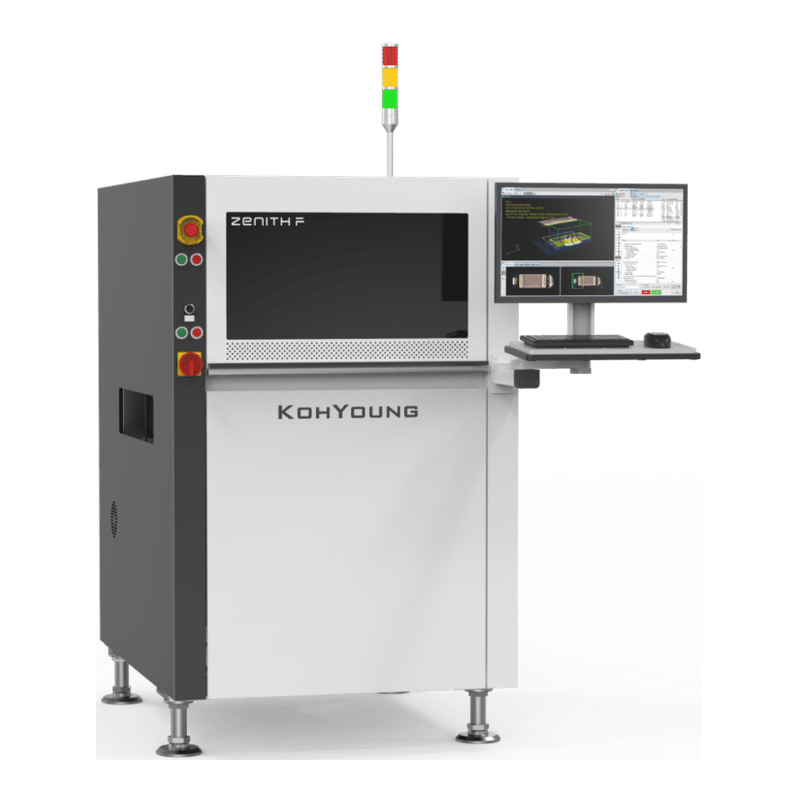

OverviewKoh-Young Zenith F Flexible PCB 3D AOI
The Koh-Young Zenith F applies 3D optical measurement to flexible printed-circuit assemblies, whose deformation creates different inspection problems from rigid PCB production. Shortlist Zenith F for a supported flexible assembly, not merely because a generic Zenith cabinet is available. Hidden joints remain outside an optical-only trial.
Manufacturer-published model data
Koh-Young Zenith F Technical Specifications
| Application | Flexible printed-circuit assembly inspection |
|---|---|
| Measurement | True 3D optical measurement |
| Compensation | Manufacturer describes board bend, rotation, contraction and expansion compensation |
| Process data | KSMART integration is described; installed scope needs confirmation |
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used Koh-Young Zenith F unit.
Key Features
Configuration Must Be Verified
The offer must identify Carrier/support design, deformation correction, optics and installed KSMART options; FPCB samples at real production deformation, raw height maps and review decisions.
Buyer decision guide
When Koh-Young Zenith F Makes Sense — and When It May Not
Koh-Young Zenith F selection should begin with production requirements and evidence, not with a model name alone.
Application qualification
Koh-Young Zenith F Acceptance Plan
Start with the supported flex shape
A Zenith F demonstration should use the production carrier, connector tails and support method. Photograph the flat and naturally deformed assembly before inspection. Ask which areas are constrained and which remain flexible. A bare rigid test coupon will not expose the registration and height-reference problems that motivated an FPCB-specific selection.
Keep hotbar evidence visible
Identify the hotbar joints, component shoulders and polarity marks that the optical view must see. Agree which accepted and defective samples enter the trial, including lift and displacement examples. Review the measurement maps beside the actual assembly. Zenith F optical coverage does not establish the condition of an inaccessible interface below a package.
Check recipe transfer under deformation
Reinspect several FPCB samples with the agreed bending and support variation, without silently retuning each one. Record both missed defects and false calls. If KSMART data exchange is requested, demonstrate the identifiers and permissions on the offered software. Confirm carrier spare parts and setup documents independently from the machine price.
