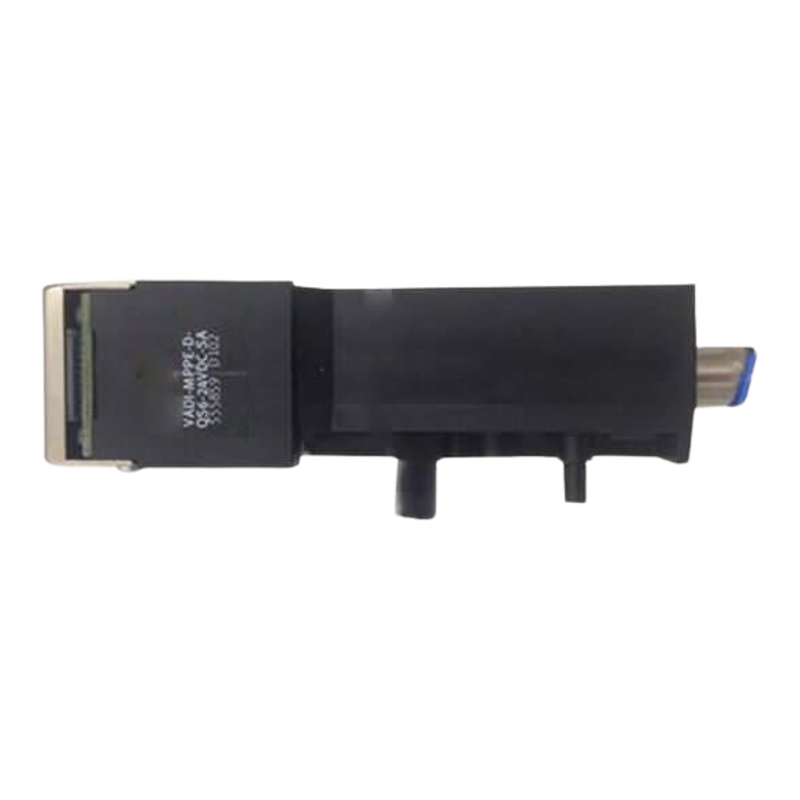

SIPLACE 03072785 vacuum reference
The available product information labels 03072785 as a Siemens X-machine vacuum generator/valve. Another source uses 03072785S01 for CP20A. Keep the leading zero and resolve the complete suffix, assembly function and applicable head before ordering.
Selected part reference
03072785
Confirm the offered item's maker, part code, condition, availability and machine fit before ordering.
03072785
- Model
- 03072785
- Part code
- 03072785
- Fit
- Confirm by unit
01 / Select precisely
Part details
Check the complete part number and the details needed to match your machine.
| Model | Part number | Compatibility | Details and checks |
|---|---|---|---|
| 03072785 | 03072785 | Supplier-listed reference; actual assembly, revision and installed fit require confirmation. |
|
02 / Check before ordering
Match the installed part
Check the installed code and machine configuration. Similar appearance or a shared series name does not establish interchangeability.
- Resolve the complete ordering suffix and head version rather than accepting the shortened03072785 base alone.
- Distinguish the valve, vacuum generator and larger assembly scope in the quotation.
- Use the applicable drawing to identify ports, connectors and mounting references.
- Agree actual-item assessment and return terms without inferring a coil rating or vacuum performance from the photograph.
03 / Make a useful decision
Selection and replacement advice
A shortened base code is a search reference, not approval for every suffixed assembly. Ask for the full installed and offered labels, applicable drawing position and documented replacement relationship. Do not silently turn 03072785 into 03072785S01. Compare a valve element, a vacuum-generating module and a mounted assembly by their stated contents and interfaces. The catalogue terminology does not prove that each name refers to the same physical scope. Request actual port, connector and mounting photographs and the relevant assessment for the offered module.
04 / Care and handling
Maintenance and handling guidance
Retain the installed label and original vacuum-related complaint before authorised service. Keep any line, filter and control findings separate from an assumed module failure.
Follow the applicable head and pneumatic-service instructions. No universal cleaning, pressure or adjustment method is specified for the shortened reference.
Before you ask
Questions about this part
Is 03072785S01 automatically the same replacement as 03072785?
No. The suffix and applicable assembly relationship require documentation. Preserve the complete actual labels rather than normalising them to a base code.
