Fuji CP6 WPA5141 reference

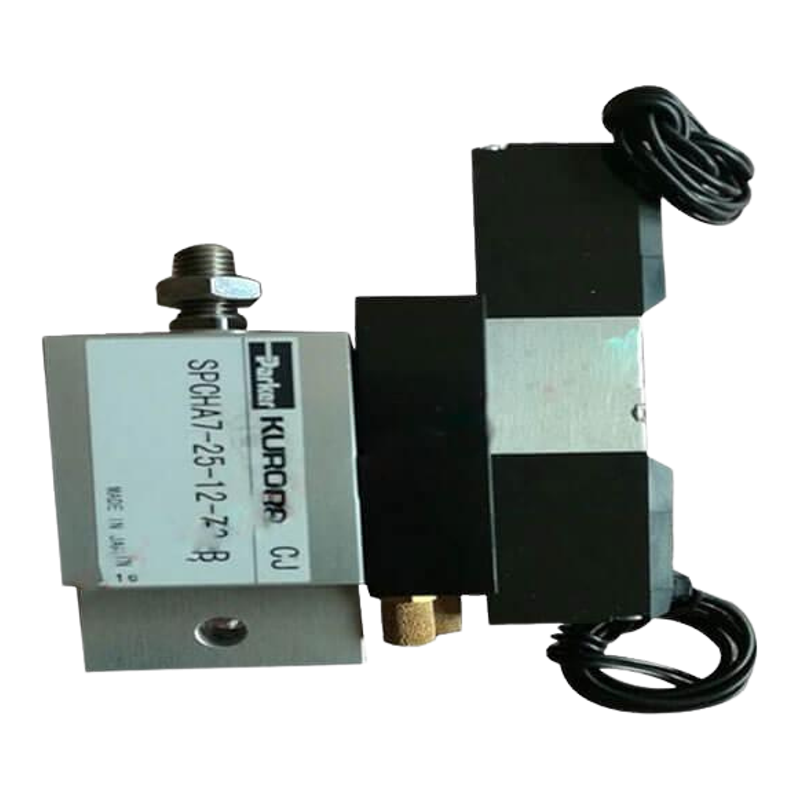

The supplier groups WPA5141, SPCHA7-25-12-Z3-B and PCD245-NB-D24 in one Fuji CP6 cylinder/valve listing. The picture shows a combined mechanism. Clarify which physical components and labels belong to the actual offer.
Selected part reference
WPA5141
Confirm the offered item's maker, part code, condition, availability and machine fit before ordering.
WPA5141
- Model
- WPA5141
- Part code
- WPA5141
- Fit
- Confirm by unit
01 / Select precisely
Part details
Check the complete part number and the details needed to match your machine.
| Model | Part number | Compatibility | Details and checks |
|---|---|---|---|
| WPA5141 | WPA5141 | Supplier-listed reference; actual assembly, revision and installed fit require confirmation. |
|
02 / Check before ordering
Match the installed part
Check the installed code and machine configuration. Similar appearance or a shared series name does not establish interchangeability.
- Separate the cylinder, valve and mounted-assembly contents before comparing quotations.
- Ask which actual label corresponds to WPA5141 and which corresponds to each separately listed component code.
- Retain mounting and connection references from the installed mechanism and applicable drawing.
- Agree the inspection scope without interpreting model-code characters as confirmed operating settings.
03 / Make a useful decision
Selection and replacement advice
A cylinder, its valve and a complete mounted combination are different purchasing scopes. Ask the seller to identify each supplied component against the actual item labels. Do not treat all identifiers in a catalogue heading as equivalent ordering codes. For a proposed replacement, retain the applicable drawing, mounting arrangement and connection details. Similar-looking assemblies or a shared CP6 description do not establish the same stroke, ports, coil requirements or installed sequence. Those properties need the relevant component and machine documents.
04 / Care and handling
Maintenance and handling guidance
Preserve the original movement complaint and component-identification photographs during qualified service. A visible valve does not establish which part is responsible for the symptom.
Apply the relevant isolation and component-maintenance instructions. Do not assign pressure, stroke settings or coil wiring from the supplier headline.
Before you ask
Questions about this part
Are all three identifiers interchangeable ordering numbers?
No. The listing contains several component references. Require a component-by-component contents list and readable actual labels.
Keep the part in context
Request a quote for this part
Choose the complete part number and quantity. Continue to our contact form with these details; your inquiry is sent only when you submit that form.
