JUKI 40001253 valve assembly

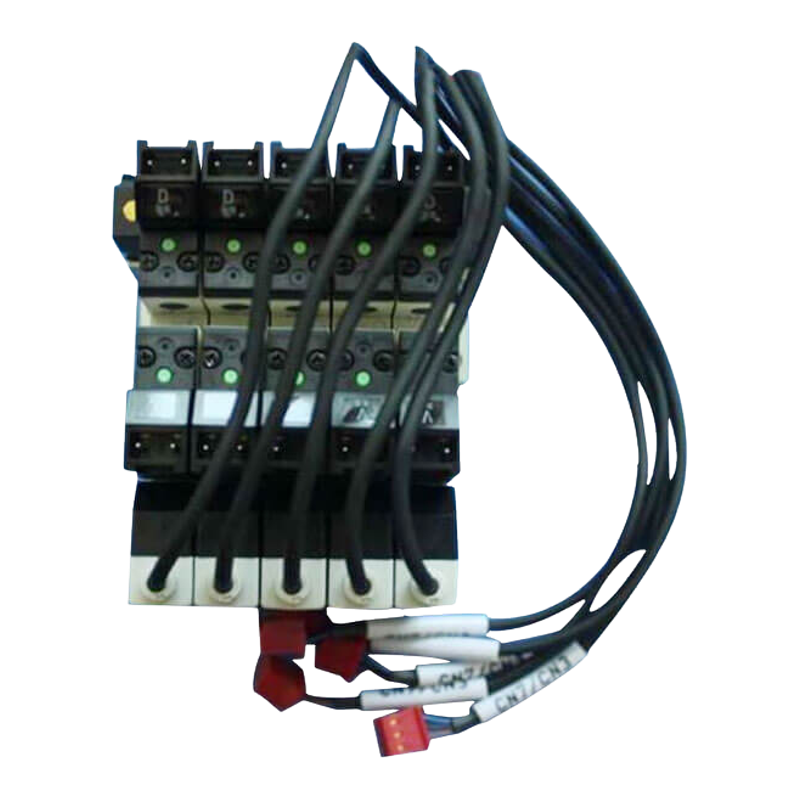

The source lists 40001253 as a JUKI2010 /2050 valve. The image shows a multi-section block with tubing and electrical leads. Specify whether those parts belong to the offer instead of treating every valve photograph as the same replacement scope.
Selected part reference
40001253
Confirm the offered item's maker, part code, condition, availability and machine fit before ordering.
40001253
- Model
- 40001253
- Part code
- 40001253
- Fit
- Confirm by unit
01 / Select precisely
Part details
Check the complete part number and the details needed to match your machine.
| Model | Part number | Compatibility | Details and checks |
|---|---|---|---|
| 40001253 | 40001253 | Supplier-listed reference; actual assembly, revision and installed fit require confirmation. |
|
02 / Check before ordering
Match the installed part
Check the installed code and machine configuration. Similar appearance or a shared series name does not establish interchangeability.
- Separate block-only, individual-element and complete tubing-and-lead quotations in the enquiry.
- Record the installed assembly code, machine version and available pneumatic drawing reference.
- Identify what connectors, tubes, fittings and mounting hardware are included or retained.
- Assign responsibility for checking routing and function against the applicable machine instructions.
03 / Make a useful decision
Selection and replacement advice
Compare an individual valve element, a populated block and an assembly with tubing by a written contents list. A low component-only price does not include the work or hardware needed to reproduce the pictured routing. Request port identification and actual offered-item photographs. The supplier title is an application claim, not a machine-specific pneumatic drawing. Keep the installed block code and machine revision with the enquiry. If the seller proposes a different block or a rebuilt assembly, require its documented connection and acceptance basis before ordering.
04 / Care and handling
Maintenance and handling guidance
Before authorised removal, preserve a port-and-connector record without relying on tube colour or photograph perspective alone.
Qualified service must follow the applicable isolation, depressurisation and inspection procedure. Do not add pressure settings or energise unidentified coils from a generic product listing.
Before you ask
Questions about this part
Does the picture provide a replacement routing diagram?
No. It does not establish the actual machine port assignments. Use the applicable drawing and a record tied to the installed assembly.
