Panasonic H16 theta board

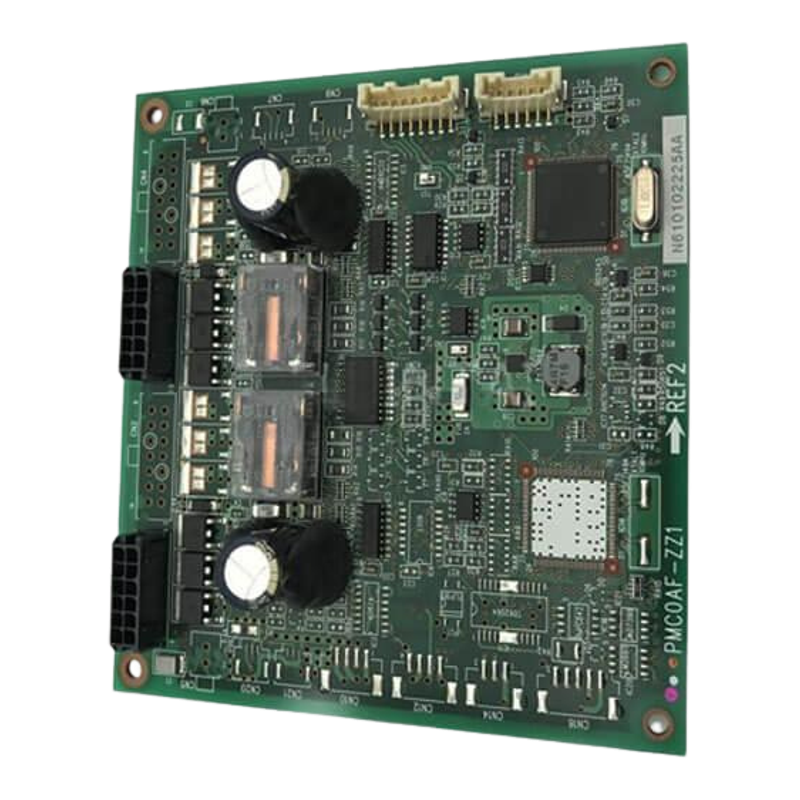

The source pairs N610102225AA with PMC0AF for an NPM-D / D2 H16 theta-control board. Keep this functional identity and the complete assembly label together. A board photograph does not establish the firmware, settings or head configuration of an offered replacement.
Selected part reference
N610102225AA / PMC0AF
Confirm the offered item's maker, part code, condition, availability and machine fit before ordering.
N610102225AA
- Model
- N610102225AA
- Part code
- N610102225AA / PMC0AF
- Fit
- Confirm by unit
01 / Select precisely
Part details
Check the complete part number and the details needed to match your machine.
| Model | Part number | Compatibility | Details and checks |
|---|---|---|---|
| N610102225AA | N610102225AA / PMC0AF | Supplier-listed NPM-D / D2 H16 theta-control reference. The exact board suffix and configured-head acceptance require confirmation. |
|
02 / Check before ordering
Match the installed part
Check the installed code and machine configuration. Similar appearance or a shared series name does not establish interchangeability.
- Record the complete N610102225AA and PMC0AF suffix/revision marks on the installed and offered boards.
- Identify the actual NPM machine version, H16 arrangement and original fault record.
- Request readable item labels and connector-side photographs rather than relying on this reference image.
- Agree how settings, authorised replacement status and head-function acceptance will be established.
03 / Make a useful decision
Selection and replacement advice
Compare an exact revision, an authorised supersession and a board repair as different proposals. Require the replacement relationship and acceptance scope for a proposed alternative; matching the PMC0AF family text is not enough. Keep the recorded theta-related complaint separate from the conclusion that this board has failed. Ask which diagnosis supports the replacement, what configuration information must be retained and who owns the machine-side verification.
04 / Care and handling
Maintenance and handling guidance
Retain configuration and connection records under the applicable service procedure; do not energise an unverified replacement to search for a matching setup.
Store and handle the electronics under the responsible ESD programme. Document visible contamination separately from functional or firmware evidence.
Before you ask
Questions about this part
Does a PMC0AF marking alone settle the revision?
No. Retain the complete assembly and PCB marks and the applicable replacement documentation. The family marking does not establish every suffix, firmware or machine configuration.
Keep the part in context
Request a quote for this part
Choose the complete part number and quantity. Continue to our contact form with these details; your inquiry is sent only when you submit that form.
