Yamaha / SMT spare parts
Yamaha CL12 feeder
A supplier-listed CL12 mm tape feeder. Keep the full KW1-M2200-10X reference and the required feeding setup together before ordering.
Selected part reference
KW1-M2200-10X
Source-listed reference. Exact fit, condition and availability require confirmation.
KW1-M2200-10X
- Model
- KW1-M2200-10X
- Part code
- KW1-M2200-10X
- Fit
- Confirm by unit
Photographs are bound to the selected part number. Reference images do not establish current inventory or interchangeability.
01 / Select precisely
Compare the family variants
Compare the complete part numbers, revisions and documented specifications. Similar appearance does not establish interchangeability.
| Variant | Part number | Compatibility | Specifications |
|---|---|---|---|
| KW1-M2200-10X | KW1-M2200-10X | Supplier-listed reference only. Exact installed fit, revision and offered-item identity require confirmation. |
|
Understand this reference
Application and identification

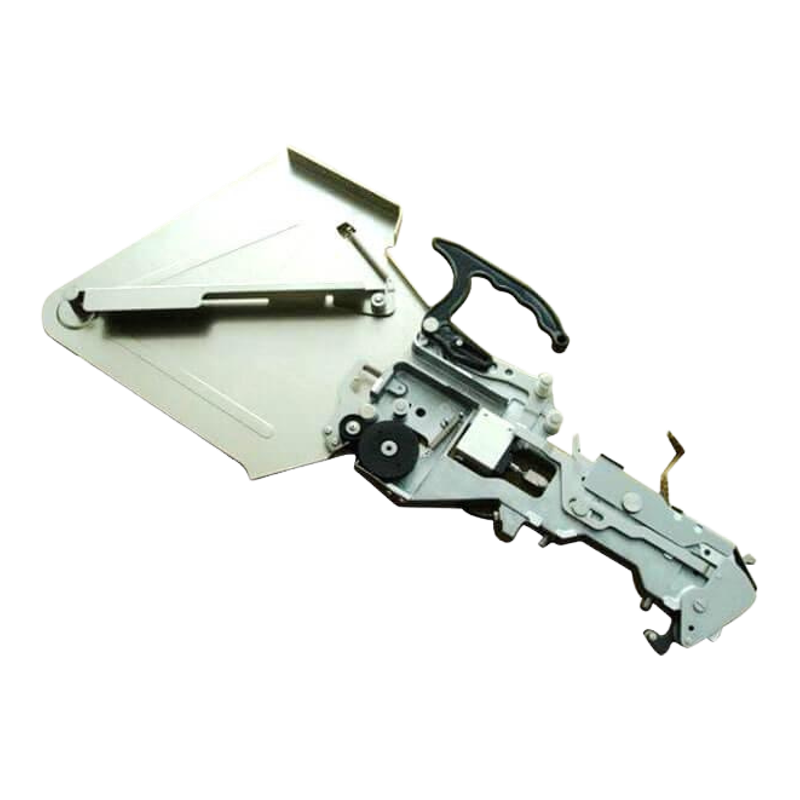

The retained supplier page names a CL12 mm feeder and KW1-M2200-10X. Its photograph shows a complete feeder rather than a loose guide or roller. The 12 mm designation is only one part of identification: this source does not establish the required feeding pitch, installed interface or an approved replacement for another suffix. Preserve the exact reference instead of shortening the request to “Yamaha 12 mm feeder.”
02 / Check before ordering
Match the installed part
The family page groups related variants; it does not imply that variants are interchangeable.
- Retain the installed feeder model, full code and machine reference; do not equate -10X with -300 or other suffixes.
- State the required tape width and feeding pitch independently, with the applicable setup reference.
- Ask whether the offer includes the complete feeder, reel support and any required guide or connection items.
03 / Make a useful decision
Selection and replacement advice
Compare a complete replacement feeder with a repair of the installed feeder as different supply scopes. A roller-only offer may omit the mechanism causing the observed problem; a complete feeder may include items the repair does not need. Ask the responsible service team which assembly is required. For another feeder family, tape width alone is insufficient: obtain the actual machine and feeder interface, component presentation and setup approval. No production-rate advantage or interchangeability is established here.
04 / Care and handling
Maintenance and handling guidance
Record the feeder identity, tape and symptom before service so an intermittent feeding complaint is not lost in a generic repair request.
Use the applicable feeder service procedure; this catalogue supplies no adjustment values, lubricant specification or service interval.
04 / Trace every claim
Sources, photos and condition
- SMT Feeder Yamaha CL12mm feeder KW1-M2200-10X · Single-code supplier listing and reviewed catalogue illustration only. No offered-item identity, OEM authenticity, installed fit, current stock or unlisted performance is established.
Stock, authenticity, condition, test results and interchangeability require separate evidence. A family photograph cannot prove them.
05 / Before you ask
Questions about this family
Does CL12 prove the feeding pitch?
No. The retained listing identifies the width designation but does not establish the required pitch for your setup.
Is KW1-M2200-10X interchangeable with -300?
No equivalence is established. Keep suffixes separate until the relevant parts documentation confirms a replacement.
Does the reference prove current stock?
No. Obtain photographs and a delivery description of the actual item offered.
06 / Keep the variant in context
Prepare a precise inquiry
Choose the complete part number and quantity, then open our inquiry form. Machine model, revision and installation evidence remain essential for matching.
