Yamaha / SMT spare parts
Yamaha CL12 idler roller
Supplier-described KW1-M229L-00X idler roller assembly for a CL12 feeder. Define the supplied assembly and installed reference before a repair purchase.
Selected part reference
KW1-M229L-00X
Source-listed reference. Exact fit, condition and availability require confirmation.
KW1-M229L-00X
- Model
- KW1-M229L-00X
- Part code
- KW1-M229L-00X
- Fit
- Confirm by unit
Photographs are bound to the selected part number. Reference images do not establish current inventory or interchangeability.
01 / Select precisely
Compare the family variants
Compare the complete part numbers, revisions and documented specifications. Similar appearance does not establish interchangeability.
| Variant | Part number | Compatibility | Specifications |
|---|---|---|---|
| KW1-M229L-00X | KW1-M229L-00X | Supplier-listed reference only. Exact installed fit, revision and offered-item identity require confirmation. |
|
Understand this reference
Application and identification

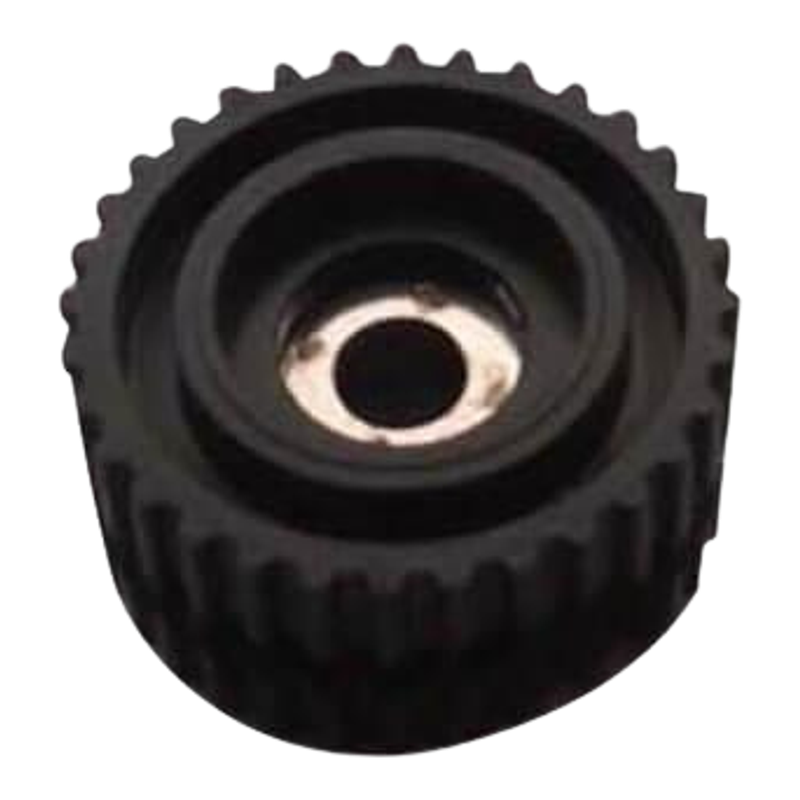

This reference is a roller assembly, not a complete tape feeder. The supplier title pairs KW1-M229L-00X with a CL12M feeder description. Its visible wheel and centre do not establish tooth geometry, bearing specification, dimensions or the contents of a replacement kit. A similar KW1-M229L prefix is not enough to adopt the -000 code used by another catalogue.
02 / Check before ordering
Match the installed part
The family page groups related variants; it does not imply that variants are interchangeable.
- Record the installed feeder and roller reference with the full suffix.
- Ask the seller to itemise the assembly contents and provide the offered item from both sides.
- Have dimensions and mounting details checked against applicable documentation; no scale can be recovered from this photograph.
03 / Make a useful decision
Selection and replacement advice
Before ordering, ask whether the service finding calls for the roller assembly, an associated component or the complete feeder. Compare quotation contents explicitly: wheel, any bearing or bush, retaining parts and other items must be named rather than inferred from this illustration. If the installed assembly carries a different suffix, request the documented relationship. Keep wear observations separate from the purchasing identity; an apparent wheel defect in a reference photo does not diagnose your feeder.
04 / Care and handling
Maintenance and handling guidance
Keep service photographs and observations tied to the actual feeder before parts are separated.
Use the applicable inspection and lubrication instructions; no bearing play, wear threshold or cleaning method is prescribed here.
04 / Trace every claim
Sources, photos and condition
- KW1-M229L-00X SMT Yamaha Idle Roller Assy CL12M Feeder · Single-code supplier listing and reviewed catalogue illustration only. No offered-item identity, OEM authenticity, installed fit, current stock or unlisted performance is established.
Stock, authenticity, condition, test results and interchangeability require separate evidence. A family photograph cannot prove them.
05 / Before you ask
Questions about this family
Does this include a complete CL12 feeder?
No complete feeder is described by this roller listing. Confirm the precise delivery scope.
Is -00X the same as -000?
That relationship is unverified and is not treated as an alias.
Can the image supply a bearing specification?
No. Obtain the specified assembly details for the actual installation.
06 / Keep the variant in context
Prepare a precise inquiry
Choose the complete part number and quantity, then open our inquiry form. Machine model, revision and installation evidence remain essential for matching.
