Yamaha SS feeder board

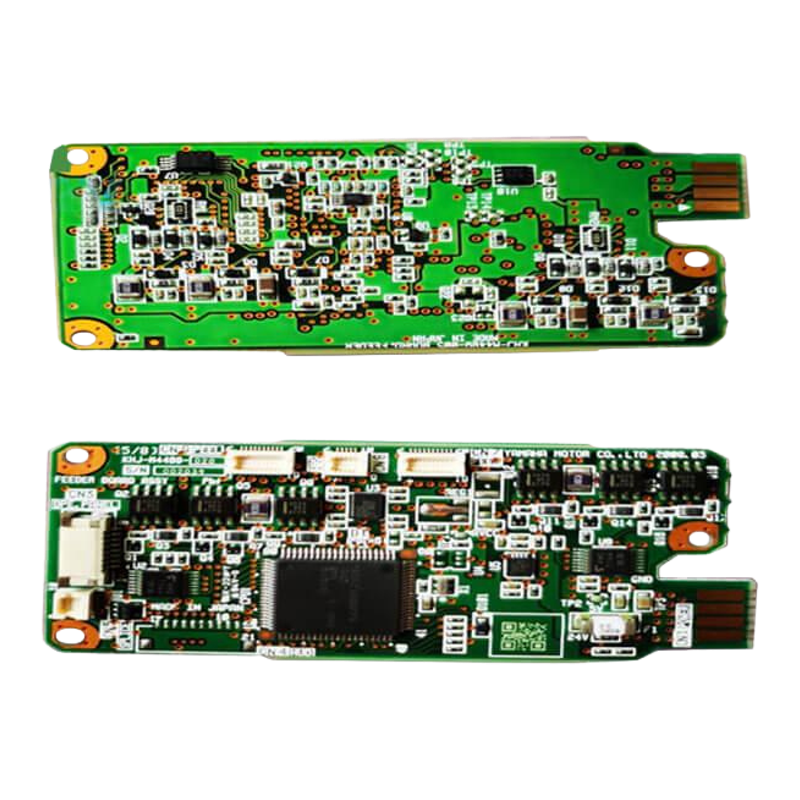

KHJ-M4488-A01 is listed as a Yamaha SS 8 mm feeder control board. The supplier image is a composite of board views. It is an identification reference, not evidence that two boards are included or that a complete feeder is supplied.
Selected part reference
KHJ-M4488-A01
Confirm the offered item's maker, part code, condition, availability and machine fit before ordering.
KHJ-M4488-A01
- Model
- KHJ-M4488-A01
- Part code
- KHJ-M4488-A01
- Fit
- Confirm by unit
01 / Select precisely
Part details
Check the complete part number and the details needed to match your machine.
| Model | Part number | Compatibility | Details and checks |
|---|---|---|---|
| KHJ-M4488-A01 | KHJ-M4488-A01 | Supplier lists an SS 8 mm feeder control board. Other suffixes and feeder versions are not approved substitutes. |
|
02 / Check before ordering
Match the installed part
Check the installed code and machine configuration. Similar appearance or a shared series name does not establish interchangeability.
- Read the complete KHJ-M4488-A01 code and revision from the installed item where available.
- Record the feeder model, width and original fault; distinguish an individual feeder fault from a machine-side issue.
- Confirm whether the offer includes one populated board, connector hardware or another assembly scope.
- Request the agreed feeder-function checks and a record tied to the actual offered item.
03 / Make a useful decision
Selection and replacement advice
Compare a board-only quote with a complete-feeder repair quote by what will be diagnosed and accepted. A feeder complaint can involve more than the control board; an assembly label alone does not identify the failed component. The original family research also contains other KHJ-M4488 and KHJ-M4484 references. Keep A01 unchanged in the enquiry. Ask for a documented replacement relationship before accepting a different suffix, even when the board outline looks similar.
04 / Care and handling
Maintenance and handling guidance
Preserve connector and board-orientation photographs before authorised service. Keep contamination and visible connector damage in the fault record.
Use the responsible ESD and service procedures for handling. Do not copy settings or interchange boards between feeders without the applicable approval.
Before you ask
Questions about this part
Is KHJ-M4488-A01 the same as a different KHJ-M4488 suffix?
No replacement equivalence is established here. Keep the complete installed and offered codes, revisions and feeder references together for a documented comparison.
