Yamaha / SMT spare parts
Yamaha SS electric feeders
Compare the SS feeder assembly, its complete ordering reference and its tape setup. A family photograph cannot identify every KHJ-MC500 or KHJ-MC600 configuration.
Selected part reference
SS
Confirm the offered item's maker, part code, condition, availability and machine fit before ordering.
SS
KHJ-MC500-001
Photo unavailable for this model. Confirm its code and request an exact-item photo.
KHJ-MC600-000
Photo unavailable for this model. Confirm its code and request an exact-item photo.
- Model
- SS
- Part code
- SS
- Fit
- Confirm by unit
01 / Select precisely
Compare the family variants
Compare complete part numbers, revisions and matching information.
| Model | Part number | Compatibility | Details and checks |
|---|---|---|---|
| SS | SS | Catalogue reference. Exact offered assembly, machine interface and revision require confirmation. |
|
| KHJ-MC500-001 | KHJ-MC500-001 | Separately listed designation; no matched photograph or substitution approval. |
|
| KHJ-MC600-000 | KHJ-MC600-000 | Separately listed designation; no matched photograph or substitution approval. |
|
Application and identification
Use and ordering context

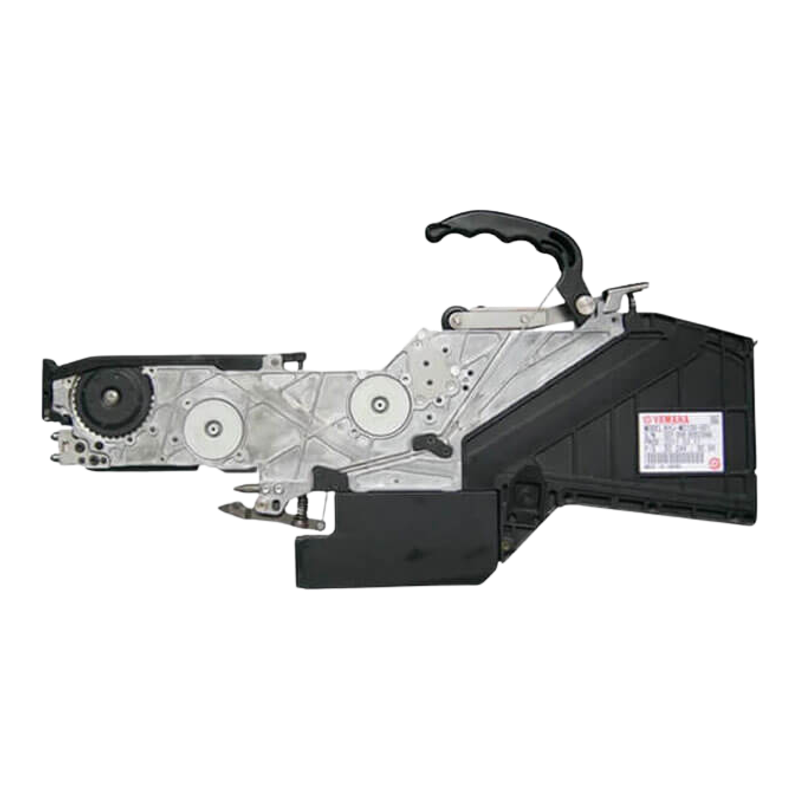

The supplier groups KHJ-MC500-001 and KHJ-MC600-000 under an SS electric-feeder heading. The complete feeder photograph is retained as an SS-family illustration, rather than assigned to either ordering code. This matters when a purchasing list names only SS: two offers can repeat that family name while leaving the required assembly unresolved. Keep the installed label and setup record alongside the enquiry.
02 / Check before ordering
Match the installed part
Check the installed code and machine configuration. Similar appearance or a shared series name does not establish interchangeability.
- Photograph the installed feeder label and retain every suffix; request the same information for the actual offered assembly.
- Document tape width, component presentation and selected feed pitch as separate setup fields.
- Agree whether the delivery includes reel support, tape guides and required connection items; identify any loose repair parts separately.
03 / Make a useful decision
Selection and replacement advice
Compare the complete SS feeder with a tape-guide repair as different purchases. A guide lever can address a defined mechanical repair scope; it cannot stand in for a complete electrical and mechanical assembly. For a proposed replacement, request the full ordering code and the applicable machine-interface basis. Do not accept a change from MC500 to MC600 solely because the housing resembles the reference photograph. The supplier application title is a lead to check, not a machine-to-feeder approval.
04 / Care and handling
Maintenance and handling guidance
Keep the feeder ID associated with its tape and pickup observations before it moves to a repair bench.
After an authorised guide or mechanism repair, request the applicable calibration record rather than treating visual similarity as acceptance.
Use the exact feeder instructions for cleaning and adjustment; no lubricant, pitch-setting method or universal service interval is supplied here.
Before you ask
Questions about this part
Which code does the hero photograph prove?
It illustrates the supplier-described SS family. The image does not resolve MC500 versus MC600 or the complete ordering suffix.
Is a tape-guide lever a replacement feeder?
No. It is a different delivery scope. Define the repair need before comparing a loose guide with a complete SS assembly.
Can YS12 and YS24 use every pictured SS feeder?
The listing mentions both platforms, but exact interface and configuration approval remain to be checked against the installed machine.
