Yamaha SS tape-guide lever

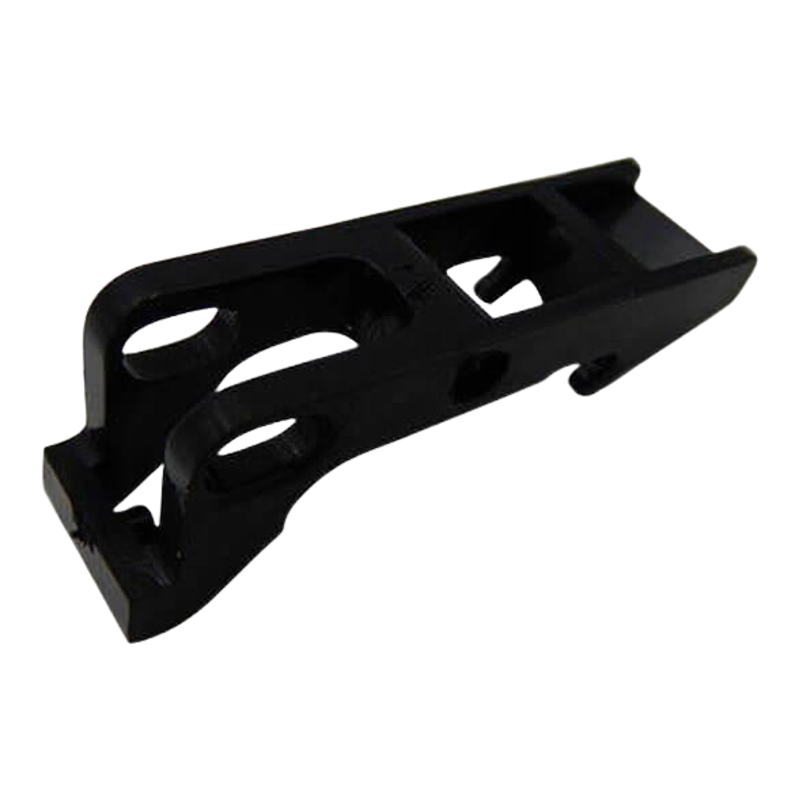

Supplier-described SS feeder tape-guide lever KHJ-MC145-00. Identify the repair position and supplied piece before ordering from a complete-feeder photograph.
Selected part reference
KHJ-MC145-00
Confirm the offered item's maker, part code, condition, availability and machine fit before ordering.
KHJ-MC145-00
- Model
- KHJ-MC145-00
- Part code
- KHJ-MC145-00
- Fit
- Confirm by unit
01 / Select precisely
Part details
Check the complete part number and the details needed to match your machine.
| Model | Part number | Compatibility | Details and checks |
|---|---|---|---|
| KHJ-MC145-00 | KHJ-MC145-00 | Catalogue reference. Exact offered assembly, machine interface and revision require confirmation. |
|
Application and identification
Use and ordering context
This listing concerns a loose guide or lever, not a complete SS electric feeder. The heading gives KHJ-MC145-00 and also uses the shorter KHJ-MC145 text. Keep the full version in the purchasing record rather than assuming omitted characters are irrelevant. The photographed profile is useful for discussing the repair scope, but it does not identify the condition of a current replacement or prove its fit on every SS feeder.
02 / Check before ordering
Match the installed part
Check the installed code and machine configuration. Similar appearance or a shared series name does not establish interchangeability.
- Retain the feeder ID and the location of the removed guide, together with its complete reference or the relevant parts diagram.
- Ask the seller to itemise the guide, mounting hardware and any mating pieces rather than quoting an undefined repair set.
- Resolve the shortened KHJ-MC145 text against the requested -00 reference before accepting a substitute.
03 / Make a useful decision
Selection and replacement advice
First determine whether the job requires the guide alone, associated fasteners or a larger feeder repair. Those scopes can produce very different quotations even when each is headed SS feeder parts. Ask the service team to identify the installed position and full reference. Compare an alternative guide by documented mounting and tape-path requirements; a similar black profile is not sufficient. Do not use the complete feeder price as a comparison until its included assembly scope is clear.
04 / Care and handling
Maintenance and handling guidance
Preserve the before-work tape-path and pickup complaint when a guide is replaced.
Have the responsible maintenance team assess presentation and calibration under the applicable feeder procedure after the intervention.
Do not derive adjustment dimensions, torque or a cleaning chemical from this reference photo.
Before you ask
Questions about this part
Does the photograph include a whole feeder?
No. This page identifies a supplier-described guide/lever reference and does not treat it as a complete SS feeder.
Is KHJ-MC145 automatically the same as -00?
No. The shortened heading is retained as source wording; it does not establish a documented suffix relationship.
What should follow a guide replacement?
Request the maintenance team’s applicable inspection or calibration record for the identified feeder, not a generic claim that the replacement looks correct.
Keep the part in context
Request a quote for this part
Choose the complete part number and quantity. Continue to our contact form with these details; your inquiry is sent only when you submit that form.
