Yamaha YS stick feeder
A supplier-described YS vibration feeder reference for tube-fed components; its OEM ordering code and machine approval are not established.
Selected part reference
YS Stick Feeder
Source-listed reference. Exact fit, condition and availability require confirmation.
YS stick feeder
- Model
- YS stick feeder
- Part code
- YS Stick Feeder
- Fit
- Confirm by unit
Photographs are bound to the selected part number. Reference images do not establish current inventory or interchangeability.
01 / Select precisely
Compare the family variants
Compare the complete part numbers, revisions and documented specifications. Similar appearance does not establish interchangeability.
| Variant | Part number | Compatibility | Specifications |
|---|---|---|---|
| YS stick feeder | YS Stick Feeder | Supplier family description only. No KHJ-MCH00-000 identity, YRM application or specific machine approval is assigned to this photograph. |
|
Understand this reference
Application and identification

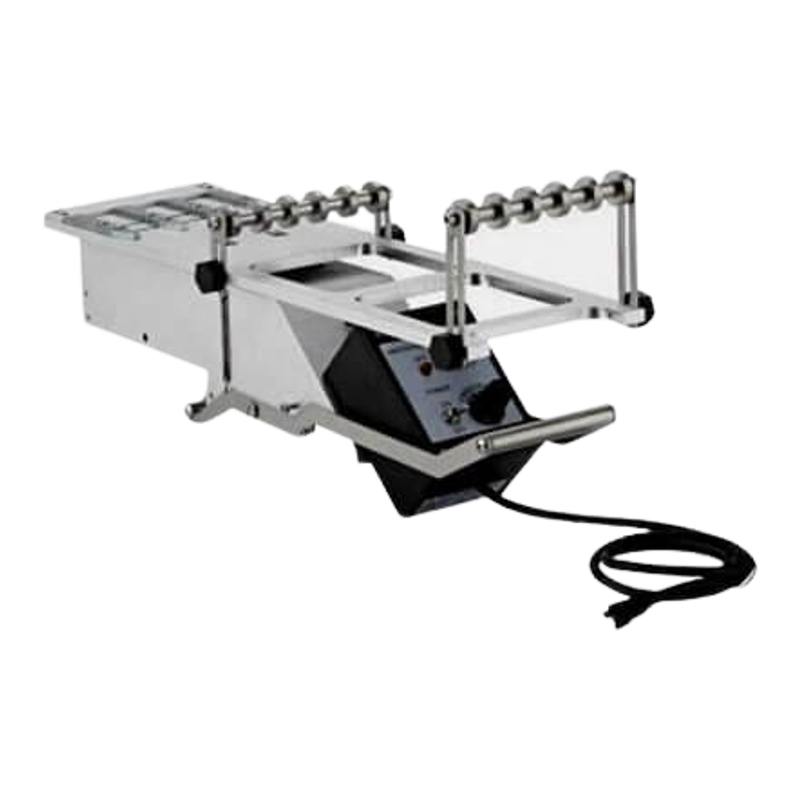

A stick feeder presents components supplied in tubes, so the purchasing question differs from selecting a reel-tape feeder by width and pitch. The retained supplier calls this reference a Yamaha YS stick or vibration feeder. Its photograph shows the feeder body, tube-support structure and cable, but no readable OEM ordering label. This page therefore uses the supplier family designation only. It does not silently assign the KHJ-MCH00-000 code from another listing or describe this picture as a YRM10/YRM20 accessory.
02 / Check before ordering
Match the installed part
The family page groups related variants; it does not imply that variants are interchangeable.
- Supply the installed feeder label if available; retain unknown ordering codes as unknown rather than copying a similar-looking reference.
- Describe the actual tubes, component orientation and intended machine; request the applicable interface and setup evidence.
- List included guides, supports, cable and control items in the quotation instead of inferring them from this reference photograph.
03 / Make a useful decision
Selection and replacement advice
First state how the required component is supplied: tube or reel, its documented package and orientation, and the intended machine setup. Compare a tube-feeding requirement with a tape-feeding alternative as different presentation arrangements; the existence of both does not mean the component or machine accepts both. For a repeat stick-feeder order, request the installed feeder identity, tube and component drawings, the offered assembly contents and its own interface photographs. For a change of presentation, obtain the responsible engineering team’s application decision before buying hardware. A complete feeder price and a tube-guide-only price describe different supply scopes.
04 / Care and handling
Maintenance and handling guidance
Record the tube and component used when a feeding symptom occurred. Keep the feeder identity and symptom history together; do not diagnose a vibration setting from a photograph.
Use the applicable service and isolation procedure for adjustment or cleaning. No vibration frequency, drive voltage, universal tube dimension or maintenance interval is specified here.
04 / Trace every claim
Sources, photos and condition
- Yamaha YS Stick Feeder Yamaha YS Vibration feeder · Supplier catalogue identification and application claims, not OEM authentication, installed fit or LCSMT stock.
Stock, authenticity, condition, test results and interchangeability require separate evidence. A family photograph cannot prove them.
05 / Before you ask
Questions about this family
Is this a verified KHJ-MCH00-000 photograph?
No. The source identifies a YS stick-feeder family, but the pictured ordering label is not readable. That precise code is not assigned.
Can it replace a reel-tape feeder?
No replacement approval is given. Component presentation, machine interface and the intended production setup require a separate application check.
Does the cable in the photo prove the required connection?
It only shows that the reference includes a visible cable. Pinout, electrical rating, included control items and machine recognition remain unverified.
06 / Keep the variant in context
Prepare a precise inquiry
Choose the complete part number and quantity, then open our inquiry form. Machine model, revision and installation evidence remain essential for matching.
