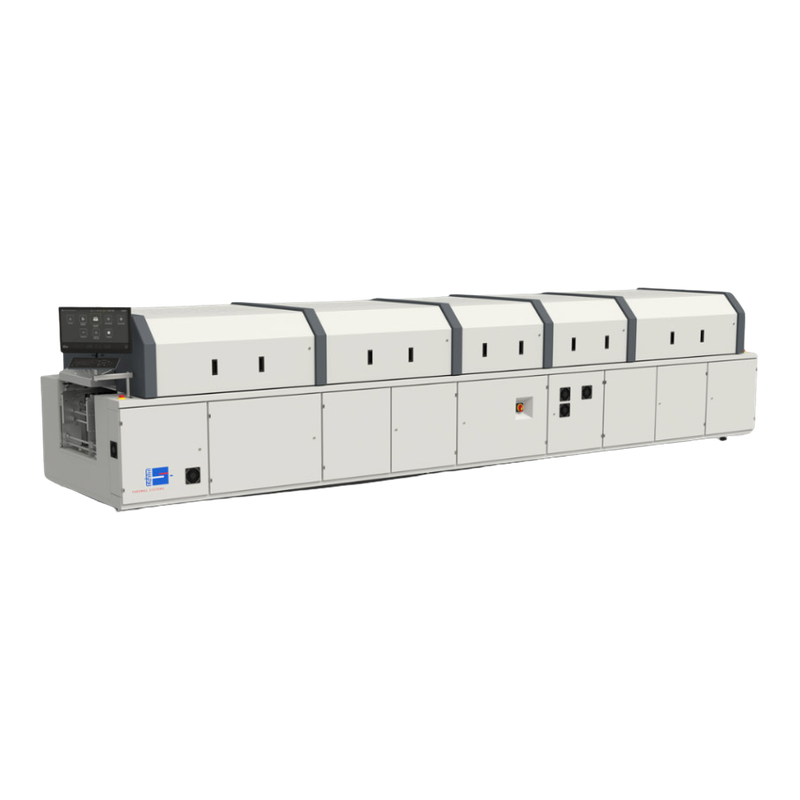

Convection family; representative manufacturer illustration
VisionXP+
- Process
- Circulating process gas with modular heating and cooling
- Boundary
- Photograph does not prove fitted vacuum or FA hardware
Home / Rehm Equipment / Rehm VisionXP+ Family
Model guide · unit evidence required
OverviewRehm VisionXP+ Family Convection Reflow Oven
Rehm VisionXP+ is a modular convection reflow platform. Ordinary convection and the Vacuum/FA configuration share this family guide, without claiming that the representative cabinet includes a vacuum chamber or formic-acid equipment. Compare VisionXP+ around the populated assembly, measured profile and installed process modules. The brochure zone length or a vacuum-capable family name does not establish usable line output, joint quality or the options on a used serial.
One family · configuration choices
Compare VisionXP+ Family versions
Heat solder-paste assemblies with circulating process gas, then control cooling to the agreed thermal profile. Vacuum processing, where fitted, adds a pressure-controlled step while solder remains molten; joint results require an actual assembly trial. Select by the actual board envelope, optical configuration and installation space—not the suffix alone.
Fitted process configuration; not a separate page
VisionXP+ Vacuum/FA
- Process
- Vacuum option with optional formic-acid process
- Boundary
- Require exact module, safety, utility and process evidence
What the versions share
- Process
- Convection Reflow Oven
- Purchase boundary
- Identify the version, installed options and application trial; no stock is asserted.
Manufacturer evidence checked 2026-10-07; numbers remain version-specific. Figures describe standard model configurations, not stock or an offered unit. Dimensions are listed in the source order and exclude the tower light where stated. The representative VisionXP+ Family image is not proof of another version or an offered unit’s condition. Request nameplate, configuration and board-trial evidence before selection.
Manufacturer-published model data
Rehm VisionXP+ Family Technical Specifications
| Published process-zone choices | 2,450 / 3,150 / 3,500 / 3,850 / 4,200 / 4,550 mm in the November 2025 brochure |
|---|---|
| Example configuration | VXP+ nitro 3500, Type 734; one example, not every installed oven |
| Convection hardware | EC fan motors and residue management using pyrolysis |
| Cooling boundary | Modular cooling; bottom cooling and CoolFlow depend on installed configuration |
| Vacuum boundary | Vacuum is a fitted option, not proof of a guaranteed void percentage |
| Formic-acid boundary | Optional process on the Vacuum/FA configuration; not inferred on legacy units |
| Software boundary | Identify installed ViCON version, interfaces and monitoring licenses |
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used Rehm VisionXP+ Family unit.
Key Features
Configuration Must Be Verified
The offer must identify VisionXP+ serial, zone layout, atmosphere, transport lanes, vacuum chamber, cooling hardware and software; Loaded-board thermal trace, oxygen readings where fitted, chamber pressure trace if vacuum is included, joint inspection and recipe recovery.
Buyer decision guide
When Rehm VisionXP+ Family Makes Sense — and When It May Not
Rehm VisionXP+ Family selection should begin with production requirements and evidence, not with a model name alone.
Application qualification
Rehm VisionXP+ Family Acceptance Plan
Specify the thermal task before the cabinet length
For a VisionXP+ enquiry, send the populated PCB dimensions, mass, underside projections and the paste process window. Identify the parts with the greatest thermal mass and those with the lowest temperature tolerance. Ask for the installed preheat, peak and cooling layout rather than selecting an oven solely from its total length. Request a thermocouple trace with the planned loading pattern and retain board spacing, conveyor speed and exit temperature. Catalogue example throughput is not the completed-board rate for this assembly.
Separate convection from a witnessed vacuum process
Identify whether the offered VisionXP+ has ordinary convection equipment or a fitted vacuum module before discussing void reduction. For a vacuum offer, retain the pressure history in the process chamber alongside the molten-solder interval and the subsequent joint inspection. Agree the inspection method, sample size and acceptance limits with the buyer. A pump rating alone does not describe chamber performance, and a family photograph cannot establish a pressure sensor, chamber seals or an installed process module. Request option identification before assuming formic-acid operation or a supported retrofit.
Inspect residue handling, cooling and recoverability
Ask for safely isolated views of pyrolysis equipment, flux collection, heat exchangers, conveyor support and chamber seals before cleaning hides the service condition. Match the actual gas, water and extraction requirements to the serial-specific manual. If bottom cooling, CoolFlow or process monitoring is part of the offer, identify the fitted hardware and license and demonstrate the agreed workflow. Retain the recipe, calibration history, alarm log and an authorized recovery procedure. Rehm China and the independent Shenzhen Boyu catalogue are enquiry channels only; neither establishes current stock, condition, warranty or installed options.
Typical Applications
Typical Applications for Rehm VisionXP+ Family
Rehm VisionXP+ Family should be evaluated against the buyer’s heat solder-paste assemblies with circulating process gas, then control cooling to the agreed thermal profile. vacuum processing, where fitted, adds a pressure-controlled step while solder remains molten; joint results require an actual assembly trial. The final application fit depends on the evidence for the specific unit.
Before quotation
Three Rehm VisionXP+ Family Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
Which published process-zone choices requirement must the proposed Rehm VisionXP+ Family demonstrate?
Rehm VisionXP+ Family buyers should confirm this with actual-machine evidence before quotation.
2
What is included in this Rehm VisionXP+ Family offer: visionxp+ serial, zone layout, atmosphere, transport lanes, vacuum chamber, cooling hardware and software?
Rehm VisionXP+ Family buyers should confirm this with actual-machine evidence before quotation.
3
Can the Rehm VisionXP+ Family acceptance run document loaded-board thermal trace, oxygen readings where fitted, chamber pressure trace if vacuum is included, joint inspection and recipe recovery?
Rehm VisionXP+ Family buyers should confirm this with actual-machine evidence before quotation.
Running video confirmation
Rehm VisionXP+ Family Running Video Review
Before shipment, review the relevant power-on, movement, operating state and visible condition for the specific offered unit.
Request a dated operating sequence of the offered Rehm VisionXP+ Family. The model-image control requests evidence, not playback of a recorded video.
- Power-on and visible operating-state confirmation
- Heat solder-paste assemblies with circulating process gas, then control cooling to the agreed thermal profile. Vacuum processing, where fitted, adds a pressure-controlled step while solder remains molten; joint results require an actual assembly trial.
- Unit-specific condition evidence before export packing
Used-machine inspection
Inspection and Export Preparation for an Actual Rehm VisionXP+ Family
- Nameplate and configurationModel, serial, year, voltage and installed options.
- Machine configurationMechanical, transport, sensing, camera, software and motion condition relevant to the quoted Rehm VisionXP+ Family.
- Transport and softwareConveyor, sensors, program and line-interface evidence where applicable.
- Running and packing proofPower-on evidence, visible operation and export packing records.
Spare Parts
Rehm VisionXP+ Family Spare Parts Scope
Request a unit-specific Rehm VisionXP+ Family list for serial-compatible conveyor supports, fans, heaters, flux collectors, seals, calibrated thermal and pressure references and authorized recipe backups. Availability is not claimed on this review page.
Quotation checklist
Provide target assembly, process requirements, published process-zone choices, installed configuration and destination, required accessories and desired inspection evidence for the proposed Rehm VisionXP+ Family.
FAQ
Common questions for overseas buyers evaluating a Rehm VisionXP+ Family.
01Application
Which production task suits Rehm VisionXP+ Family?
Heat solder-paste assemblies with circulating process gas, then control cooling to the agreed thermal profile. Vacuum processing, where fitted, adds a pressure-controlled step while solder remains molten; joint results require an actual assembly trial. Compare VisionXP+ around the populated assembly, measured profile and installed process modules. The brochure zone length or a vacuum-capable family name does not establish usable line output, joint quality or the options on a used serial.
02Configuration
What should a buyer confirm for Rehm VisionXP+ Family?
VisionXP+ serial, zone layout, atmosphere, transport lanes, vacuum chamber, cooling hardware and software. Request the exact nameplate and option list.
03Unit evidence
Does this Rehm VisionXP+ Family illustration prove stock?
The Rehm VisionXP+ Family illustration is model-reference imagery, not a dated stock photograph. Serial, location, condition, price and running evidence require separate confirmation.
Export packing proof
Export Packing and Container Loading
The V3 scrolling proof gallery is retained. It describes LCSMT export preparation, not the condition of a particular Rehm VisionXP+ Family unit.
Send Your Rehm VisionXP+ Family Production Requirement
Share target assembly, process requirements, published process-zone choices, installed configuration and destination and inspection expectations. LCSMT can review whether an actual Rehm VisionXP+ Family configuration is a practical match.
