OverviewTRI TR7007Q/QI Plus 3D Solder Paste Inspection System

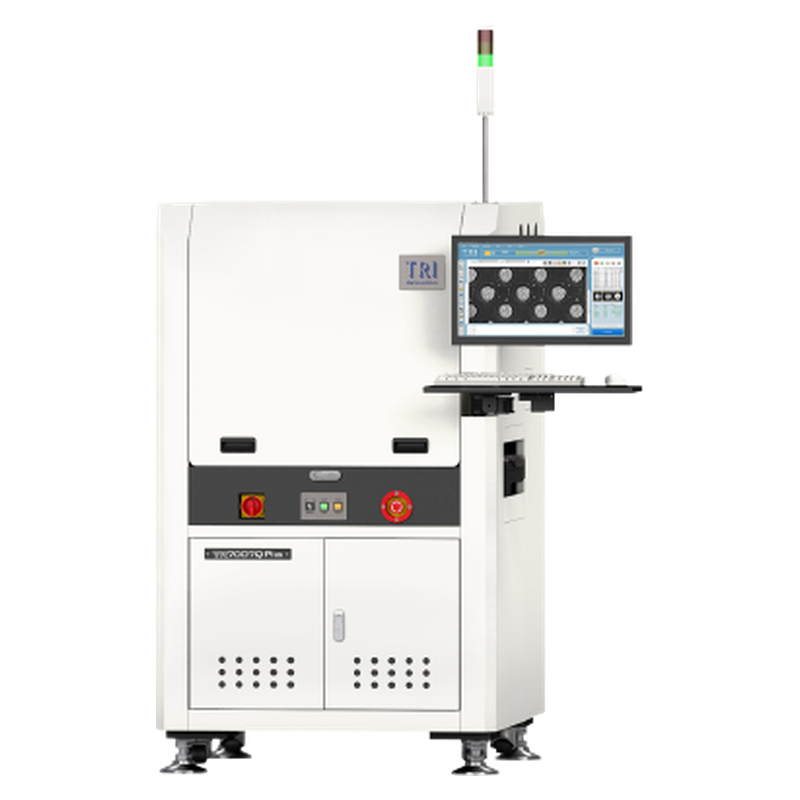

The TR7007Q/QI Plus family checks solder-paste deposits with 3D fringe projection and enhanced 2D lighting. The reviewed machine image shows the TR7007Q Plus variant; confirm the exact Q or QI nameplate and installed camera, projector and software configuration before quotation.
Manufacturer-published model data
TRI TR7007Q/QI Plus Technical Specifications
| Imaging | Stop-and-go 3D SPI with 4 MP or 12 MP camera options and 5.5, 6, 10, 12 or 15 µm factory-set imaging resolutions. |
|---|---|
| 3D and lighting | Four-way digital fringe pattern and enhanced RGB+white 2D illumination in TRI's model data. |
| Board envelope | For the standard Q/QI Plus: 400 × 330 mm maximum at 5.5 or 6 µm; 510 × 460 mm at 10, 12 or 15 µm. |
| PCB limits | Thickness 0.5–6 mm; maximum weight 3 kg, with 5 kg listed as an option. |
| Published inspection | Insufficient/excess paste, missing paste, bridging and shape deformity; height, area, volume and offset measurements. |
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used TRI TR7007Q/QI Plus unit.
Key Features
Configuration Must Be Verified
The actual TRI TR7007Q/QI Plus quote should identify the exact Q/QI nameplate, camera, projectors, calibration, software, conveyor, interfaces, voltage and visible condition.
Buyer decision guide
When TRI TR7007Q/QI Plus Makes Sense — and When It May Not
TRI TR7007Q/QI Plus selection should begin with production requirements and evidence, not with a model name alone.
Typical Applications
Typical Applications for TRI TR7007Q/QI Plus
TRI TR7007Q/QI Plus should be evaluated against the buyer’s paste defect list, board envelope, chosen imaging resolution, inspection program and line feedback. The final application fit depends on the evidence for the specific unit.
Before quotation
Three TRI TR7007Q/QI Plus Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
Which paste defects and deposit measurements must be detected on the sample board?
TRI TR7007Q/QI Plus buyers should confirm this with actual-machine evidence before quotation.
2
Is the offered nameplate Q Plus or QI Plus, and which camera, resolution and projector setup is installed?
TRI TR7007Q/QI Plus buyers should confirm this with actual-machine evidence before quotation.
3
Can the unit demonstrate calibration, board transfer, review and SPC/feedback records on the intended program?
TRI TR7007Q/QI Plus buyers should confirm this with actual-machine evidence before quotation.
Running video confirmation
TRI TR7007Q/QI Plus Running Video Review
Before shipment, review the relevant power-on, movement, operating state and visible condition for the specific offered unit.
This review page does not present a reference clip as proof of the actual machine. A reviewed unit-specific recording is required before it can be attached here.
- Power-on and visible operating-state confirmation
- board transfer, paste scan, defect review, calibration state and data output
- Unit-specific condition evidence before export packing
Running video pendingA reviewed local video is not yet attached. Open this panel for unit-specific proof.
Used-machine inspection
Inspection and Export Preparation for an Actual TRI TR7007Q/QI Plus
- Nameplate and configurationModel, serial, year, voltage and installed options.
- Machine configurationMechanical, transport, sensing, camera, software and motion condition relevant to the quoted TRI TR7007Q/QI Plus.
- Transport and softwareConveyor, sensors, program and line-interface evidence where applicable.
- Running and packing proofPower-on evidence, visible operation and export packing records.
Spare Parts
TRI TR7007Q/QI Plus Spare Parts Scope
Request a unit-specific TRI TR7007Q/QI Plus list for cameras, projectors, lighting, motion components, conveyor, computer and maintenance items. Availability is not claimed on this review page.
Quotation checklist
Provide board dimensions, solder-paste inspection targets, optical setup, software/interfaces, voltage and destination, required accessories and desired inspection evidence for the proposed TRI TR7007Q/QI Plus.
FAQ
Common questions for overseas buyers evaluating a TRI TR7007Q/QI Plus.
01Variant
Does the image prove both Q Plus and QI Plus?
No. It is a Q Plus machine image from TRI's grouped Q/QI page; the offered variant needs its own nameplate evidence.
02Board size
Is 510 × 460 mm available at every resolution?
No. TRI lists 400 × 330 mm at 5.5/6 µm for the standard Q/QI Plus family.
03Connectivity
Is a closed-loop interface guaranteed on a used unit?
No. Confirm the installed software, licenses and line interfaces with a live demonstration.
Export packing proof
Export Packing and Container Loading
The V3 scrolling proof gallery is retained. It describes LCSMT export preparation, not the condition of a particular TRI TR7007Q/QI Plus unit.
Send Your TRI TR7007Q/QI Plus Production Requirement
Share board dimensions, solder-paste inspection targets, optical setup, software/interfaces, voltage and destination and inspection expectations. LCSMT can review whether an actual TRI TR7007Q/QI Plus configuration is a practical match.
