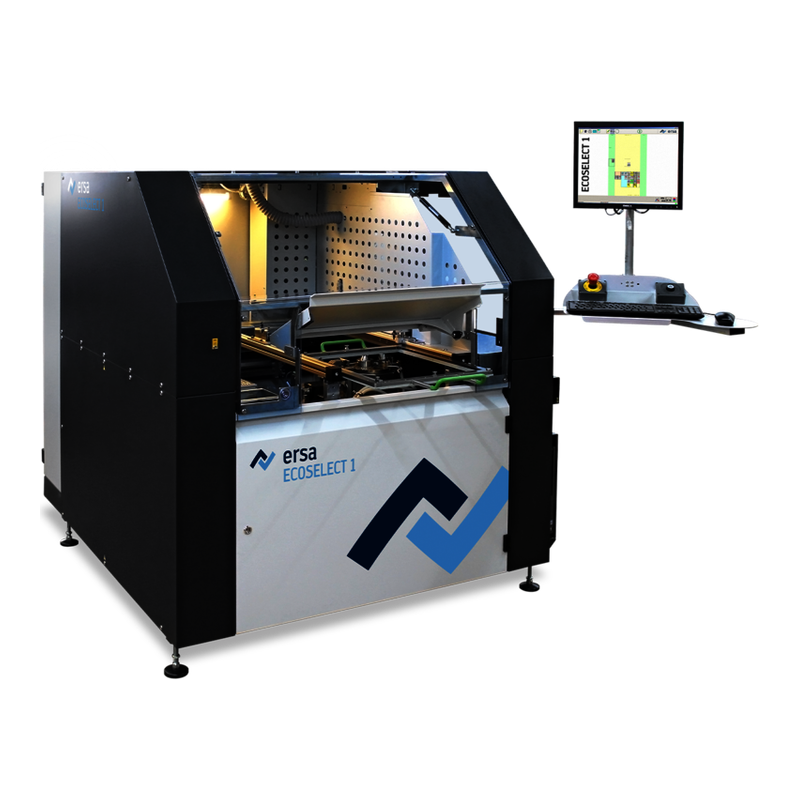

OverviewErsa ECOSELECT 1 Batch Selective Soldering System
ECOSELECT 1 is a compact semi-automatic selective-soldering system using technology from the VERSAFLOW 3 platform. Select for a defined cell workflow; compare manual handling and cycle requirements with an inline VERSAFLOW offer.
Manufacturer-published model data
Ersa ECOSELECT 1 Technical Specifications
| Footprint | Less than 3 m² |
|---|---|
| Dimensions | 1,700 × 1,500 × 1,612 mm |
| Pcb width | 15–406 mm; 508 mm optional |
| Pcb length | 15–508 mm |
| Board weight | 8 kg; 12 kg optional |
| Solder pots | Mini-wave electromagnetic pots, up to two; 13 kg pot capacity |
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used Ersa ECOSELECT 1 unit.
Key Features
Configuration Must Be Verified
The Ersa ECOSELECT 1 offer must document Mask holder, fluxer, preheat and one/two-pot configuration; Nozzle wetting, thermal profile, solder-joint and operator-cycle evidence.
Buyer decision guide
When Ersa ECOSELECT 1 Makes Sense — and When It May Not
Ersa ECOSELECT 1 selection should begin with production requirements and evidence, not with a model name alone.
Application qualification
Ersa ECOSELECT 1 Acceptance Plan
Include the operator cycle
For ECOSELECT 1, time loading, clamping, soldering and unloading together. Check that the universal mask holder supports the intended board without obstructing joints. A compact footprint is useful only if safe access, material handling and the required production cadence also fit the cell.
Match the mini-wave to the joint
An ECOSELECT 1 trial should demonstrate the difficult through-hole joints with the quoted nozzle and alloy. Record flux application and preheat before assessing wetting. Identify whether optional width or weight capability is actually included; a family brochure is not an option inventory.
Typical Applications
Typical Applications for Ersa ECOSELECT 1
Cell-based selective soldering of through-hole joints on mixed assemblies where a batch workflow is appropriate. Select for a defined cell workflow; compare manual handling and cycle requirements with an inline VERSAFLOW offer.
Before quotation
Three Ersa ECOSELECT 1 Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
Which footprint requirement must the proposed Ersa ECOSELECT 1 demonstrate?
Ersa ECOSELECT 1 buyers should confirm this with actual-machine evidence before quotation.
2
What is included in this Ersa ECOSELECT 1 offer: mask holder, fluxer, preheat and one/two-pot configuration?
Ersa ECOSELECT 1 buyers should confirm this with actual-machine evidence before quotation.
3
Can the Ersa ECOSELECT 1 acceptance run document nozzle wetting, thermal profile, solder-joint and operator-cycle evidence?
Ersa ECOSELECT 1 buyers should confirm this with actual-machine evidence before quotation.
Running video confirmation
Ersa ECOSELECT 1 Running Video Review
Before shipment, review the relevant power-on, movement, operating state and visible condition for the specific offered unit.
Request a dated operating sequence for the offered Ersa ECOSELECT 1. The preview is a model illustration; the orange control requests evidence, not playback.
- Power-on and visible operating-state confirmation
- Cell-based selective soldering of through-hole joints on mixed assemblies where a batch workflow is appropriate.
- Unit-specific condition evidence before export packing
Used-machine inspection
Inspection and Export Preparation for an Actual Ersa ECOSELECT 1
- Nameplate and configurationModel, serial, year, voltage and installed options.
- Machine configurationMechanical, transport, sensing, camera, software and motion condition relevant to the quoted Ersa ECOSELECT 1.
- Transport and softwareConveyor, sensors, program and line-interface evidence where applicable.
- Running and packing proofPower-on evidence, visible operation and export packing records.
Spare Parts
Ersa ECOSELECT 1 Spare Parts Scope
Request a unit-specific Ersa ECOSELECT 1 list for selective nozzles, fluxer parts, mask tooling, solder-pot and preheater maintenance items. Availability is not claimed on this review page.
Quotation checklist
Provide target assembly, process requirements, footprint, installed configuration and destination, required accessories and desired inspection evidence for the proposed Ersa ECOSELECT 1.
FAQ
Common questions for overseas buyers evaluating a Ersa ECOSELECT 1.
01Application
Which production task suits Ersa ECOSELECT 1?
Cell-based selective soldering of through-hole joints on mixed assemblies where a batch workflow is appropriate. Select for a defined cell workflow; compare manual handling and cycle requirements with an inline VERSAFLOW offer.
02Configuration
What should a buyer confirm for Ersa ECOSELECT 1?
Mask holder, fluxer, preheat and one/two-pot configuration. Request the exact nameplate and option list.
03Unit evidence
Does this Ersa ECOSELECT 1 illustration prove stock?
The Ersa ECOSELECT 1 illustration is model-reference imagery, not a dated stock photograph. Serial, location, condition, price and running evidence require separate confirmation.
Export packing proof
Export Packing and Container Loading
The V3 scrolling proof gallery is retained. It describes LCSMT export preparation, not the condition of a particular Ersa ECOSELECT 1 unit.
Send Your Ersa ECOSELECT 1 Production Requirement
Share target assembly, process requirements, footprint, installed configuration and destination and inspection expectations. LCSMT can review whether an actual Ersa ECOSELECT 1 configuration is a practical match.
