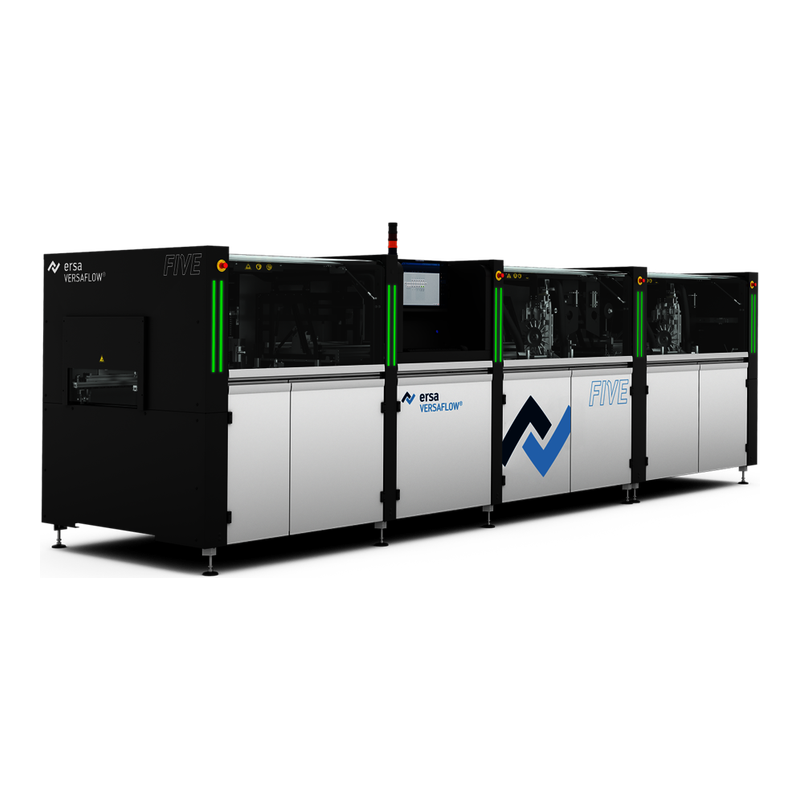

OverviewErsa VERSAFLOW FIVE Inline Selective Soldering System
VERSAFLOW FIVE adds segmented matrix heating and VERSAFLEX 2.0 processing to Ersa’s inline selective-soldering range. Justify the configuration using board diversity, independent-cycle needs and operator intervention—not maximum output alone.
Manufacturer-published model data
Ersa VERSAFLOW FIVE Technical Specifications
| Board format | Up to 685 × 508 mm, or two boards up to 350 × 508 mm |
|---|---|
| Dimensions | 4,100 × 1,789 × 1,643 mm |
| Conveyor speed | 0.2–15 m/min |
| Board weight | 12 kg; heavy-duty 25 kg configuration |
| Solder temperature | Up to 320 °C |
| Heating concept | Individually controlled matrix-heater segments |
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used Ersa VERSAFLOW FIVE unit.
Key Features
Configuration Must Be Verified
The Ersa VERSAFLOW FIVE offer must document VERSAFLEX module, matrix-heater segments, nozzle changer and CAD license scope; Independent-board recipe, nozzle-change sequence and thermal/joint inspection.
Buyer decision guide
When Ersa VERSAFLOW FIVE Makes Sense — and When It May Not
Ersa VERSAFLOW FIVE selection should begin with production requirements and evidence, not with a model name alone.
Application qualification
Ersa VERSAFLOW FIVE Acceptance Plan
Prove independent jobs
For VERSAFLOW FIVE, demonstrate two different representative boards with the proposed module configuration. Review waiting times, routing and recipe changes, including which actions still need an operator. Independent processing is a platform capability, not proof of the quoted installation’s net throughput.
Identify the automation package
Request the VERSAFLOW FIVE nozzle-changer hardware, flux-cleaning arrangement and software option list separately. Observe a program change and record nozzle recognition and wetting. Match the matrix heating area to the real board instead of applying a broad thermal recipe to every product.
Typical Applications
Typical Applications for Ersa VERSAFLOW FIVE
High-mix or high-volume selective soldering where independent processing and program changes affect line utilization. Justify the configuration using board diversity, independent-cycle needs and operator intervention—not maximum output alone.
Before quotation
Three Ersa VERSAFLOW FIVE Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
Which board format requirement must the proposed Ersa VERSAFLOW FIVE demonstrate?
Ersa VERSAFLOW FIVE buyers should confirm this with actual-machine evidence before quotation.
2
What is included in this Ersa VERSAFLOW FIVE offer: versaflex module, matrix-heater segments, nozzle changer and cad license scope?
Ersa VERSAFLOW FIVE buyers should confirm this with actual-machine evidence before quotation.
3
Can the Ersa VERSAFLOW FIVE acceptance run document independent-board recipe, nozzle-change sequence and thermal/joint inspection?
Ersa VERSAFLOW FIVE buyers should confirm this with actual-machine evidence before quotation.
Running video confirmation
Ersa VERSAFLOW FIVE Running Video Review
Before shipment, review the relevant power-on, movement, operating state and visible condition for the specific offered unit.
Request a dated operating sequence for the offered Ersa VERSAFLOW FIVE. The preview is a model illustration; the orange control requests evidence, not playback.
- Power-on and visible operating-state confirmation
- High-mix or high-volume selective soldering where independent processing and program changes affect line utilization.
- Unit-specific condition evidence before export packing
Used-machine inspection
Inspection and Export Preparation for an Actual Ersa VERSAFLOW FIVE
- Nameplate and configurationModel, serial, year, voltage and installed options.
- Machine configurationMechanical, transport, sensing, camera, software and motion condition relevant to the quoted Ersa VERSAFLOW FIVE.
- Transport and softwareConveyor, sensors, program and line-interface evidence where applicable.
- Running and packing proofPower-on evidence, visible operation and export packing records.
Spare Parts
Ersa VERSAFLOW FIVE Spare Parts Scope
Request a unit-specific Ersa VERSAFLOW FIVE list for selective nozzles, nozzle-change tooling, flux heads, pumps and matrix-heater service items. Availability is not claimed on this review page.
Quotation checklist
Provide target assembly, process requirements, board format, installed configuration and destination, required accessories and desired inspection evidence for the proposed Ersa VERSAFLOW FIVE.
FAQ
Common questions for overseas buyers evaluating a Ersa VERSAFLOW FIVE.
01Application
Which production task suits Ersa VERSAFLOW FIVE?
High-mix or high-volume selective soldering where independent processing and program changes affect line utilization. Justify the configuration using board diversity, independent-cycle needs and operator intervention—not maximum output alone.
02Configuration
What should a buyer confirm for Ersa VERSAFLOW FIVE?
VERSAFLEX module, matrix-heater segments, nozzle changer and CAD license scope. Request the exact nameplate and option list.
03Unit evidence
Does this Ersa VERSAFLOW FIVE illustration prove stock?
The Ersa VERSAFLOW FIVE illustration is model-reference imagery, not a dated stock photograph. Serial, location, condition, price and running evidence require separate confirmation.
Export packing proof
Export Packing and Container Loading
The V3 scrolling proof gallery is retained. It describes LCSMT export preparation, not the condition of a particular Ersa VERSAFLOW FIVE unit.
Send Your Ersa VERSAFLOW FIVE Production Requirement
Share target assembly, process requirements, board format, installed configuration and destination and inspection expectations. LCSMT can review whether an actual Ersa VERSAFLOW FIVE configuration is a practical match.
