OverviewErsa VERSAFLOW 4/55 Modular Selective Soldering System
VERSAFLOW 4/55 is an expandable inline selective-soldering platform with configurable fluxing, preheating and solder modules. Obtain the module drawing before comparing offers; similar enclosures can hide different preheat and soldering capacity.
Manufacturer-published model data
Ersa VERSAFLOW 4/55 Technical Specifications
| Pcb width | 63.5–508 mm |
|---|---|
| Pcb length | 127–508 mm |
| Board weight | 5 kg; 15 kg optional |
| Clearance | Top up to 120 mm; bottom up to 60 mm |
| Machine length | From 2,600 mm; configuration dependent |
| Solder modules | Electromagnetic mini-wave pots; up to six pots |
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used Ersa VERSAFLOW 4/55 unit.
Key Features
Configuration Must Be Verified
The Ersa VERSAFLOW 4/55 offer must document Installed fluxer, preheater, VERSAFLEX and pot arrangement; CAD/software scope, line handshakes and representative selective-solder trials.
Buyer decision guide
When Ersa VERSAFLOW 4/55 Makes Sense — and When It May Not
Ersa VERSAFLOW 4/55 selection should begin with production requirements and evidence, not with a model name alone.
Application qualification
Ersa VERSAFLOW 4/55 Acceptance Plan
Read the module drawing
For VERSAFLOW 4/55, mark fluxing, heating and soldering positions on the actual layout. Compare each with the board’s thermal load and inaccessible joints. An expandable platform is not evidence that additional modules or pots are included in an existing used offer.
Evaluate the mixed workload
A VERSAFLOW 4/55 run should include the intended product change and the slowest joint sequence, not only a simple demonstration board. Request the installed CAD and control revision and identify accessories needed for the proposed recipe. Measure the complete line cycle before accepting an output estimate.
Typical Applications
Typical Applications for Ersa VERSAFLOW 4/55
Selective soldering where a documented module layout must accommodate changing assemblies and line output. Obtain the module drawing before comparing offers; similar enclosures can hide different preheat and soldering capacity.
Before quotation
Three Ersa VERSAFLOW 4/55 Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
Which pcb width requirement must the proposed Ersa VERSAFLOW 4/55 demonstrate?
Ersa VERSAFLOW 4/55 buyers should confirm this with actual-machine evidence before quotation.
2
What is included in this Ersa VERSAFLOW 4/55 offer: installed fluxer, preheater, versaflex and pot arrangement?
Ersa VERSAFLOW 4/55 buyers should confirm this with actual-machine evidence before quotation.
3
Can the Ersa VERSAFLOW 4/55 acceptance run document cad/software scope, line handshakes and representative selective-solder trials?
Ersa VERSAFLOW 4/55 buyers should confirm this with actual-machine evidence before quotation.
Running video confirmation
Ersa VERSAFLOW 4/55 Running Video Review
Before shipment, review the relevant power-on, movement, operating state and visible condition for the specific offered unit.
Request a dated operating sequence for the offered Ersa VERSAFLOW 4/55. The preview is a model illustration; the orange control requests evidence, not playback.
- Power-on and visible operating-state confirmation
- Selective soldering where a documented module layout must accommodate changing assemblies and line output.
- Unit-specific condition evidence before export packing
Used-machine inspection
Inspection and Export Preparation for an Actual Ersa VERSAFLOW 4/55
- Nameplate and configurationModel, serial, year, voltage and installed options.
- Machine configurationMechanical, transport, sensing, camera, software and motion condition relevant to the quoted Ersa VERSAFLOW 4/55.
- Transport and softwareConveyor, sensors, program and line-interface evidence where applicable.
- Running and packing proofPower-on evidence, visible operation and export packing records.
Spare Parts
Ersa VERSAFLOW 4/55 Spare Parts Scope
Request a unit-specific Ersa VERSAFLOW 4/55 list for selective nozzles, flux heads, conveyor parts, pumps, heaters and module-specific service parts. Availability is not claimed on this review page.
Quotation checklist
Provide target assembly, process requirements, pcb width, installed configuration and destination, required accessories and desired inspection evidence for the proposed Ersa VERSAFLOW 4/55.
FAQ
Common questions for overseas buyers evaluating a Ersa VERSAFLOW 4/55.
01Application
Which production task suits Ersa VERSAFLOW 4/55?
Selective soldering where a documented module layout must accommodate changing assemblies and line output. Obtain the module drawing before comparing offers; similar enclosures can hide different preheat and soldering capacity.
02Configuration
What should a buyer confirm for Ersa VERSAFLOW 4/55?
Installed fluxer, preheater, VERSAFLEX and pot arrangement. Request the exact nameplate and option list.
03Unit evidence
Does this Ersa VERSAFLOW 4/55 illustration prove stock?

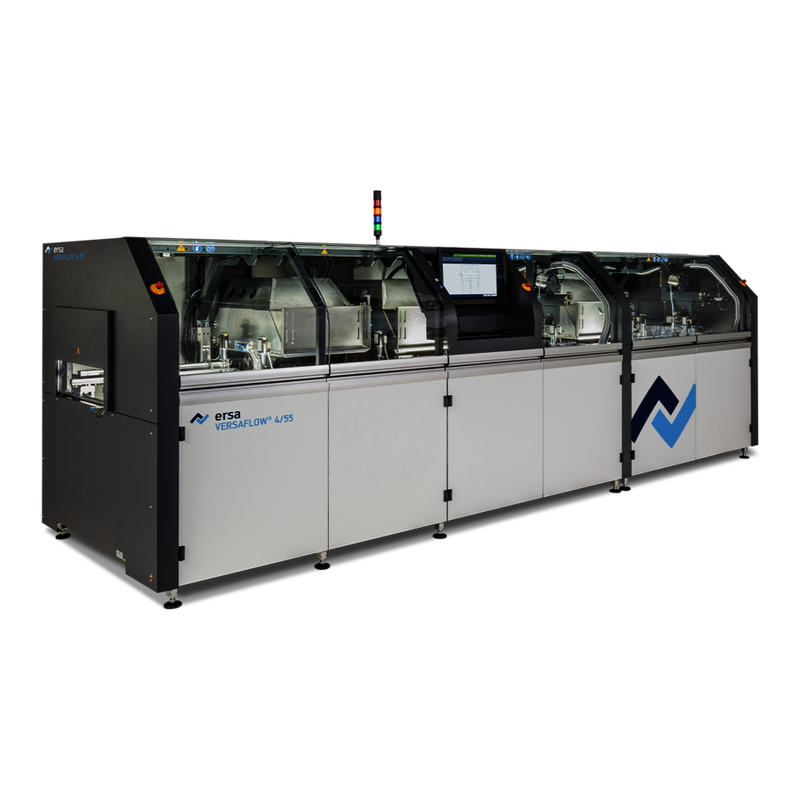

The Ersa VERSAFLOW 4/55 illustration is model-reference imagery, not a dated stock photograph. Serial, location, condition, price and running evidence require separate confirmation.
Export packing proof
Export Packing and Container Loading
The V3 scrolling proof gallery is retained. It describes LCSMT export preparation, not the condition of a particular Ersa VERSAFLOW 4/55 unit.
Send Your Ersa VERSAFLOW 4/55 Production Requirement
Share target assembly, process requirements, pcb width, installed configuration and destination and inspection expectations. LCSMT can review whether an actual Ersa VERSAFLOW 4/55 configuration is a practical match.
