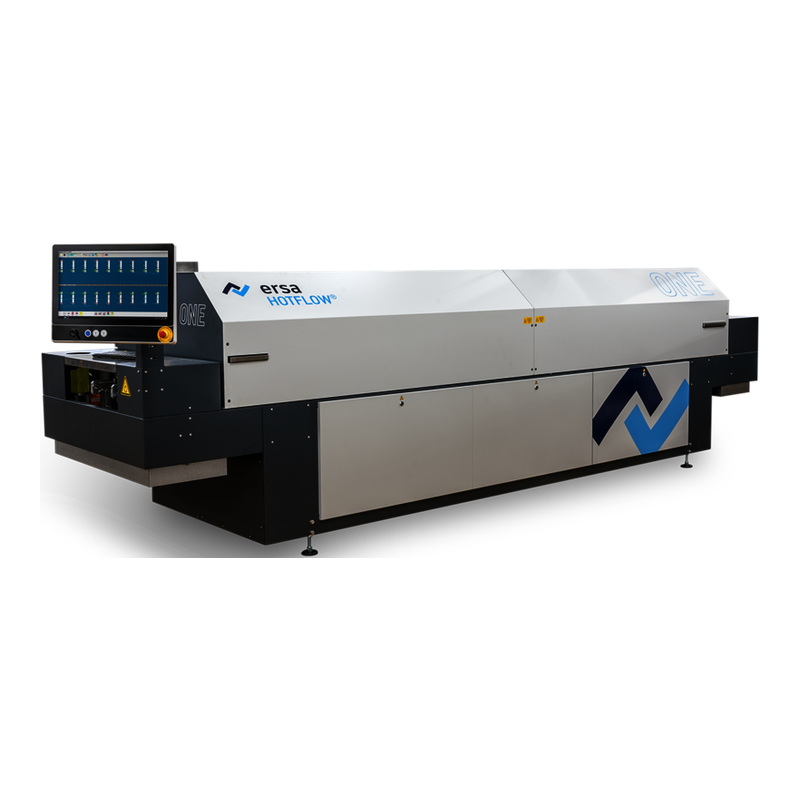

OverviewErsa HOTFLOW ONE Convection Reflow Oven
HOTFLOW ONE is Ersa’s compact entry-level convection reflow platform, offered with 14 or 20 zones. Choose by measured thermal profile and board support; the zone count does not establish a recipe or output guarantee.
Manufacturer-published model data
Ersa HOTFLOW ONE Technical Specifications
| Published zone versions | 14 or 20 zones; identify the quoted version |
|---|---|
| Transport width | 516 mm |
| Dual-track option | Two tracks of 230 mm each |
| Heating and cooling | Top/bottom convection modules with internal cooling |
| Control | Industrial touchscreen PC and ERSASOFT process-data functions |
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used Ersa HOTFLOW ONE unit.
Key Features
Configuration Must Be Verified
The Ersa HOTFLOW ONE offer must document 14/20-zone identity, transport, center support and dual-track option; Measured board profile, cooling, conveyor condition and alarm history.
Buyer decision guide
When Ersa HOTFLOW ONE Makes Sense — and When It May Not
Ersa HOTFLOW ONE selection should begin with production requirements and evidence, not with a model name alone.
Application qualification
Ersa HOTFLOW ONE Acceptance Plan
Profile the difficult board
For HOTFLOW ONE, place measurement points on the thermally demanding components and board regions. Compare the recorded profile with paste and component limits. Identify the actual zone arrangement and conveyor speed; a matching oven name cannot establish that a saved recipe is suitable for a new assembly.
Check transport and service access
A HOTFLOW ONE inspection should include support of the loaded board, chain condition and cooling recovery. Confirm whether the quoted machine has the dual-track option and record each lane’s usable width. Inspect cleaning access and the available process-data export before planning maintenance or traceability.
Typical Applications
Typical Applications for Ersa HOTFLOW ONE
SMT reflow where thermal uniformity, zone separation and transport support must match the populated board. Choose by measured thermal profile and board support; the zone count does not establish a recipe or output guarantee.
Before quotation
Three Ersa HOTFLOW ONE Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
Which published zone versions requirement must the proposed Ersa HOTFLOW ONE demonstrate?
Ersa HOTFLOW ONE buyers should confirm this with actual-machine evidence before quotation.
2
What is included in this Ersa HOTFLOW ONE offer: 14/20-zone identity, transport, center support and dual-track option?
Ersa HOTFLOW ONE buyers should confirm this with actual-machine evidence before quotation.
3
Can the Ersa HOTFLOW ONE acceptance run document measured board profile, cooling, conveyor condition and alarm history?
Ersa HOTFLOW ONE buyers should confirm this with actual-machine evidence before quotation.
Running video confirmation
Ersa HOTFLOW ONE Running Video Review
Before shipment, review the relevant power-on, movement, operating state and visible condition for the specific offered unit.
Request a dated operating sequence for the offered Ersa HOTFLOW ONE. The preview is a model illustration; the orange control requests evidence, not playback.
- Power-on and visible operating-state confirmation
- SMT reflow where thermal uniformity, zone separation and transport support must match the populated board.
- Unit-specific condition evidence before export packing
Used-machine inspection
Inspection and Export Preparation for an Actual Ersa HOTFLOW ONE
- Nameplate and configurationModel, serial, year, voltage and installed options.
- Machine configurationMechanical, transport, sensing, camera, software and motion condition relevant to the quoted Ersa HOTFLOW ONE.
- Transport and softwareConveyor, sensors, program and line-interface evidence where applicable.
- Running and packing proofPower-on evidence, visible operation and export packing records.
Spare Parts
Ersa HOTFLOW ONE Spare Parts Scope
Request a unit-specific Ersa HOTFLOW ONE list for conveyor chains, lubrication parts, heaters, blowers, filters and cooling maintenance items. Availability is not claimed on this review page.
Quotation checklist
Provide target assembly, process requirements, published zone versions, installed configuration and destination, required accessories and desired inspection evidence for the proposed Ersa HOTFLOW ONE.
FAQ
Common questions for overseas buyers evaluating a Ersa HOTFLOW ONE.
01Application
Which production task suits Ersa HOTFLOW ONE?
SMT reflow where thermal uniformity, zone separation and transport support must match the populated board. Choose by measured thermal profile and board support; the zone count does not establish a recipe or output guarantee.
02Configuration
What should a buyer confirm for Ersa HOTFLOW ONE?
14/20-zone identity, transport, center support and dual-track option. Request the exact nameplate and option list.
03Unit evidence
Does this Ersa HOTFLOW ONE illustration prove stock?
The Ersa HOTFLOW ONE illustration is model-reference imagery, not a dated stock photograph. Serial, location, condition, price and running evidence require separate confirmation.
Export packing proof
Export Packing and Container Loading
The V3 scrolling proof gallery is retained. It describes LCSMT export preparation, not the condition of a particular Ersa HOTFLOW ONE unit.
Send Your Ersa HOTFLOW ONE Production Requirement
Share target assembly, process requirements, published zone versions, installed configuration and destination and inspection expectations. LCSMT can review whether an actual Ersa HOTFLOW ONE configuration is a practical match.
