Standard modular inline soldering
VERSAFLOW 3/45
- Board
- 63.5–508 mm wide; 127–508 mm long; options require verification
Home / Ersa Equipment / Ersa VERSAFLOW 3 Family
Model guide · unit evidence required
OverviewErsa VERSAFLOW 3 Family Selective Soldering Platform Family
This VERSAFLOW 3 guide compares the 3/45, 3/66 and 3/66 XL board-handling versions in one place. Use the comparison to choose a version; an XL handling requirement is not satisfied by a standard 3/45 specification.
One family · configuration choices
Compare VERSAFLOW 3 Family versions
Modular inline selective soldering, with the required board envelope determining which family version should be evaluated. Select by the actual board envelope, optical configuration and installation space—not the suffix alone.
XL board handling
VERSAFLOW 3/66
- Board
- Up to 610 × 610 mm
Extra-long assemblies
VERSAFLOW 3/66 XL
- Board
- Up to 3,000 mm long × 610 mm wide
What the versions share
- Selection
- Document the exact suffix and installed options.
- Evidence
- Model reference only; actual unit and process trial required.

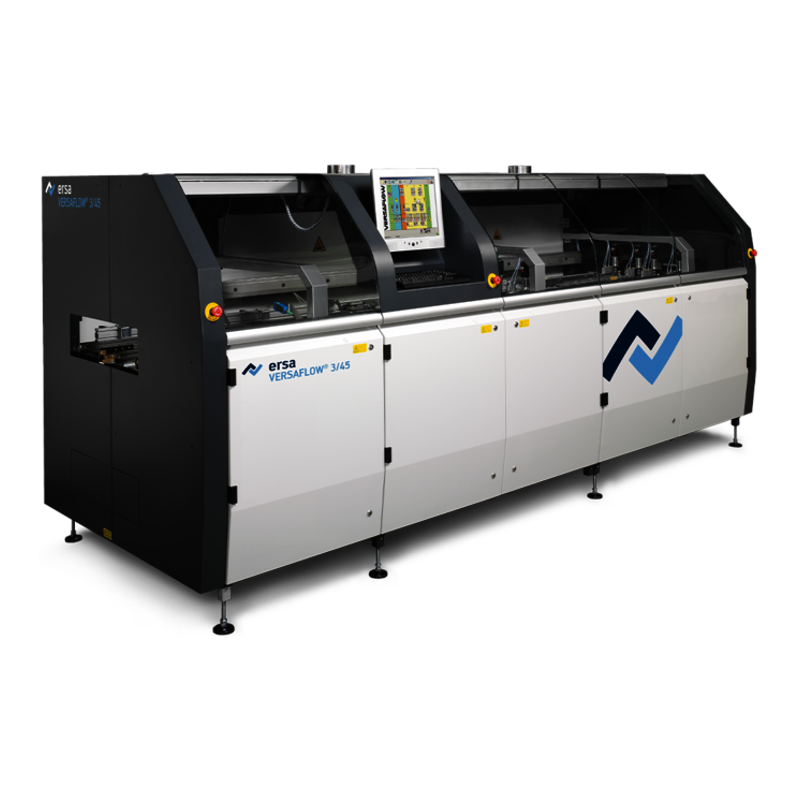

Based on the individually named manufacturer product pages. Figures describe standard model configurations, not stock or an offered unit. Dimensions are listed in the source order and exclude the tower light where stated. The pictured VERSAFLOW-3-45 is the representative family reference, not proof that all versions share its hardware. Request nameplate, configuration and board-trial evidence before selection.
Manufacturer-published model data
Ersa VERSAFLOW 3 Family Technical Specifications
| 3/45 standard board | 63.5–508 mm wide; 127–508 mm long; documented options require confirmation |
|---|---|
| 3/66 board | Up to 610 × 610 mm |
| 3/66 xl board | Up to 3,000 mm long × 610 mm wide |
| Shared process | Separate fluxing, preheating and selective-soldering modules |
| Configuration boundary | Conveyors, pot counts, preheaters and board-weight options differ by version |
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used Ersa VERSAFLOW 3 Family unit.
Key Features
Configuration Must Be Verified
The Ersa VERSAFLOW 3 Family offer must document Exact 3/45, 3/66 or XL identity, conveyor and module drawing; Board support, multi-stage transport, pot arrangement and thermal trial.
Buyer decision guide
When Ersa VERSAFLOW 3 Family Makes Sense — and When It May Not
Ersa VERSAFLOW 3 Family selection should begin with production requirements and evidence, not with a model name alone.
Application qualification
Ersa VERSAFLOW 3 Family Acceptance Plan
Choose the envelope first
For the VERSAFLOW 3 family, supply the complete board and pallet dimensions before comparing module counts. The 3/66 XL long-board role is materially different from a standard 3/45 workload. Verify handling throughout the full transfer path and include populated mass and component clearances in the acceptance plan.
Compare like-for-like process modules
A VERSAFLOW 3 comparison should list the fluxer, preheat and solder module actually fitted to each offer. Family membership does not make pot counts or throughput interchangeable. Ask for the layout and timed board trial so that a lower-priced configuration is not evaluated using another version’s capability.
Typical Applications
Typical Applications for Ersa VERSAFLOW 3 Family
Modular inline selective soldering, with the required board envelope determining which family version should be evaluated. Use the comparison to choose a version; an XL handling requirement is not satisfied by a standard 3/45 specification.
Before quotation
Three Ersa VERSAFLOW 3 Family Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
Which 3/45 standard board requirement must the proposed Ersa VERSAFLOW 3 Family demonstrate?
Ersa VERSAFLOW 3 Family buyers should confirm this with actual-machine evidence before quotation.
2
What is included in this Ersa VERSAFLOW 3 Family offer: exact 3/45, 3/66 or xl identity, conveyor and module drawing?
Ersa VERSAFLOW 3 Family buyers should confirm this with actual-machine evidence before quotation.
3
Can the Ersa VERSAFLOW 3 Family acceptance run document board support, multi-stage transport, pot arrangement and thermal trial?
Ersa VERSAFLOW 3 Family buyers should confirm this with actual-machine evidence before quotation.
Running video confirmation
Ersa VERSAFLOW 3 Family Running Video Review
Before shipment, review the relevant power-on, movement, operating state and visible condition for the specific offered unit.
Request a dated operating sequence for the offered Ersa VERSAFLOW 3 Family. The preview is a model illustration; the orange control requests evidence, not playback.
- Power-on and visible operating-state confirmation
- Modular inline selective soldering, with the required board envelope determining which family version should be evaluated.
- Unit-specific condition evidence before export packing
Used-machine inspection
Inspection and Export Preparation for an Actual Ersa VERSAFLOW 3 Family
- Nameplate and configurationModel, serial, year, voltage and installed options.
- Machine configurationMechanical, transport, sensing, camera, software and motion condition relevant to the quoted Ersa VERSAFLOW 3 Family.
- Transport and softwareConveyor, sensors, program and line-interface evidence where applicable.
- Running and packing proofPower-on evidence, visible operation and export packing records.
Spare Parts
Ersa VERSAFLOW 3 Family Spare Parts Scope
Request a unit-specific Ersa VERSAFLOW 3 Family list for version-specific conveyor parts, selective nozzles, flux heads, solder pots and preheaters. Availability is not claimed on this review page.
Quotation checklist
Provide target assembly, process requirements, 3/45 standard board, installed configuration and destination, required accessories and desired inspection evidence for the proposed Ersa VERSAFLOW 3 Family.
FAQ
Common questions for overseas buyers evaluating a Ersa VERSAFLOW 3 Family.
01Application
Which production task suits Ersa VERSAFLOW 3 Family?
Modular inline selective soldering, with the required board envelope determining which family version should be evaluated. Use the comparison to choose a version; an XL handling requirement is not satisfied by a standard 3/45 specification.
02Configuration
What should a buyer confirm for Ersa VERSAFLOW 3 Family?
Exact 3/45, 3/66 or XL identity, conveyor and module drawing. Request the exact nameplate and option list.
03Unit evidence
Does this Ersa VERSAFLOW 3 Family illustration prove stock?
The Ersa VERSAFLOW 3 Family illustration is model-reference imagery, not a dated stock photograph. Serial, location, condition, price and running evidence require separate confirmation.
Export packing proof
Export Packing and Container Loading
The V3 scrolling proof gallery is retained. It describes LCSMT export preparation, not the condition of a particular Ersa VERSAFLOW 3 Family unit.
Send Your Ersa VERSAFLOW 3 Family Production Requirement
Share target assembly, process requirements, 3/45 standard board, installed configuration and destination and inspection expectations. LCSMT can review whether an actual Ersa VERSAFLOW 3 Family configuration is a practical match.
