OverviewPanasonic NPM-GH Modular placement machine
Panasonic modular placement machine combining catalog throughput with selectable higher-accuracy modes. Shortlist when documented head and feeder configuration can meet high-accuracy production; verify the mode and option set rather than quoting the best catalog figures as unconditional.
Manufacturer-published model data
Panasonic NPM-GH Technical Specifications
| Pcb single lane | L50–510 × W50–590 mm |
|---|---|
| Pcb dual lane | L50–510 × W50–300 mm |
| Maximum catalog speed | 55,500 / 51,000 / 20,000 cph per head, configuration-dependent |
| Catalog accuracy | ±25 / ±15 / ±10 µm/chip (Cpk≥1); ±10 µm with ASF |
| Maximum component supply | 80 types at 4/8 mm tape-width equivalent |
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used Panasonic NPM-GH unit.
Key Features
Configuration Must Be Verified
The Panasonic NPM-GH offer must document FC head family and installed ASF; Accuracy mode and APC options.
Buyer decision guide
When Panasonic NPM-GH Makes Sense — and When It May Not
Panasonic NPM-GH selection should begin with production requirements and evidence, not with a model name alone.
Application qualification
Panasonic NPM-GH Acceptance Plan
Separate accuracy from speed
Build an NPM-GH job matrix by package size and placement tolerance. FC16, FC08 and FC03 head figures describe different configurations; the best speed and best accuracy cannot simply be combined into one promise. Request the actual head identification and accuracy-mode record, including ASF where the ten-micrometre mode is proposed.
Prove the line balance
For NPM-GH qualification, compare the representative placement program with upstream printing and downstream inspection capacity. Record replenishment, recognition rejects and product changeover as part of the observed run. Request the installed APC scope and compatible feeder list rather than assuming that every supported factory function is fitted.
Typical Applications
Typical Applications for Panasonic NPM-GH
SMT placement where small components or placement accuracy dominate the buyer's line-fit decision. Shortlist when documented head and feeder configuration can meet high-accuracy production; verify the mode and option set rather than quoting the best catalog figures as unconditional.
Before quotation
Three Panasonic NPM-GH Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
Which pcb single lane requirement must the proposed Panasonic NPM-GH demonstrate?
Panasonic NPM-GH buyers should confirm this with actual-machine evidence before quotation.
2
What is included in this Panasonic NPM-GH offer: fc head family and installed asf?
Panasonic NPM-GH buyers should confirm this with actual-machine evidence before quotation.
3
Can the Panasonic NPM-GH acceptance run document accuracy mode and apc options?
Panasonic NPM-GH buyers should confirm this with actual-machine evidence before quotation.
Running video confirmation
Panasonic NPM-GH Running Video Review
Before shipment, review the relevant power-on, movement, operating state and visible condition for the specific offered unit.
Request a dated operating sequence for the offered Panasonic NPM-GH. The preview is a model illustration; the orange control requests evidence, not playback.
- Power-on and visible operating-state confirmation
- SMT placement where small components or placement accuracy dominate the buyer's line-fit decision.
- Unit-specific condition evidence before export packing
Used-machine inspection
Inspection and Export Preparation for an Actual Panasonic NPM-GH
- Nameplate and configurationModel, serial, year, voltage and installed options.
- Machine configurationMechanical, transport, sensing, camera, software and motion condition relevant to the quoted Panasonic NPM-GH.
- Transport and softwareConveyor, sensors, program and line-interface evidence where applicable.
- Running and packing proofPower-on evidence, visible operation and export packing records.
Spare Parts
Panasonic NPM-GH Spare Parts Scope
Request a unit-specific Panasonic NPM-GH list for matched head tools, nozzles, feeders, recognition hardware, transport belts and board supports. Availability is not claimed on this review page.
Quotation checklist
Provide target assembly, process requirements, pcb single lane, installed configuration and destination, required accessories and desired inspection evidence for the proposed Panasonic NPM-GH.
FAQ
Common questions for overseas buyers evaluating a Panasonic NPM-GH.
01Application
Which production task suits Panasonic NPM-GH?
SMT placement where small components or placement accuracy dominate the buyer's line-fit decision. Shortlist when documented head and feeder configuration can meet high-accuracy production; verify the mode and option set rather than quoting the best catalog figures as unconditional.
02Configuration
What should a buyer confirm for Panasonic NPM-GH?
FC head family and installed ASF. Request the exact nameplate and option list.
03Unit evidence
Does this Panasonic NPM-GH illustration prove stock?

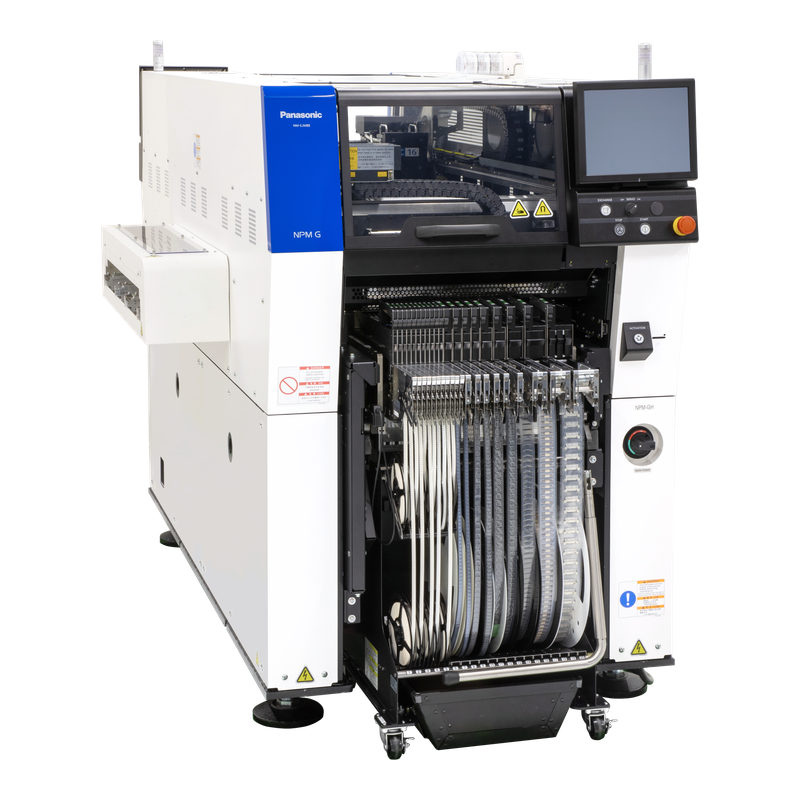

The Panasonic NPM-GH illustration is model-reference imagery, not a dated stock photograph. Serial, location, condition, price and running evidence require separate confirmation.
Export packing proof
Export Packing and Container Loading
The V3 scrolling proof gallery is retained. It describes LCSMT export preparation, not the condition of a particular Panasonic NPM-GH unit.
Send Your Panasonic NPM-GH Production Requirement
Share target assembly, process requirements, pcb single lane, installed configuration and destination and inspection expectations. LCSMT can review whether an actual Panasonic NPM-GH configuration is a practical match.
