OverviewPanasonic NPM-GW Modular placement machine
Panasonic modular mounter designed for a wide range of components and larger PCBs. Compare the offered conveyor width, head type and feeders with large-board or large-component jobs; do not treat brochure maximums as every unit's configuration.
Manufacturer-published model data
Panasonic NPM-GW Technical Specifications
| Pcb single batch | L50–760 × W50–687 mm |
|---|---|
| Maximum catalog speed | 52,000 cph/head |
| Catalog accuracy | ±25 µm/chip (Cpk≥1) |
| Component range | 0201 to L120 × W90 × T40/T45 mm, or L150 × W25 × T40/T45 mm |
| Maximum component supply | 136 types at 4/8 mm tape-width equivalent |
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used Panasonic NPM-GW unit.
Key Features
Configuration Must Be Verified
The Panasonic NPM-GW offer must document Single/dual conveyor and head configuration; ASF/APC options.
Buyer decision guide
When Panasonic NPM-GW Makes Sense — and When It May Not
Panasonic NPM-GW selection should begin with production requirements and evidence, not with a model name alone.
Application qualification
Panasonic NPM-GW Acceptance Plan
Measure the complete large-board job
For NPM-GW selection, supply the PCB drawing, populated-board weight and the largest connector outline. Check transport clearance, support positions and nozzle access together. A board fitting the published envelope can still require a different head, support arrangement or recognition method for a tall component.
Check the component supply mix
An NPM-GW quotation should allocate tape, tray and specialist packages against the actual head and feeder arrangement. Review pickup orientation and underside clearance for long connectors. Use the same program during the acceptance run so that the catalogue speed is not mistaken for the cycle of a mixed large-board assembly.
Typical Applications
Typical Applications for Panasonic NPM-GW
SMT placement where board size, larger/taller components and mixed supply arrangements drive line fit. Compare the offered conveyor width, head type and feeders with large-board or large-component jobs; do not treat brochure maximums as every unit's configuration.
Before quotation
Three Panasonic NPM-GW Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
Which pcb single batch requirement must the proposed Panasonic NPM-GW demonstrate?
Panasonic NPM-GW buyers should confirm this with actual-machine evidence before quotation.
2
What is included in this Panasonic NPM-GW offer: single/dual conveyor and head configuration?
Panasonic NPM-GW buyers should confirm this with actual-machine evidence before quotation.
3
Can the Panasonic NPM-GW acceptance run document asf/apc options?
Panasonic NPM-GW buyers should confirm this with actual-machine evidence before quotation.
Running video confirmation
Panasonic NPM-GW Running Video Review
Before shipment, review the relevant power-on, movement, operating state and visible condition for the specific offered unit.
Request a dated operating sequence for the offered Panasonic NPM-GW. The preview is a model illustration; the orange control requests evidence, not playback.
- Power-on and visible operating-state confirmation
- SMT placement where board size, larger/taller components and mixed supply arrangements drive line fit.
- Unit-specific condition evidence before export packing
Used-machine inspection
Inspection and Export Preparation for an Actual Panasonic NPM-GW
- Nameplate and configurationModel, serial, year, voltage and installed options.
- Machine configurationMechanical, transport, sensing, camera, software and motion condition relevant to the quoted Panasonic NPM-GW.
- Transport and softwareConveyor, sensors, program and line-interface evidence where applicable.
- Running and packing proofPower-on evidence, visible operation and export packing records.
Spare Parts
Panasonic NPM-GW Spare Parts Scope
Request a unit-specific Panasonic NPM-GW list for matched head tools, nozzles, feeders, recognition hardware, transport belts and board supports. Availability is not claimed on this review page.
Quotation checklist
Provide target assembly, process requirements, pcb single batch, installed configuration and destination, required accessories and desired inspection evidence for the proposed Panasonic NPM-GW.
FAQ
Common questions for overseas buyers evaluating a Panasonic NPM-GW.
01Application
Which production task suits Panasonic NPM-GW?
SMT placement where board size, larger/taller components and mixed supply arrangements drive line fit. Compare the offered conveyor width, head type and feeders with large-board or large-component jobs; do not treat brochure maximums as every unit's configuration.
02Configuration
What should a buyer confirm for Panasonic NPM-GW?
Single/dual conveyor and head configuration. Request the exact nameplate and option list.
03Unit evidence
Does this Panasonic NPM-GW illustration prove stock?

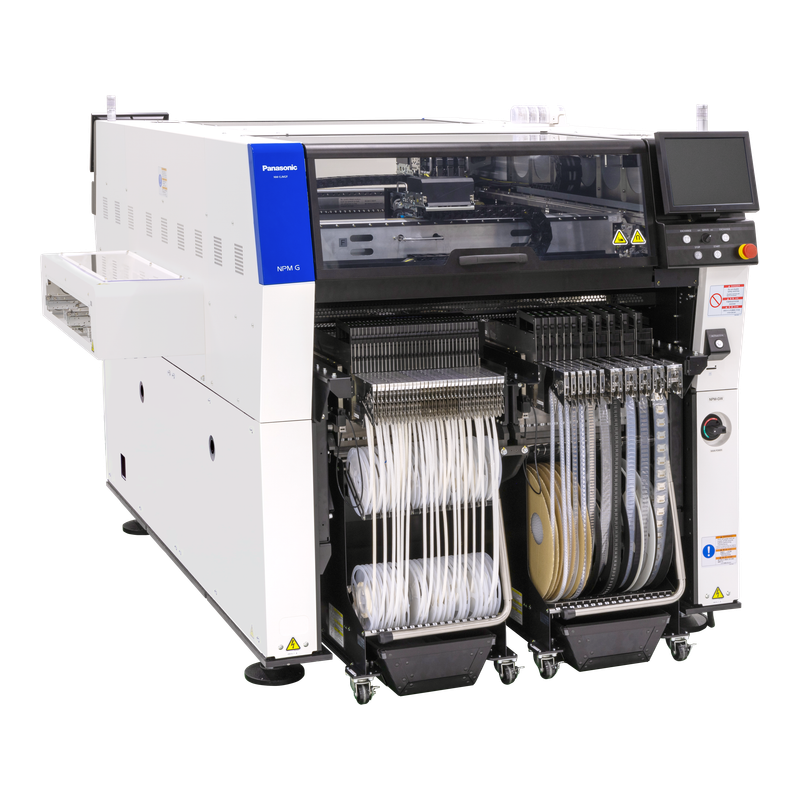

The Panasonic NPM-GW illustration is model-reference imagery, not a dated stock photograph. Serial, location, condition, price and running evidence require separate confirmation.
Export packing proof
Export Packing and Container Loading
The V3 scrolling proof gallery is retained. It describes LCSMT export preparation, not the condition of a particular Panasonic NPM-GW unit.
Send Your Panasonic NPM-GW Production Requirement
Share target assembly, process requirements, pcb single batch, installed configuration and destination and inspection expectations. LCSMT can review whether an actual Panasonic NPM-GW configuration is a practical match.
