OverviewRehm VisionXS Convection Reflow Oven
Rehm VisionXS is a modular convection reflow platform available in air or nitrogen configurations. This guide keeps process lengths and transport arrangements together, while separating VisionXS from VisionXC and the VisionXP+ vacuum platform. Select the VisionXS length and transport from the thermal task and line loading, not a dealer label or a throughput headline. Manufacturer evidence supports convection; a dealer vacuum title does not prove a VisionXS vacuum chamber.
Manufacturer-published model data
Rehm VisionXS Technical Specifications
| Brochure process-zone choices | 2,100 / 2,450 / 3,150 / 3,500 / 3,850 / 4,200 / 4,550 mm; configuration-specific |
|---|---|
| Named brochure example | VXS nitro 3.5, Type 734; not proof of the photographed unit or supplied options |
| Atmosphere selection | Air or nitrogen systems; identify installed gas and oxygen-monitoring equipment |
| Transport choices | Single/double rail, multiple transport and mesh-belt options by configuration |
| Residue management | Brochure describes MRS/MARS collection; additional MARS and pyrolysis are configuration-dependent |
| Cooling options | Multistage cooling; extended and underside cooling require fitted-hardware evidence |
| Control boundary | Identify the installed ViCON release, monitoring and traceability interfaces |
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used Rehm VisionXS unit.
Key Features
Configuration Must Be Verified
The offer must identify VisionXS serial, type code, zone layout, air/nitrogen hardware, transport arrangement, residue collection, cooling and controls; Populated-board thermal traces, conveyor tracking and support, gas readings where fitted, residue service condition and recipe recovery.
Buyer decision guide
When Rehm VisionXS Makes Sense — and When It May Not
Rehm VisionXS selection should begin with production requirements and evidence, not with a model name alone.
Application qualification
Rehm VisionXS Acceptance Plan
Choose the transport before quoting capacity
For VisionXS, retain the assembly envelope, loaded mass, lower-side protrusions, board spacing and required thermal window with the enquiry. State whether separate lanes must run synchronously or need independent speed control. Ask for the offered rail, mesh-belt and centre-support arrangement to be identified and demonstrated. Process-zone length is not the complete cabinet footprint. The bilingual brochure throughput examples assume a 300 mm PCB and 100 mm spacing; they do not establish the rate for an arbitrary assembly or a partially equipped used oven.
Inspect collection and cooling as one process
Inspect residue collectors and accessible filters in a safely isolated state before service work conceals their condition. The brochure describes MRS and MARS collection and distinguishes additional collection and pyrolysis options. Have the supplier identify those actually fitted, then retain heating and cooling settings alongside a loaded thermal trace. For extended or underside cooling, measure the intended exit temperature and check utility requirements from the serial manual. Quick Exhaust describes an atmosphere-change function; do not infer a vacuum-soldering process or a void-reduction guarantee from its name.
Resolve the serial and controls before purchase
Keep the VisionXS nameplate and type code with the actual zone layout, transport drawing and software screen. Distinguish legacy hardware and interface licenses from current ViCON features, and request authorized recipes, calibration records, alarm history and a tested restore procedure. Rehm China and independent Shenzhen Topsmt list the exact platform as enquiry channels only. Topsmt labels it vacuum, but that conflicting headline is not adopted as a manufacturer specification. Neither was contacted, and availability, condition, installation options and support remain unverified until the buyer receives dated unit-specific evidence.
Typical Applications
Typical Applications for Rehm VisionXS
Rehm VisionXS should be evaluated against the buyer’s carry the supported assembly through controlled preheat, peak and cooling regions while circulated process gas transfers heat. qualify the actual atmosphere, convection settings, transport support and exit cooling with a loaded-board thermal trace. The final application fit depends on the evidence for the specific unit.
Before quotation
Three Rehm VisionXS Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
Which brochure process-zone choices requirement must the proposed Rehm VisionXS demonstrate?
Rehm VisionXS buyers should confirm this with actual-machine evidence before quotation.
2
What is included in this Rehm VisionXS offer: visionxs serial, type code, zone layout, air/nitrogen hardware, transport arrangement, residue collection, cooling and controls?
Rehm VisionXS buyers should confirm this with actual-machine evidence before quotation.
3
Can the Rehm VisionXS acceptance run document populated-board thermal traces, conveyor tracking and support, gas readings where fitted, residue service condition and recipe recovery?
Rehm VisionXS buyers should confirm this with actual-machine evidence before quotation.
Running video confirmation
Rehm VisionXS Running Video Review
Before shipment, review the relevant power-on, movement, operating state and visible condition for the specific offered unit.
Request a dated operating sequence of the offered Rehm VisionXS. The model-image control requests evidence, not playback of a recorded video.
- Power-on and visible operating-state confirmation
- Carry the supported assembly through controlled preheat, peak and cooling regions while circulated process gas transfers heat. Qualify the actual atmosphere, convection settings, transport support and exit cooling with a loaded-board thermal trace.
- Unit-specific condition evidence before export packing
Used-machine inspection
Inspection and Export Preparation for an Actual Rehm VisionXS
- Nameplate and configurationModel, serial, year, voltage and installed options.
- Machine configurationMechanical, transport, sensing, camera, software and motion condition relevant to the quoted Rehm VisionXS.
- Transport and softwareConveyor, sensors, program and line-interface evidence where applicable.
- Running and packing proofPower-on evidence, visible operation and export packing records.
Spare Parts
Rehm VisionXS Spare Parts Scope
Request a unit-specific Rehm VisionXS list for serial-correct conveyor chains and supports, filters and collection consumables, fan and heater items, calibrated thermal references and authorized recipe backups. Availability is not claimed on this review page.
Quotation checklist
Provide target assembly, process requirements, brochure process-zone choices, installed configuration and destination, required accessories and desired inspection evidence for the proposed Rehm VisionXS.
FAQ
Common questions for overseas buyers evaluating a Rehm VisionXS.
01Application
Which production task suits Rehm VisionXS?
Carry the supported assembly through controlled preheat, peak and cooling regions while circulated process gas transfers heat. Qualify the actual atmosphere, convection settings, transport support and exit cooling with a loaded-board thermal trace. Select the VisionXS length and transport from the thermal task and line loading, not a dealer label or a throughput headline. Manufacturer evidence supports convection; a dealer vacuum title does not prove a VisionXS vacuum chamber.
02Configuration
What should a buyer confirm for Rehm VisionXS?
VisionXS serial, type code, zone layout, air/nitrogen hardware, transport arrangement, residue collection, cooling and controls. Request the exact nameplate and option list.
03Unit evidence
Does this Rehm VisionXS illustration prove stock?

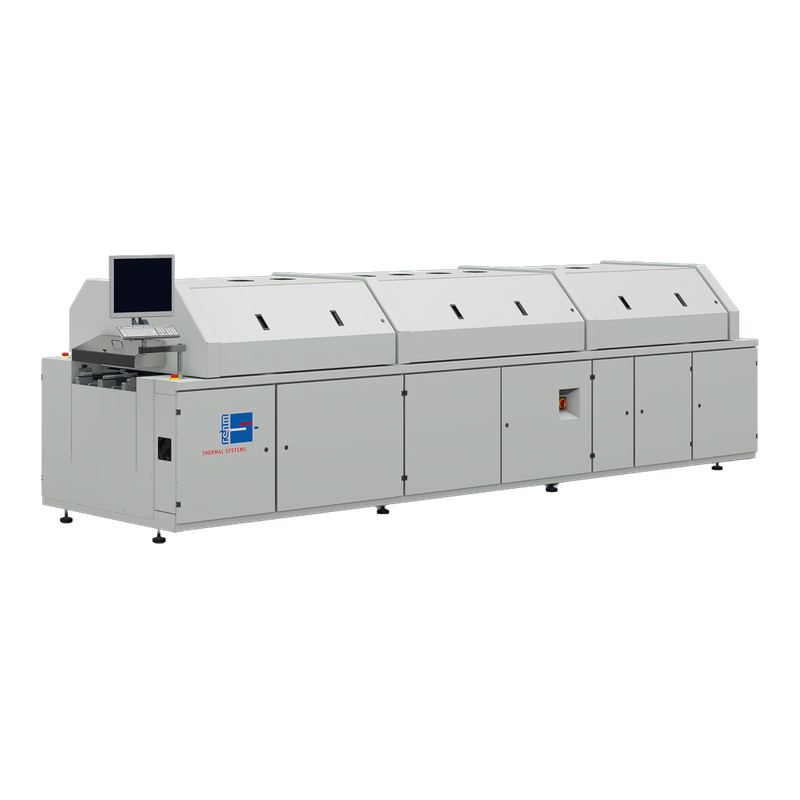

The Rehm VisionXS illustration is model-reference imagery, not a dated stock photograph. Serial, location, condition, price and running evidence require separate confirmation.
Export packing proof
Export Packing and Container Loading
The V3 scrolling proof gallery is retained. It describes LCSMT export preparation, not the condition of a particular Rehm VisionXS unit.
Send Your Rehm VisionXS Production Requirement
Share target assembly, process requirements, brochure process-zone choices, installed configuration and destination and inspection expectations. LCSMT can review whether an actual Rehm VisionXS configuration is a practical match.
