OverviewTRI TR7007 SIII 3D Solder Paste Inspection
The TRI TR7007 SIII is an inline 3D SPI selected for high-throughput paste inspection, with an enhanced mechanical platform and process-feedback capability. Select TR7007 SIII against a complete printed-board inspection cycle, not an area-speed headline. It does not replace post-reflow AOI.
Manufacturer-published model data
TRI TR7007 SIII Technical Specifications
| Published inspection speed | Up to 200 square centimetres per second under manufacturer conditions |
|---|---|
| Process position | 3D solder-paste inspection before placement |
| Programming | TRI Smart Programming |
| Connectivity | Manufacturer describes IPC-CFX, Hermes and closed-loop readiness |
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used TRI TR7007 SIII unit.
Key Features
Configuration Must Be Verified
The offer must identify Imaging configuration, conveyor, recipe, printer interface and software permissions; Printed-deposit volume/height references, false calls and complete transfer cycle.
Buyer decision guide
When TRI TR7007 SIII Makes Sense — and When It May Not
TRI TR7007 SIII selection should begin with production requirements and evidence, not with a model name alone.
Application qualification
TRI TR7007 SIII Acceptance Plan
Convert area speed into your board cycle
Send the TR7007 SIII supplier the stencil layer, board panel and required inspection coverage. Time loading, alignment, measurement, review and unloading together. Include the densely printed and lightly printed regions. The manufacturer area rate is not a finished-board production rate and cannot by itself prove that the printer will avoid waiting.
Use deliberately varied paste deposits
Prepare accepted prints and independently checked examples of missing, shifted, bridged and excess deposits. Retain height and volume results with pad identifiers. Ask for repeat runs without changing thresholds to suit each sample. A colourful paste map demonstrates a view of the process, not automatically the correctness of its pass/fail limits.
Prove feedback ownership
For a requested closed loop, identify the printer endpoint, correction limits and who authorises a process change. Demonstrate a rejected panel and a controlled communication interruption. Keep timestamped records and final settings. TR7007 SIII interface readiness does not mean that every printer, MES or software licence is included with the offered unit.
Typical Applications
Typical Applications for TRI TR7007 SIII
TRI TR7007 SIII should be evaluated against the buyer’s inspecting printed solder deposits between stencil printing and component placement, and supplying agreed process data to the line. The final application fit depends on the evidence for the specific unit.
Before quotation
Three TRI TR7007 SIII Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
Which published inspection speed requirement must the proposed TRI TR7007 SIII demonstrate?
TRI TR7007 SIII buyers should confirm this with actual-machine evidence before quotation.
2
What is included in this TRI TR7007 SIII offer: imaging configuration, conveyor, recipe, printer interface and software permissions?
TRI TR7007 SIII buyers should confirm this with actual-machine evidence before quotation.
3
Can the TRI TR7007 SIII acceptance run document printed-deposit volume/height references, false calls and complete transfer cycle?
TRI TR7007 SIII buyers should confirm this with actual-machine evidence before quotation.
Running video confirmation
TRI TR7007 SIII Running Video Review
Before shipment, review the relevant power-on, movement, operating state and visible condition for the specific offered unit.
Request an operating sequence of the offered TRI TR7007 SIII. This model-image control requests evidence; it does not play a recorded video.
- Power-on and visible operating-state confirmation
- Inspecting printed solder deposits between stencil printing and component placement, and supplying agreed process data to the line.
- Unit-specific condition evidence before export packing
Used-machine inspection
Inspection and Export Preparation for an Actual TRI TR7007 SIII
- Nameplate and configurationModel, serial, year, voltage and installed options.
- Machine configurationMechanical, transport, sensing, camera, software and motion condition relevant to the quoted TRI TR7007 SIII.
- Transport and softwareConveyor, sensors, program and line-interface evidence where applicable.
- Running and packing proofPower-on evidence, visible operation and export packing records.
Spare Parts
TRI TR7007 SIII Spare Parts Scope
Request a unit-specific TRI TR7007 SIII list for conveyor belts, board supports, calibration references, imaging components and process-interface software. Availability is not claimed on this review page.
Quotation checklist
Provide target assembly, process requirements, published inspection speed, installed configuration and destination, required accessories and desired inspection evidence for the proposed TRI TR7007 SIII.
FAQ
Common questions for overseas buyers evaluating a TRI TR7007 SIII.
01Application
Which production task suits TRI TR7007 SIII?
Inspecting printed solder deposits between stencil printing and component placement, and supplying agreed process data to the line. Select TR7007 SIII against a complete printed-board inspection cycle, not an area-speed headline. It does not replace post-reflow AOI.
02Configuration
What should a buyer confirm for TRI TR7007 SIII?
Imaging configuration, conveyor, recipe, printer interface and software permissions. Request the exact nameplate and option list.
03Unit evidence

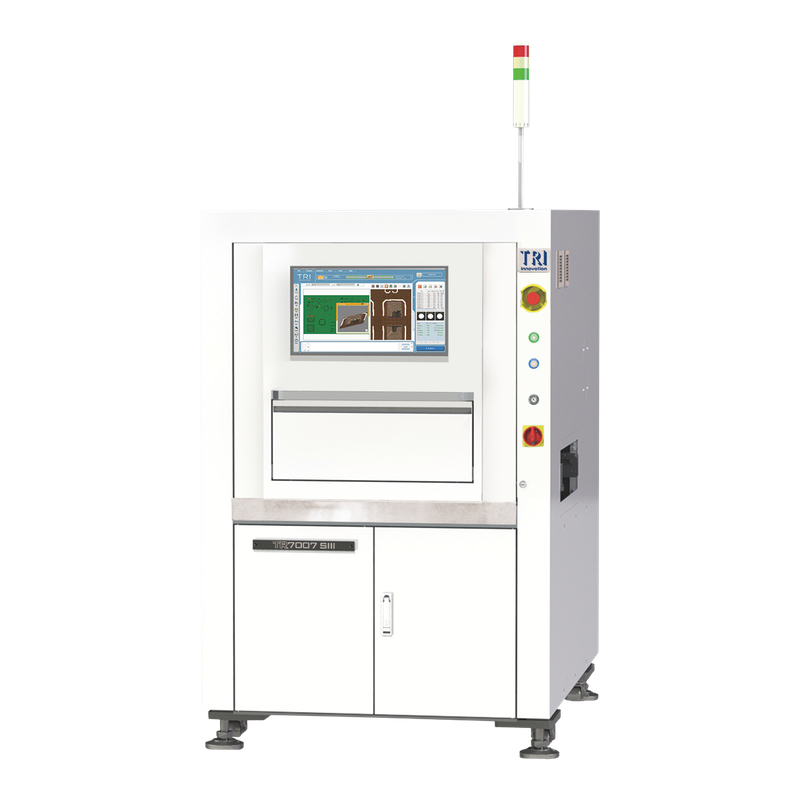

Does this TRI TR7007 SIII illustration prove stock?
The TRI TR7007 SIII illustration is model-reference imagery, not a dated stock photograph. Serial, location, condition, price and running evidence require separate confirmation.
Export packing proof
Export Packing and Container Loading
The V3 scrolling proof gallery is retained. It describes LCSMT export preparation, not the condition of a particular TRI TR7007 SIII unit.
Send Your TRI TR7007 SIII Production Requirement
Share target assembly, process requirements, published inspection speed, installed configuration and destination and inspection expectations. LCSMT can review whether an actual TRI TR7007 SIII configuration is a practical match.
