OverviewTRI TR7500QE Series Multi-Camera 3D AOI
The TRI TR7500QE Series uses top and side views for visible assembly and joint inspection; QE and QE Plus are compared within one family page. Select the QE generation using the actual lead geometry and optics. Side views cannot prove an entirely hidden BGA joint.
One family · configuration choices
Compare TR7500QE Series versions
Post-placement or solder-joint optical inspection where lateral views help expose otherwise obscured leads and bridges. Select by the actual board envelope, optical configuration and installation space—not the suffix alone.
Next-generation QE
TR7500QE Plus
- Selection
- Identify upgraded mechanical platform and installed smart/AI software
What the versions share
- Process
- Multi-Camera 3D AOI
- Purchase boundary
- Identify the actual version, options and application trial; no stock is asserted.
Manufacturer model descriptions checked 4 October 2026; limits and options stay assigned to their stated version. Figures describe standard model configurations, not stock or an offered unit. Dimensions are listed in the source order and exclude the tower light where stated. The representative TR7500QE image does not prove another version or the condition of an offered unit. Request nameplate, configuration and board-trial evidence before selection.
Manufacturer-published model data
TRI TR7500QE Series Technical Specifications
| Qe cameras | Four side-view cameras plus top imaging |
|---|---|
| Qe 3d method | Four-way adaptive digital fringe projection |
| Qe height claim | Up to 40 mm 3D range; verify the required configuration |
| Qe plus context | Next-generation multi-camera 3D platform with smart programming |
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used TRI TR7500QE Series unit.
Key Features
Configuration Must Be Verified
The offer must identify Exact QE or QE Plus generation, camera/projector set, height option and licenses; Obscured-lead sample, side-view coverage, known-defect review and measured board cycle.
Buyer decision guide
When TRI TR7500QE Series Makes Sense — and When It May Not
TRI TR7500QE Series selection should begin with production requirements and evidence, not with a model name alone.
Application qualification
TRI TR7500QE Series Acceptance Plan
Ask which side view proves the defect
Mark the inner-row bridges and lifted leads on a populated TR7500QE sample. Request each relevant view rather than only a top image or overall defect count. Keep the physical defect evidence beside the machine call. A five-camera configuration can improve visibility without turning optical inspection into X-ray coverage of hidden joints.
Compare QE and Plus on the same program
Identify the offered generation and installed processing hardware, then run the same labelled board set with the agreed acceptance limits. Review programming effort, false calls and total cycle time separately. Do not combine the original QE height range with an unverified Plus software option into a single promised configuration.
Separate learned decisions from metrology
Request the model library and review workflow used during acceptance. If AI-based classification is offered, ask which functions are licensed and how a changed component package is handled. Retain dimensional references and repeat scans. For TR7500QE procurement, calibration support and exportable recipe data matter as much as a successful one-board demonstration.
Typical Applications
Typical Applications for TRI TR7500QE Series
TRI TR7500QE Series should be evaluated against the buyer’s post-placement or solder-joint optical inspection where lateral views help expose otherwise obscured leads and bridges. The final application fit depends on the evidence for the specific unit.
Before quotation
Three TRI TR7500QE Series Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
Which qe cameras requirement must the proposed TRI TR7500QE Series demonstrate?
TRI TR7500QE Series buyers should confirm this with actual-machine evidence before quotation.
2
What is included in this TRI TR7500QE Series offer: exact qe or qe plus generation, camera/projector set, height option and licenses?
TRI TR7500QE Series buyers should confirm this with actual-machine evidence before quotation.
3
Can the TRI TR7500QE Series acceptance run document obscured-lead sample, side-view coverage, known-defect review and measured board cycle?
TRI TR7500QE Series buyers should confirm this with actual-machine evidence before quotation.
Running video confirmation
TRI TR7500QE Series Running Video Review
Before shipment, review the relevant power-on, movement, operating state and visible condition for the specific offered unit.
Request an operating sequence of the offered TRI TR7500QE Series. This model-image control requests evidence; it does not play a recorded video.
- Power-on and visible operating-state confirmation
- Post-placement or solder-joint optical inspection where lateral views help expose otherwise obscured leads and bridges.
- Unit-specific condition evidence before export packing
Used-machine inspection
Inspection and Export Preparation for an Actual TRI TR7500QE Series
- Nameplate and configurationModel, serial, year, voltage and installed options.
- Machine configurationMechanical, transport, sensing, camera, software and motion condition relevant to the quoted TRI TR7500QE Series.
- Transport and softwareConveyor, sensors, program and line-interface evidence where applicable.
- Running and packing proofPower-on evidence, visible operation and export packing records.
Spare Parts
TRI TR7500QE Series Spare Parts Scope
Request a unit-specific TRI TR7500QE Series list for camera/projector components, board support tooling, calibration artefacts and licensed review software. Availability is not claimed on this review page.
Quotation checklist
Provide target assembly, process requirements, qe cameras, installed configuration and destination, required accessories and desired inspection evidence for the proposed TRI TR7500QE Series.
FAQ
Common questions for overseas buyers evaluating a TRI TR7500QE Series.
01Application
Which production task suits TRI TR7500QE Series?
Post-placement or solder-joint optical inspection where lateral views help expose otherwise obscured leads and bridges. Select the QE generation using the actual lead geometry and optics. Side views cannot prove an entirely hidden BGA joint.
02Configuration
What should a buyer confirm for TRI TR7500QE Series?
Exact QE or QE Plus generation, camera/projector set, height option and licenses. Request the exact nameplate and option list.
03Unit evidence
Does this TRI TR7500QE Series illustration prove stock?

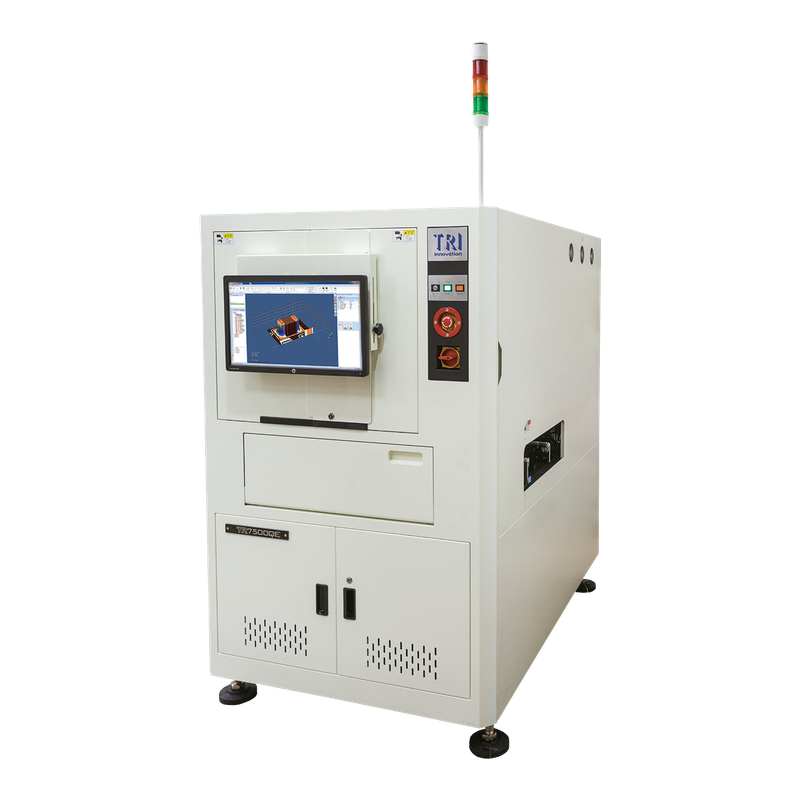

The TRI TR7500QE Series illustration is model-reference imagery, not a dated stock photograph. Serial, location, condition, price and running evidence require separate confirmation.
Export packing proof
Export Packing and Container Loading
The V3 scrolling proof gallery is retained. It describes LCSMT export preparation, not the condition of a particular TRI TR7500QE Series unit.
Send Your TRI TR7500QE Series Production Requirement
Share target assembly, process requirements, qe cameras, installed configuration and destination and inspection expectations. LCSMT can review whether an actual TRI TR7500QE Series configuration is a practical match.
