OverviewTRI TR7500 SIII Ultra Multi-Angle AOI
The TRI TR7500 SIII Ultra is a multi-angle AOI platform whose AI, metrology and laser-profile functions are explicitly optional, unlike assuming a fully fitted fringe-based QE. Specify the required 2D/laser/measurement scope before comparing Ultra with QE. Optional 3D profiling must not be presented as standard hardware.
Manufacturer-published model data
TRI TR7500 SIII Ultra Technical Specifications
| Camera layout | One top camera and four side-view cameras |
|---|---|
| Base construction | Cast-iron platform described in the launch announcement |
| Standard board load | 3 kg; 5 kg and 12 kg variants/options are described by TRI |
| Optional functions | AI, AOM metrology and laser 3D profiling require confirmation |
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used TRI TR7500 SIII Ultra unit.
Key Features
Configuration Must Be Verified
The offer must identify Camera arrangement, laser/AOM/AI hardware and licenses, exact load variant; Known obscured defects, loaded-panel transfer and repeat measurements if metrology is required.
Buyer decision guide
When TRI TR7500 SIII Ultra Makes Sense — and When It May Not
TRI TR7500 SIII Ultra selection should begin with production requirements and evidence, not with a model name alone.
Application qualification
TRI TR7500 SIII Ultra Acceptance Plan
Write the option list before the quotation
For TR7500 SIII Ultra, state whether the application needs multi-angle viewing alone, laser height profiles, metrology or AI classification. Ask for hardware identification and licence screenshots for each quoted function. A model name or side-view photograph cannot establish that all of the optional inspection tools are supplied.
Match panel mass to the offered variant
Weigh the populated panel and include fixtures and support requirements. Ask the supplier to identify the standard or optional load arrangement and demonstrate transfer with that mass. Review underside protrusions and clearance separately. The manufacturer lists several load capacities; the largest value is not a universal allowance on every Ultra unit.
Retain the evidence behind an AI call
Run a labelled set including acceptable assemblies and deliberately difficult visible defects. Keep the image view, measurement if fitted, operator decision and final recipe revision. Test one new package or lighting change without silently redefining the acceptance criteria. TR7500 SIII Ultra software assistance should support a traceable decision, not replace physical defect confirmation.
Typical Applications
Typical Applications for TRI TR7500 SIII Ultra
TRI TR7500 SIII Ultra should be evaluated against the buyer’s checking visible components and joints with multiple camera angles, including inner-row bridges and obscured lifted leads. The final application fit depends on the evidence for the specific unit.
Before quotation
Three TRI TR7500 SIII Ultra Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
Which camera layout requirement must the proposed TRI TR7500 SIII Ultra demonstrate?
TRI TR7500 SIII Ultra buyers should confirm this with actual-machine evidence before quotation.
2
What is included in this TRI TR7500 SIII Ultra offer: camera arrangement, laser/aom/ai hardware and licenses, exact load variant?
TRI TR7500 SIII Ultra buyers should confirm this with actual-machine evidence before quotation.
3
Can the TRI TR7500 SIII Ultra acceptance run document known obscured defects, loaded-panel transfer and repeat measurements if metrology is required?
TRI TR7500 SIII Ultra buyers should confirm this with actual-machine evidence before quotation.
Running video confirmation
TRI TR7500 SIII Ultra Running Video Review
Before shipment, review the relevant power-on, movement, operating state and visible condition for the specific offered unit.
Request an operating sequence of the offered TRI TR7500 SIII Ultra. This model-image control requests evidence; it does not play a recorded video.
- Power-on and visible operating-state confirmation
- Checking visible components and joints with multiple camera angles, including inner-row bridges and obscured lifted leads.
- Unit-specific condition evidence before export packing
Used-machine inspection
Inspection and Export Preparation for an Actual TRI TR7500 SIII Ultra
- Nameplate and configurationModel, serial, year, voltage and installed options.
- Machine configurationMechanical, transport, sensing, camera, software and motion condition relevant to the quoted TRI TR7500 SIII Ultra.
- Transport and softwareConveyor, sensors, program and line-interface evidence where applicable.
- Running and packing proofPower-on evidence, visible operation and export packing records.
Spare Parts
TRI TR7500 SIII Ultra Spare Parts Scope
Request a unit-specific TRI TR7500 SIII Ultra list for camera modules, board supports, calibration tools, optional laser hardware and licensed analysis software. Availability is not claimed on this review page.
Quotation checklist
Provide target assembly, process requirements, camera layout, installed configuration and destination, required accessories and desired inspection evidence for the proposed TRI TR7500 SIII Ultra.
FAQ
Common questions for overseas buyers evaluating a TRI TR7500 SIII Ultra.
01Application
Which production task suits TRI TR7500 SIII Ultra?
Checking visible components and joints with multiple camera angles, including inner-row bridges and obscured lifted leads. Specify the required 2D/laser/measurement scope before comparing Ultra with QE. Optional 3D profiling must not be presented as standard hardware.
02Configuration
What should a buyer confirm for TRI TR7500 SIII Ultra?
Camera arrangement, laser/AOM/AI hardware and licenses, exact load variant. Request the exact nameplate and option list.
03Unit evidence

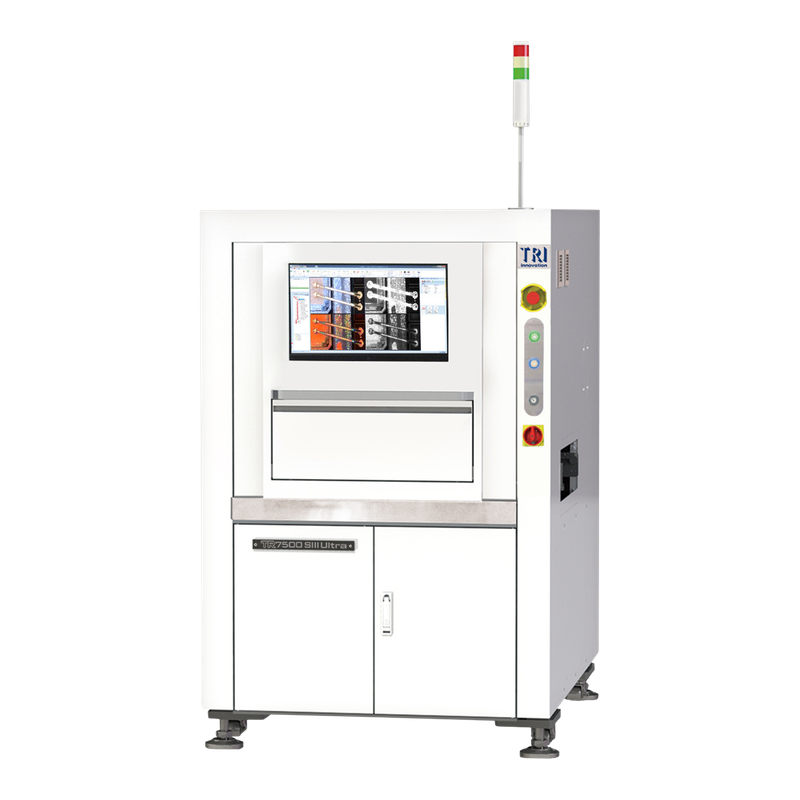

Does this TRI TR7500 SIII Ultra illustration prove stock?
The TRI TR7500 SIII Ultra illustration is model-reference imagery, not a dated stock photograph. Serial, location, condition, price and running evidence require separate confirmation.
Export packing proof
Export Packing and Container Loading
The V3 scrolling proof gallery is retained. It describes LCSMT export preparation, not the condition of a particular TRI TR7500 SIII Ultra unit.
Send Your TRI TR7500 SIII Ultra Production Requirement
Share target assembly, process requirements, camera layout, installed configuration and destination and inspection expectations. LCSMT can review whether an actual TRI TR7500 SIII Ultra configuration is a practical match.
