OverviewTRI TR7700 CI Series Conformal Coating Inspection
The TRI TR7700 CI Series inspects conformal coating with UV-sensitive illumination. SII Plus CI and SIII Ultra CI are compared here, separately from ordinary TR7700 assembly AOI. Choose the CI optics using your coating chemistry and fluorescence. Do not assume that an assembly-AOI unit has UV illumination or thickness hardware.
One family · configuration choices
Compare TR7700 CI Series versions
Checking coating coverage, boundaries and visible defects after coating; thickness measurement requires the specified sensor option. Select by the actual board envelope, optical configuration and installation space—not the suffix alone.
Expanded coating tasks
TR7700 SIII Ultra CI
- Light
- RGB+W+UV
- Thickness
- Optional sensor; not asserted as installed
What the versions share
- Process
- Conformal Coating Inspection
- Purchase boundary
- Identify the actual version, options and application trial; no stock is asserted.

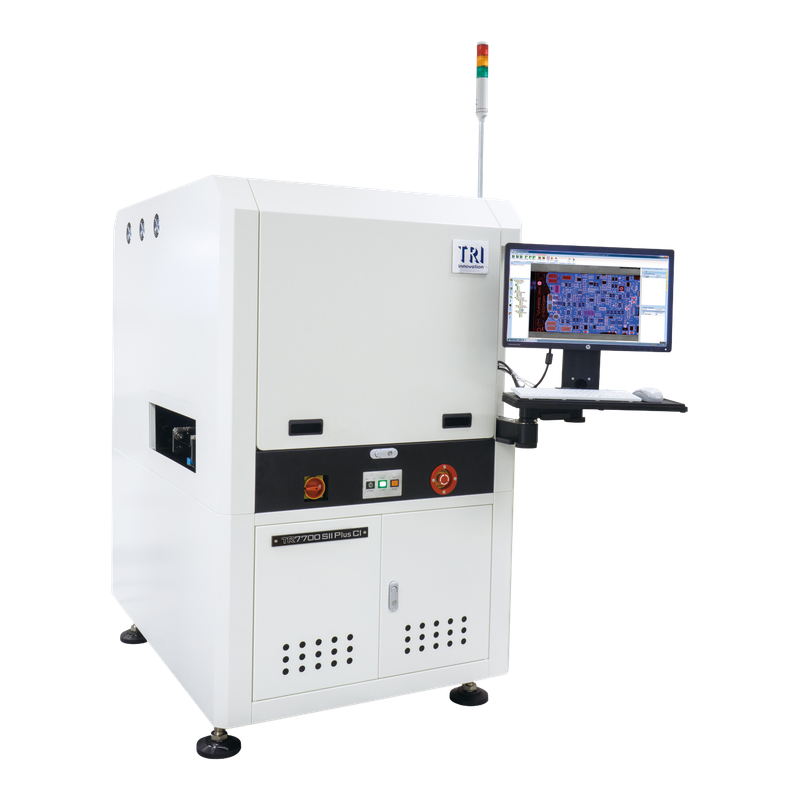

Manufacturer model descriptions checked 4 October 2026; limits and options stay assigned to their stated version. Figures describe standard model configurations, not stock or an offered unit. Dimensions are listed in the source order and exclude the tower light where stated. The representative TR7700-SII-Plus-CI image does not prove another version or the condition of an offered unit. Request nameplate, configuration and board-trial evidence before selection.
Manufacturer-published model data
TRI TR7700 CI Series Technical Specifications
| Sii plus ci imaging | 4-megapixel top camera; R/W and UV illumination |
|---|---|
| Factory-set resolution | 10 or 15 micrometres |
| Sii plus ci board size | 500 × 460 mm |
| Siii ultra ci lighting | RGB+W+UV |
| Siii thickness option | 35–750 micrometres with the optional measurement arrangement |
Manufacturer model data · Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used TRI TR7700 CI Series unit.
Key Features
Configuration Must Be Verified
The offer must identify Exact CI generation, UV lights, thickness/laser options and coating recipe; Accepted/rejected coating samples, keep-out boundaries, reference thickness if claimed and review results.
Buyer decision guide
When TRI TR7700 CI Series Makes Sense — and When It May Not
TRI TR7700 CI Series selection should begin with production requirements and evidence, not with a model name alone.
Application qualification
TRI TR7700 CI Series Acceptance Plan
Use your coating chemistry and keep-outs
For TR7700 CI acceptance, include the actual coating, cure stage and fluorescence behavior. Mark connectors, test pads and other exclusion zones on the drawing. Supply known coverage, spill, bubble and contamination examples. A bright UV photograph is not by itself proof that the correct boundary or minimum coverage has been enforced.
Do not confuse coverage with thickness
SII Plus CI coverage imaging and an Ultra thickness option answer different questions. Identify the exact sensor and calibration reference if the quotation includes a thickness claim. Compare measurements with an independently established reference at the agreed locations. Never infer that the optional sensor is present from the cabinet, model family or RGB lighting description.
Challenge the coated-board review recipe
Inspect boards with variable texture, shadowing and legitimate uncoated areas. Keep both rejected and accepted-region decisions, then repeat after a controlled recipe reload. Verify software, UV-light service condition and any flux/glue task separately. The CI suffix denotes a coating workflow and must not be silently interchanged with standard TR7700 AOI.
